Warning Light Bulbs
Warning Light Bulb, Indicator Light Bulb, Illumination Light Bulb, A/T Indicator Light BulbREMOVAL 1.
Disconnect the battery ground cable.
2.

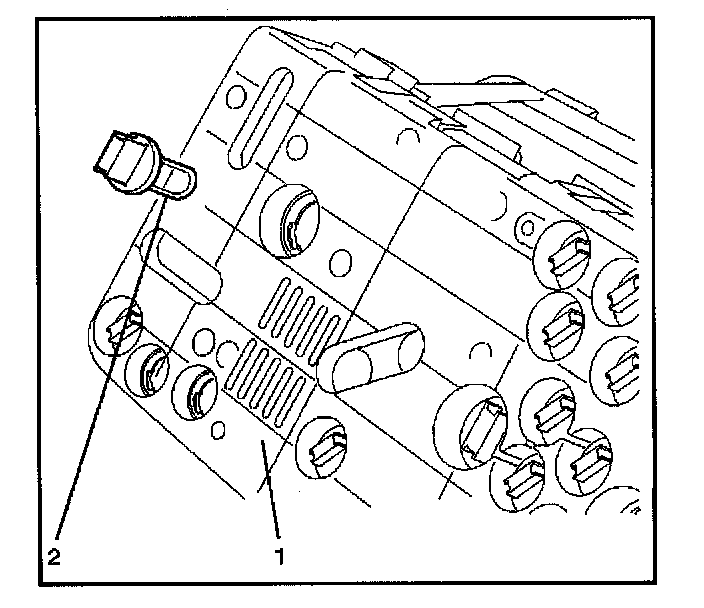

Remove the meter assembly (1). Refer to Meter Assembly removal steps.
3.
Hold the bulb socket by hand and rotate it counterclockwise to remove the socket & bulb (2) from the meter body.
INSTALLATIONTo install, follow the removal steps in the reverse order.
