Front Bumper: Service and Repair

Front Bumper

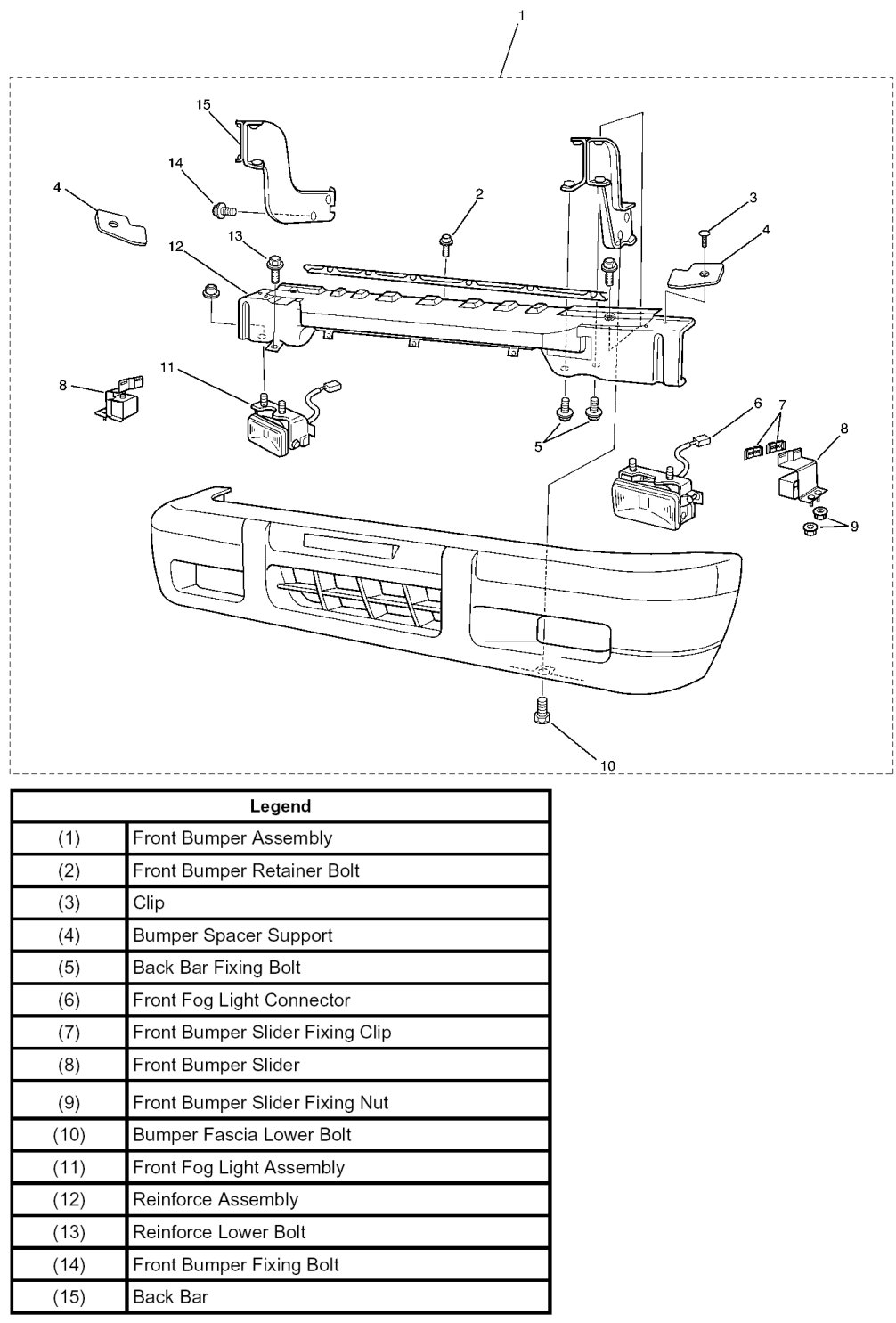

Parts Location:

Removal

1. Remove front fog light connector.
2. Remove front bumper assembly fixing bolt.

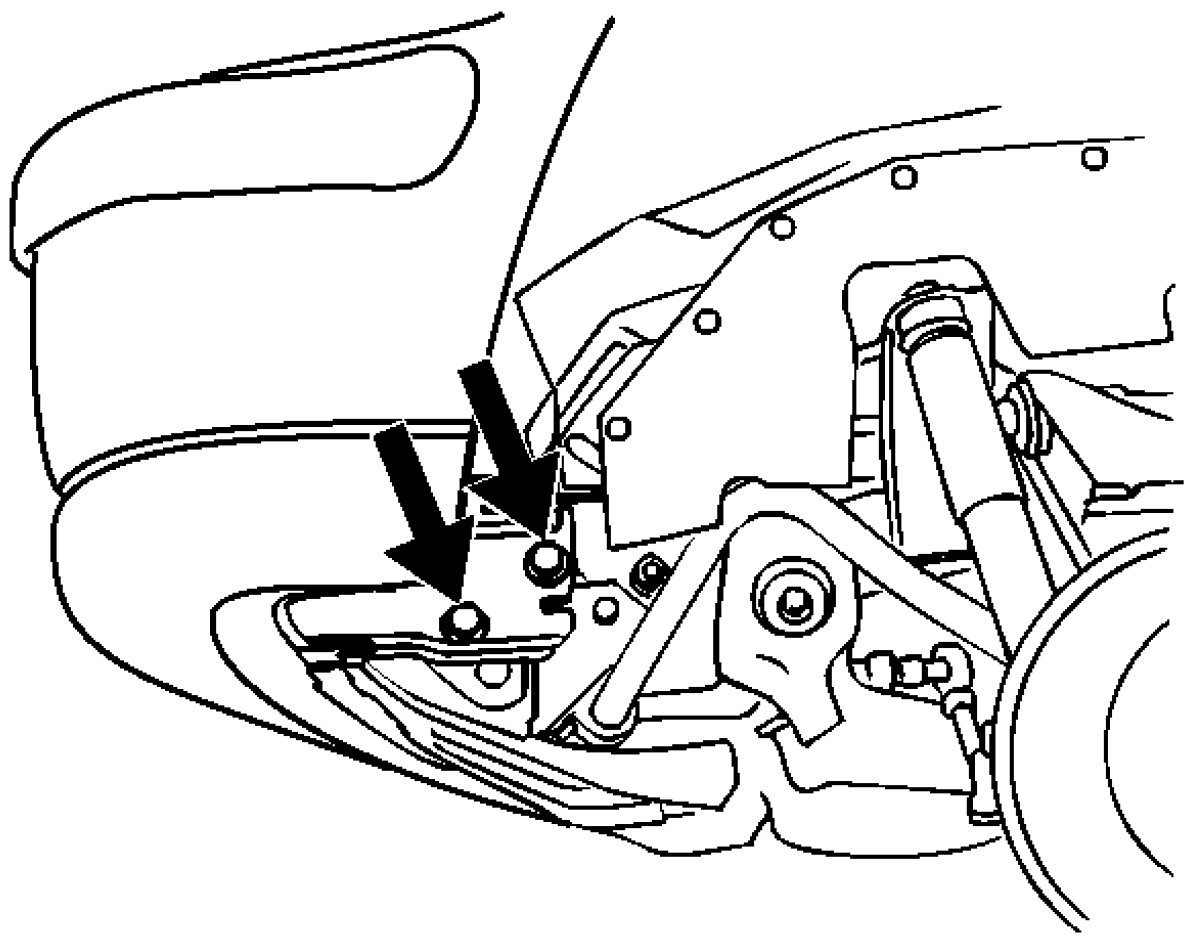

- Remove the two bolts from both sides of the front bumper.







3. Remove front bumper assembly.
4. Remove bumper fascia lower bolts.
5. Remove front bumper retainer.
6. Remove reinforce lower bolts.
- Loosen the five bolts and release claws.

7. Remove reinforce assembly.
8. Remove backbar fixing bolts.
- Remove the four bolts at each backbar.

9. Remove front fog light assembly.

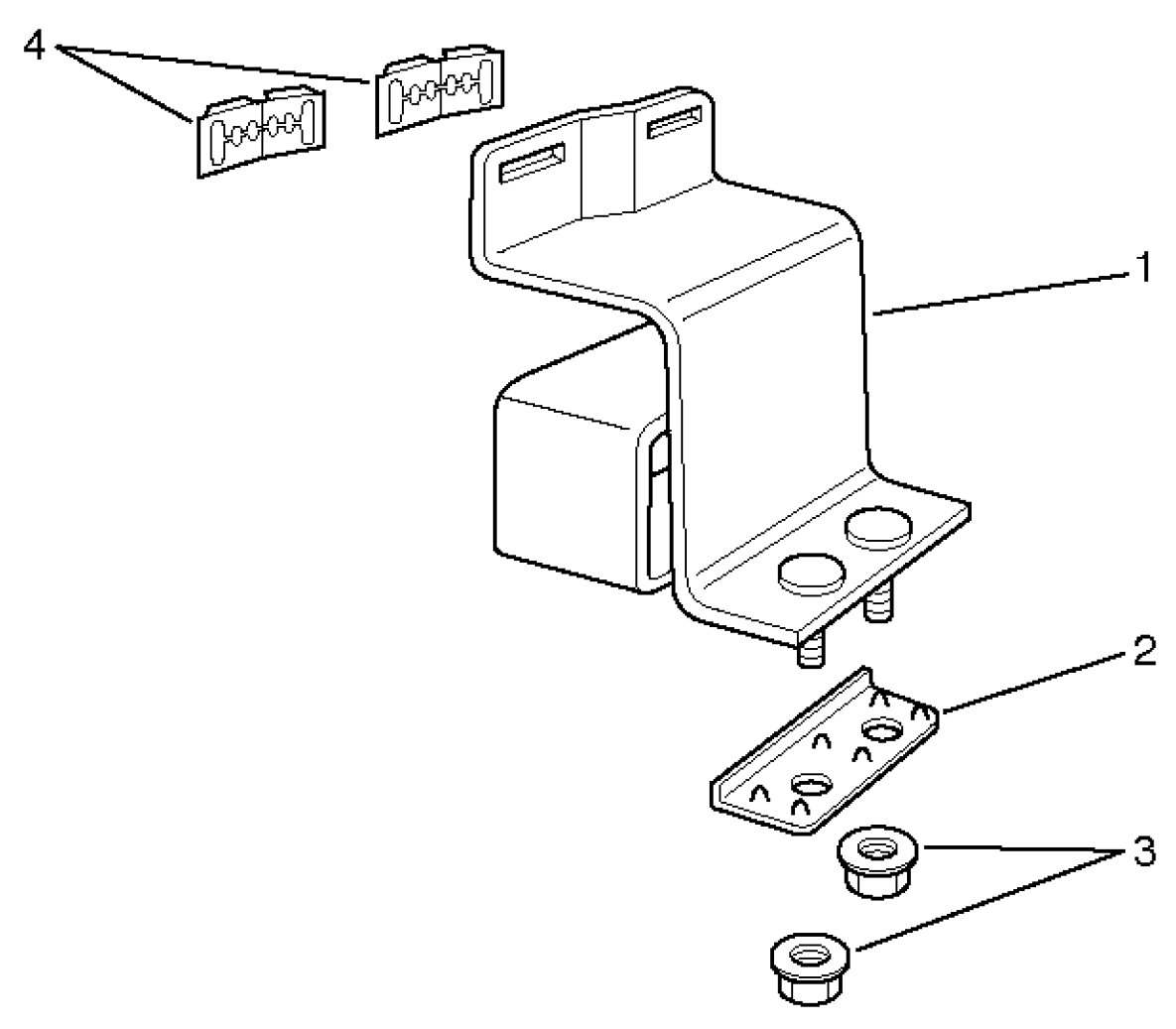

10. Remove the front bumper slider(1).
- Remove the two clips(4) and the two nuts(3), and release the claw from the washer(2).







Installation

To install, follow the removal steps in reverse order noting the following points:
- Tighten the front bumper assembly fixing bolts to the specified torque.
Torque: 132 N.m (98 lb ft)
