Rope Hook Set

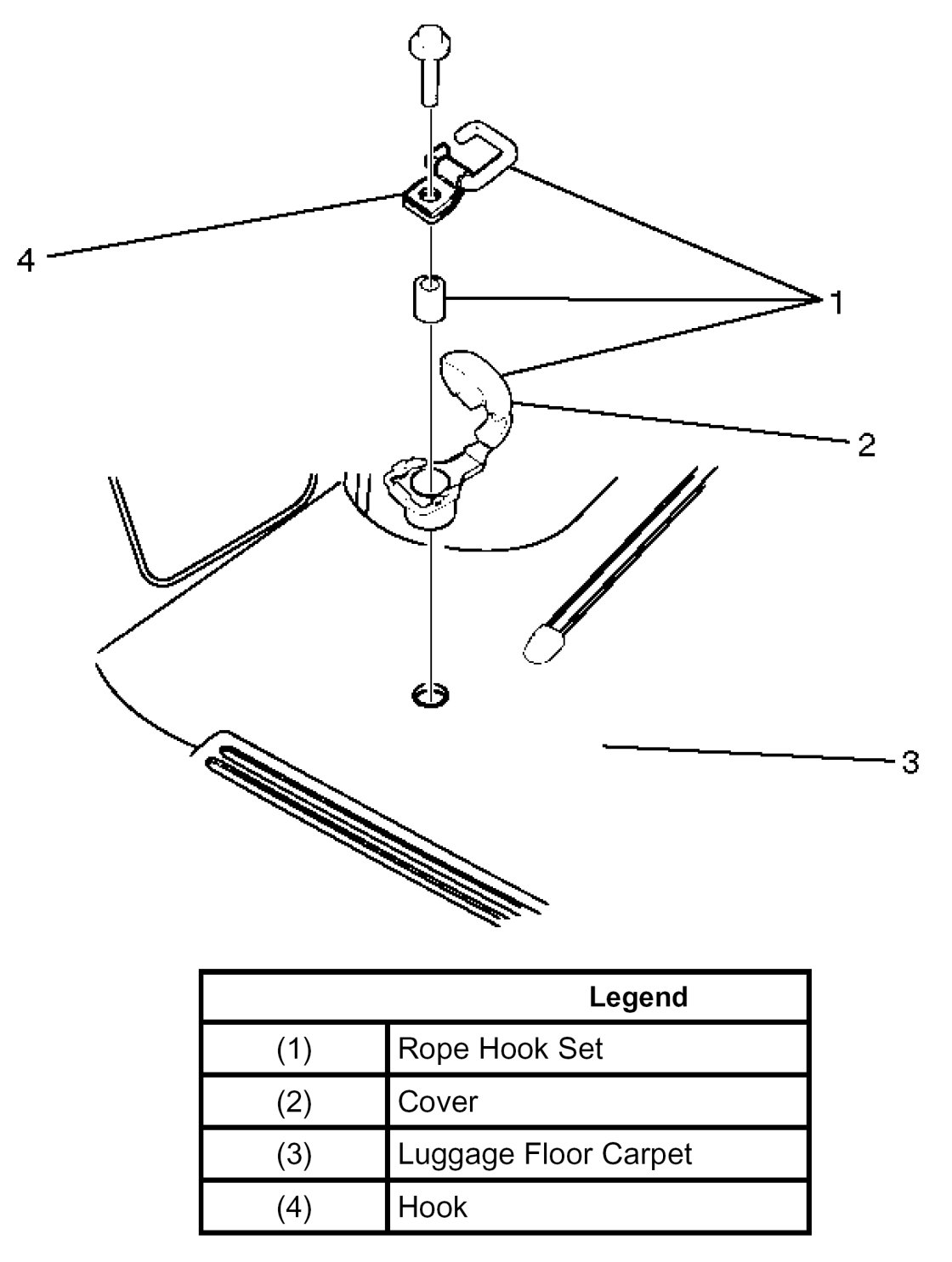

Rope Hook SetRope Hook Set and Associated Parts:
Removal 1.
Remove the rope hook set.
-
Open the hook cover and hook fixing bolt.
Installation 1.
Install the rope hook set.
-
Tighten the hook fixing bolt to the specified torque.
Torque: 13 N.m (113 lb in)
