Rear Seat Assembly

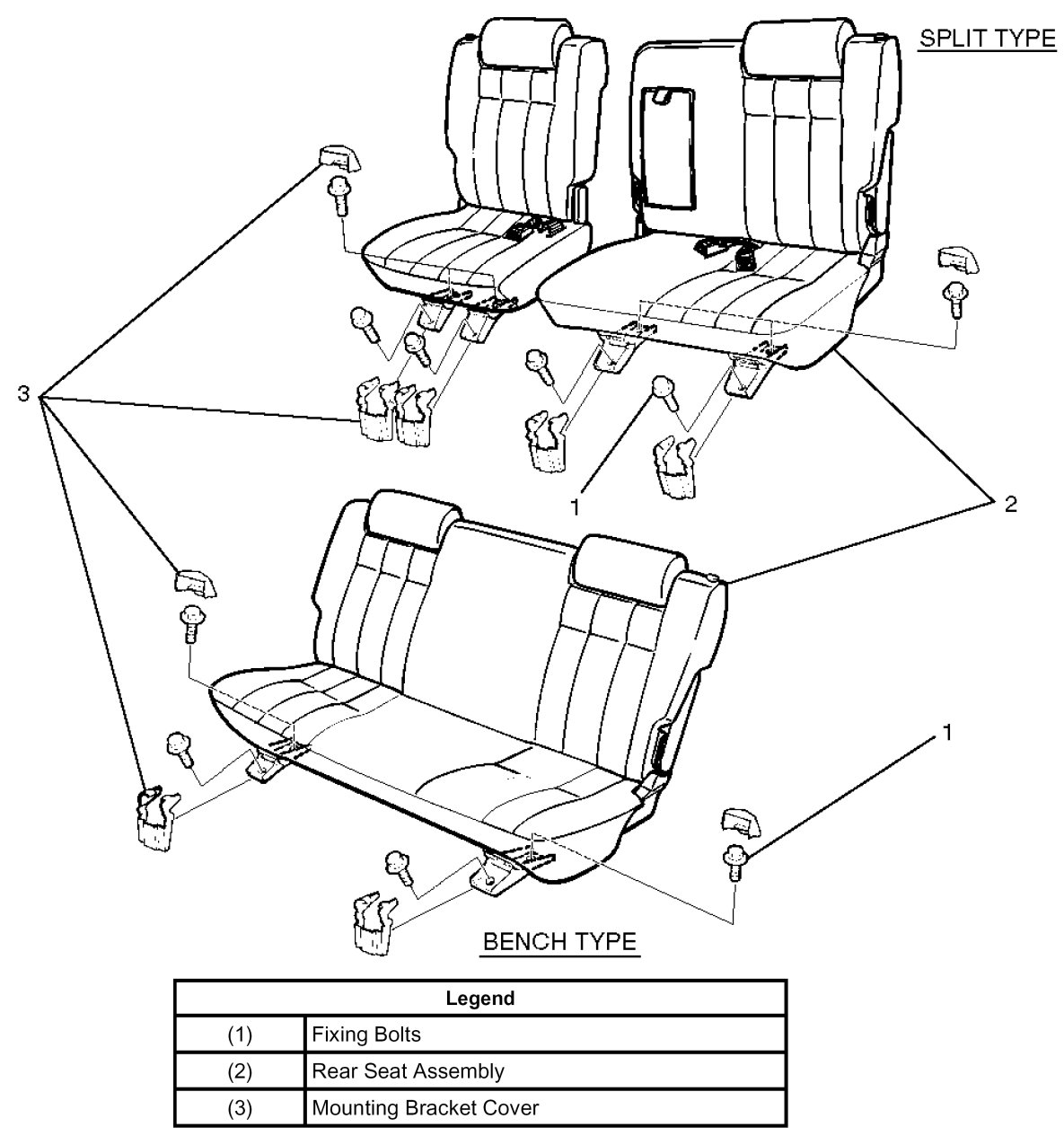

Rear Seat Assembly And Associated PartsRemoval 1.
Unlock the rear seat(1) lock to remove it.
2.
Remove the mounting bracket cover.
3.
Remove the fixing bolts.
4.
Remove the rear seat assembly.
InstallationTo install, follow the removal steps in the reverse order, noting the following point.
1.
Tighten the rear seat fixing bolts to the specified torque.
Torque: 19 N.m (14 lb ft)
