Spare Tire Carrier: Service and Repair

Spare Tire Carrier

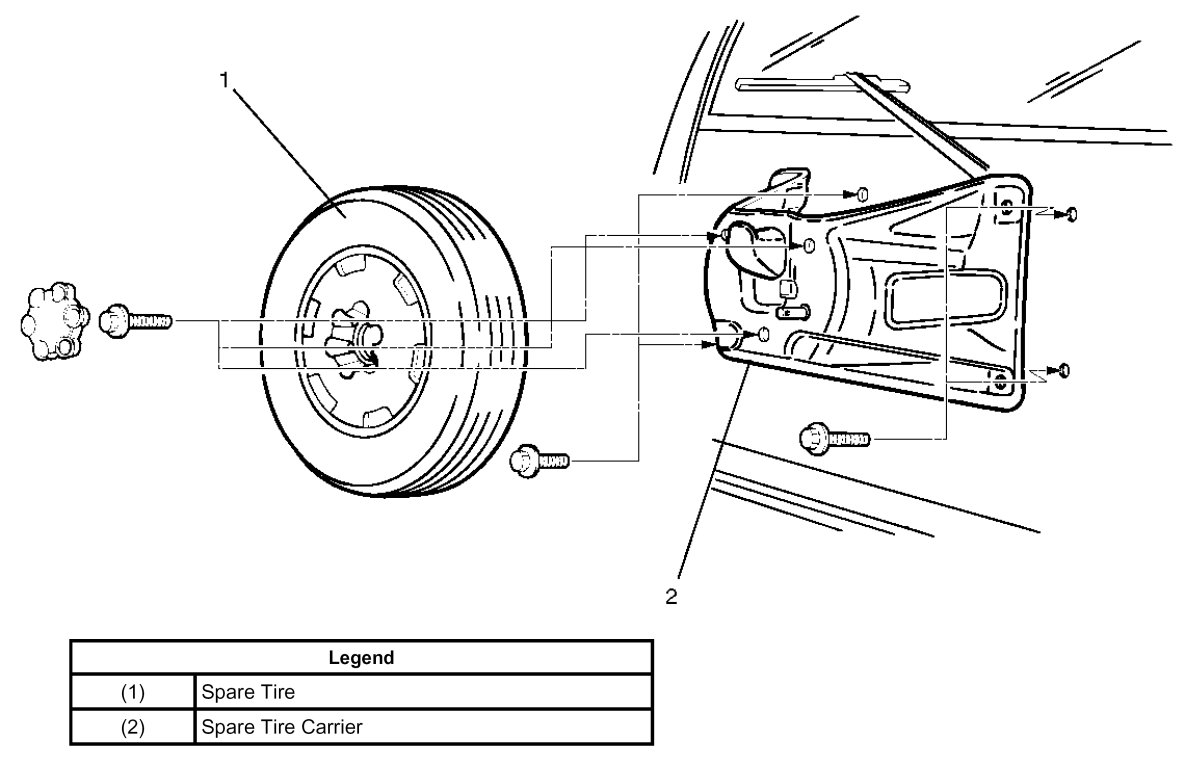

Parts Location:

Removal

1. Remove spare tire.

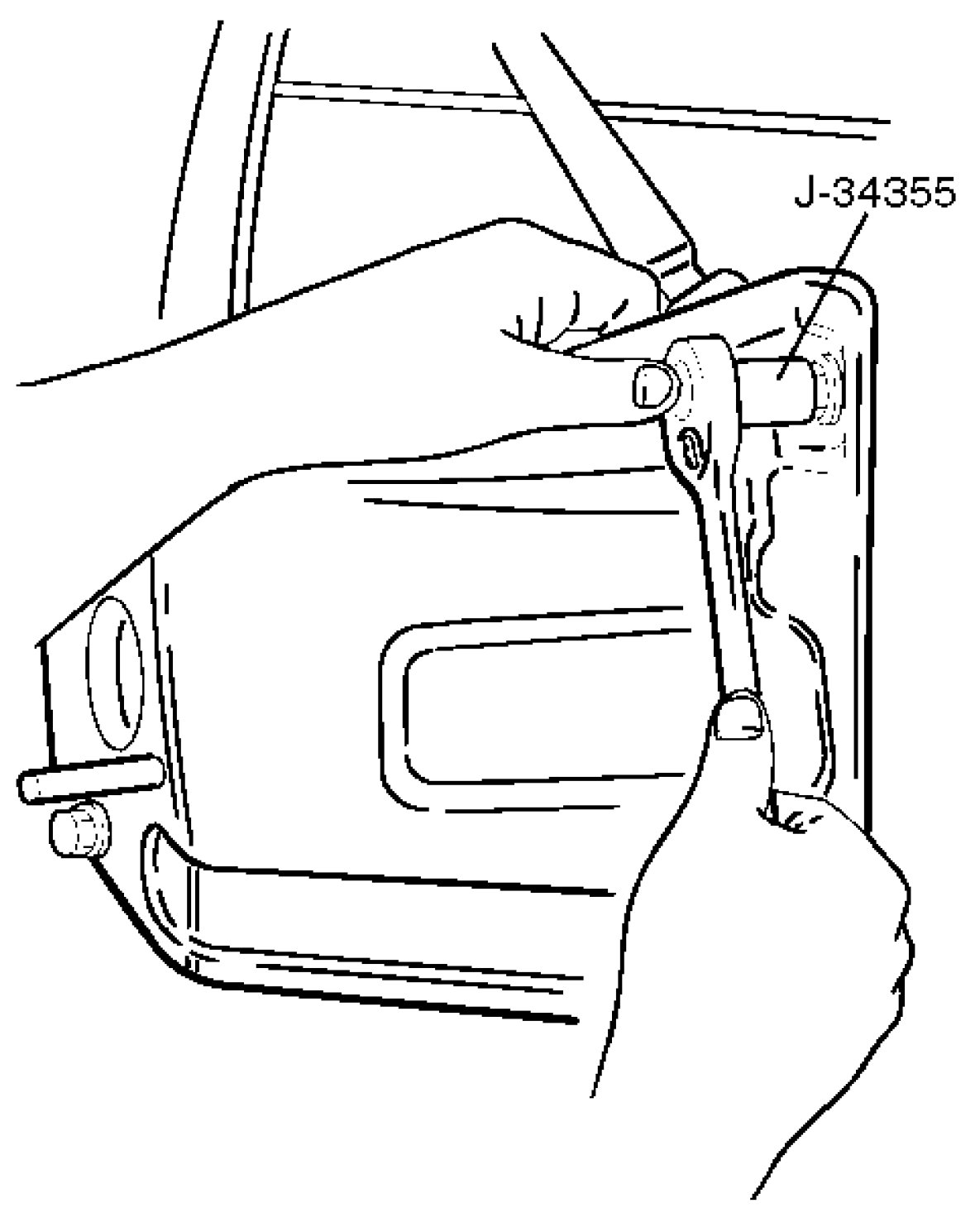

2. Remove spare tire carrier by using spare tire carrier nut wrench J-34355.

Installation

1. Install the spare tire carrier.
- Tighten the carrier fixing bolts to the specified torque.
Torque: 31 N.m (23 lb ft)

2. Install the spare tire.
- Tighten the spare tire fixing bolts to the specified torque.
Torque: 118 N.m (87 lb ft)
