Fuel Tank Unit: Service and Repair
REMOVAL 1.
Disconnect the battery ground cable.
2.

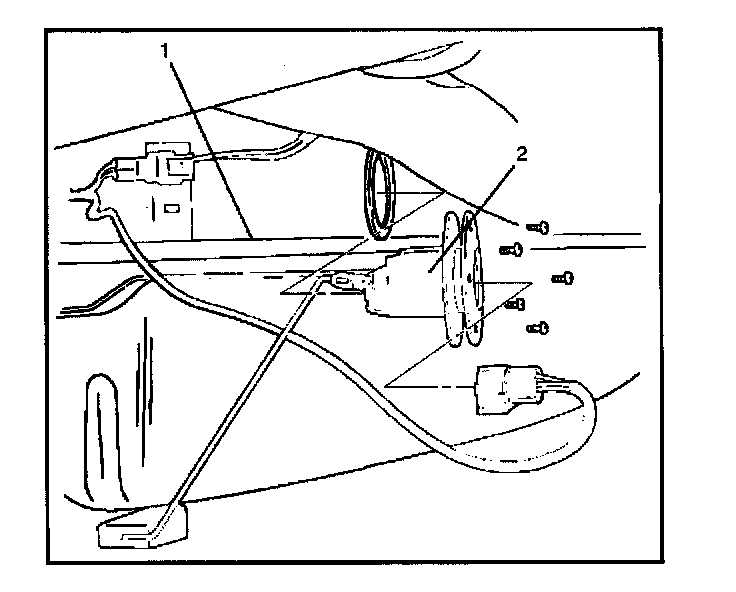

Remove the
fuel tank (1).
3.
Disconnect the connectors, remove five screws and then remove the
fuel tank unit (2).
INSTALLATIONTo install, follow the removal steps in the reverse order.
