Fuel Pump: Service and Repair






Removal

CAUTION: When repair to the fuel system has been completed, start engine and check the fuel system for loose connection or leakage For the fuel system diagnosis, refer to Computers/Testing.

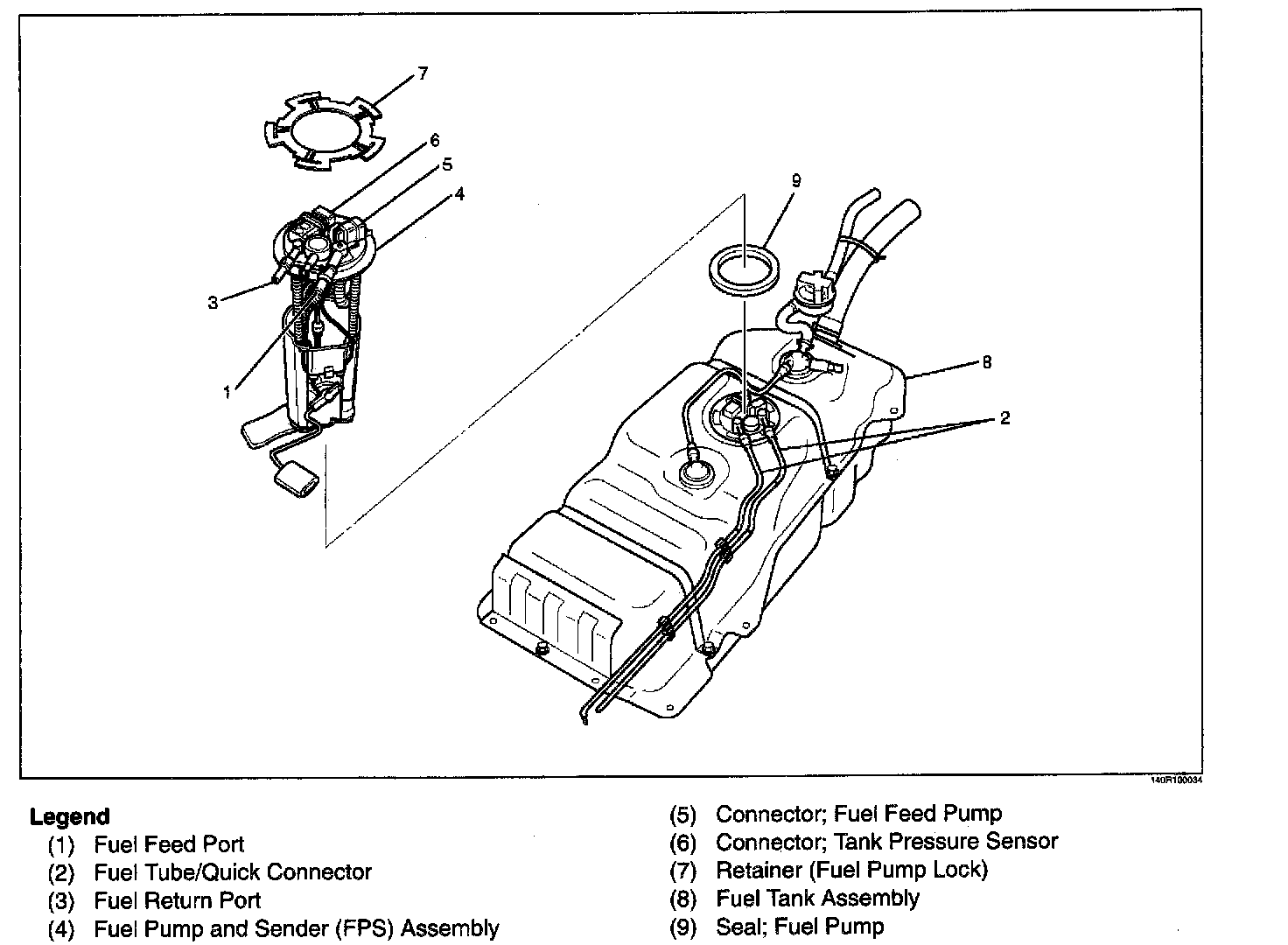

1. Remove fuel tank assembly (8). Refer to "Fuel Tank Removal".
2. Remove Fuel Tube/Quick Connector (2).

NOTE: Refer to "Fuel Tube/Quick Connector Fittings" when performing any repairs.




3. Remove the retainer (7) with tool J-39763 and remove the fuel pump and sender (FPS) assembly (4).

NOTE: After removing pump assembly (4), cover fuel tank to prevent any dust entering.

Installation
1. Install FPS assembly (4) with retainer (7) and new seal; fuel pump (9) by J-39763.
2. Install Fuel Tube/Quick Connector (2).

NOTE: Refer to "Fuel Tube/Quick Connector Fittings" when performing any repairs.

3. Install fuel tank assembly (8). Refer to "Fuel Tank Installation".
