Sunroof Frame Complete Assembly

SUNROOF FRAME COMPLETE ASSEMBLY (LWB)

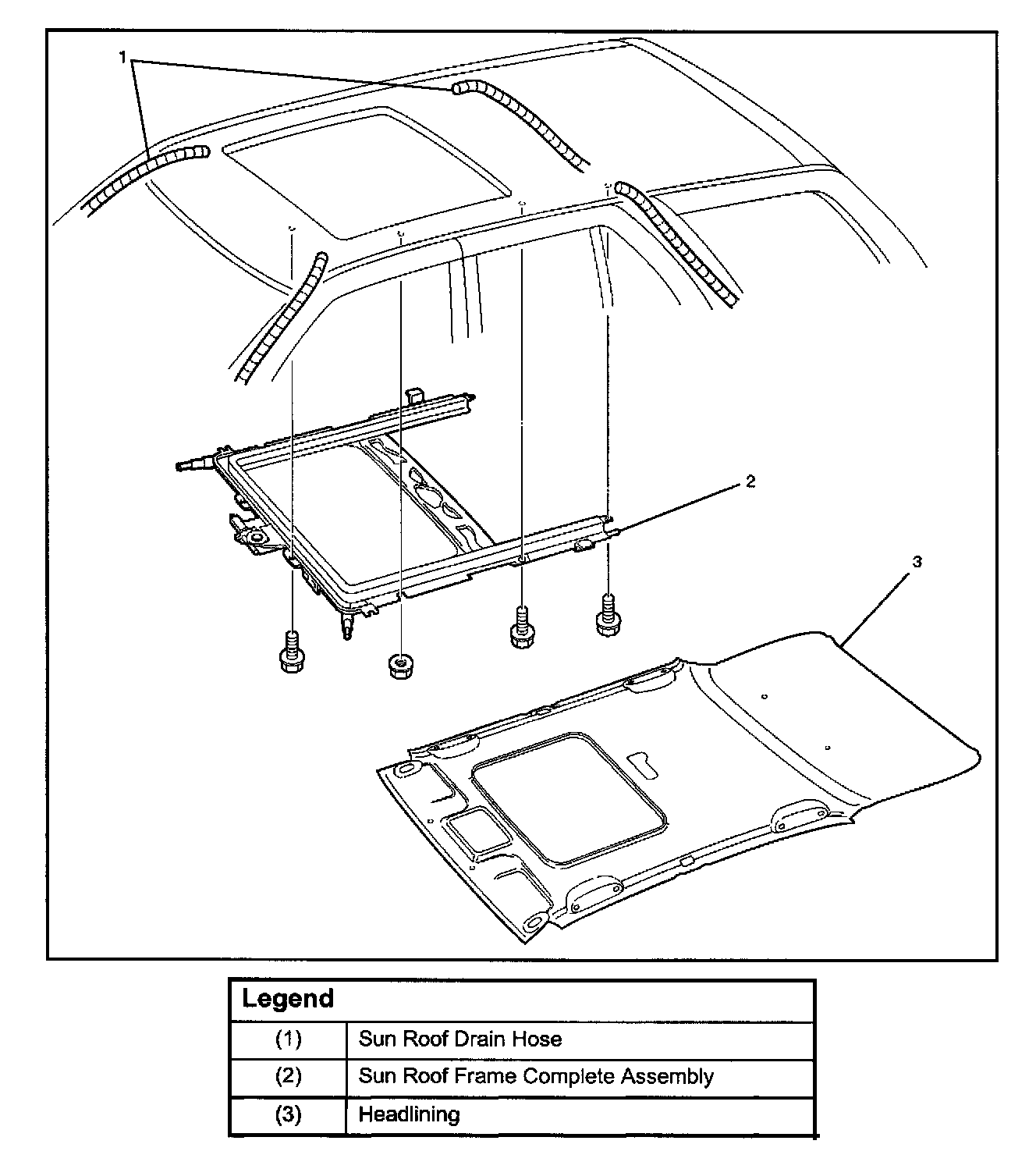

Sunroof Frame Complete Assembly And Associated Parts:






REMOVAL

1. Disconnect the battery ground cable.
2. Remove the headlining. Refer to Headlining (LWB) or Headlining (SWB) in Body Structure.




3. Disconnect the sunroof drain hose at the sunroof frame side as shown in the figure.
4. Disconnect the sunroof harness connection.
5. Remove two sunroof frame assembly fixing nuts (front side) and six fixing bolts from the frame complete assembly, and then remove the sunroof frame complete assembly.

NOTE: Be sure to remove the frame assembly while supporting it.

INSTALLATION

1. Install the sunroof frame assembly.
2. After installing the frame assembly, loosen the sunroof glass fixing nuts and adjust the sunroof glass setting position. Refer to Sun Roof Glass.
3. Install the sunroof drain hose.
4. Install the headlining. Refer to Headlining (LWB) or Headlining (SWB) in Body Structure.
