Audio System - Wiring Harness Adapter

BULLETIN NUMBER:
IB01-13-S002

ISSUE DATE:
JULY 2001

GROUP:
RADIO

NAKAMICHI AUDIO WIRING HARNESS ADAPTER

AFFECTED VEHICLES

2001 Rodeo and Trooper Anniversary Edition Models

SERVICE INFORMATION

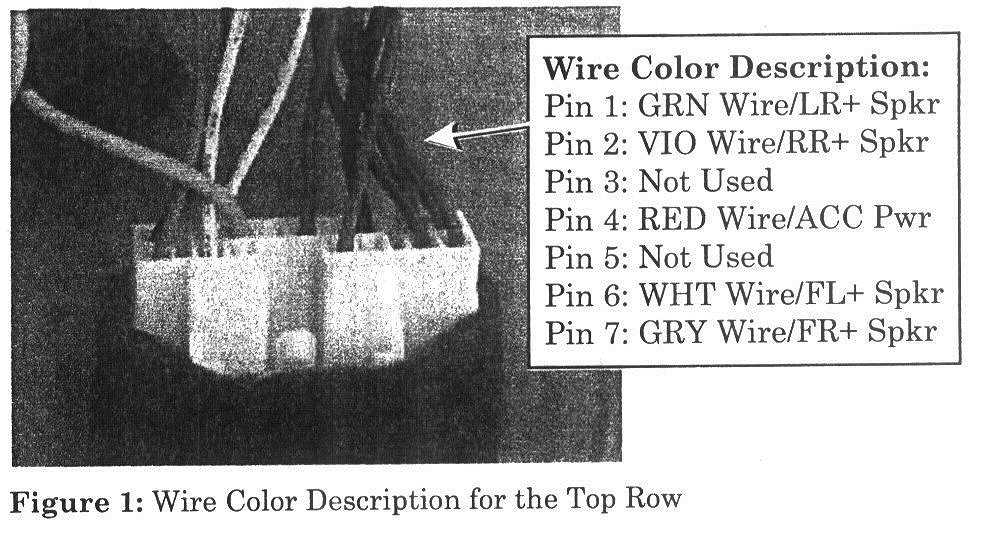

Nakamichi Audio Systems are installed in 2001 Rodeo and Trooper Anniversary Editions. An adapter harness for the Nakamichi Audio System has been added in order to adapt to the existing Dash Harness. To assist in proper diagnosis, the harness wire colors, pin numbers and descriptions are identified.
