Paint - Colors and Codes

BULLETIN NUMBER:
SB00-11-5006

ISSUE DATE:
SEPTEMBER 2000

GROUP:
BODY & PAINT

2001 ISUZU SPORT UTILITY VEHICLE PAINT COLORS AND CODES

AFFECTED VEHICLES

2001 VehiCROSS (VX), Trooper (UX), Rodeo (UE), and Rodeo Sport (UA)

SERVICE INFORMATION

This Service Bulletin lists exterior paint color information for 2001 Isuzu Sport Utility Vehicle models.

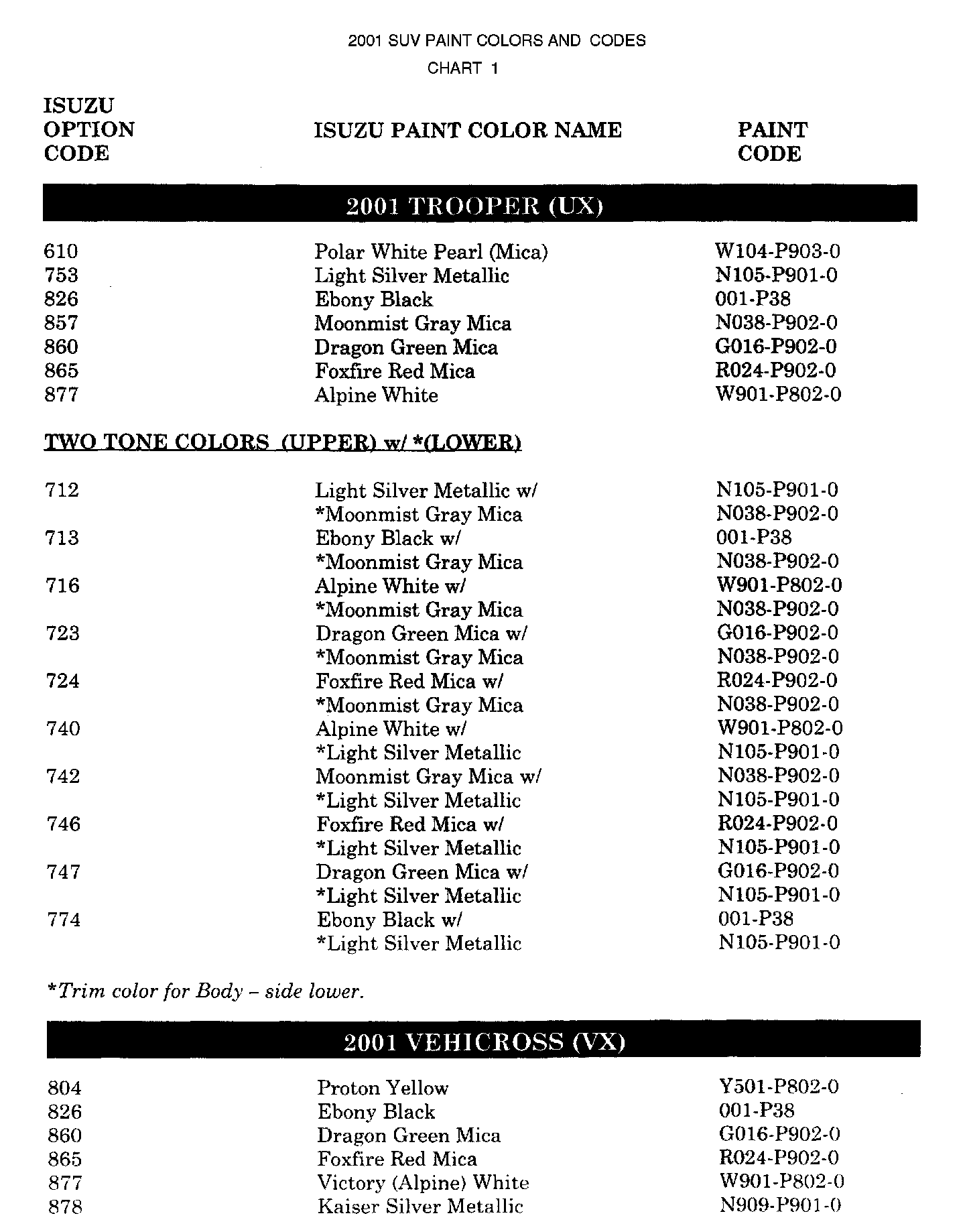

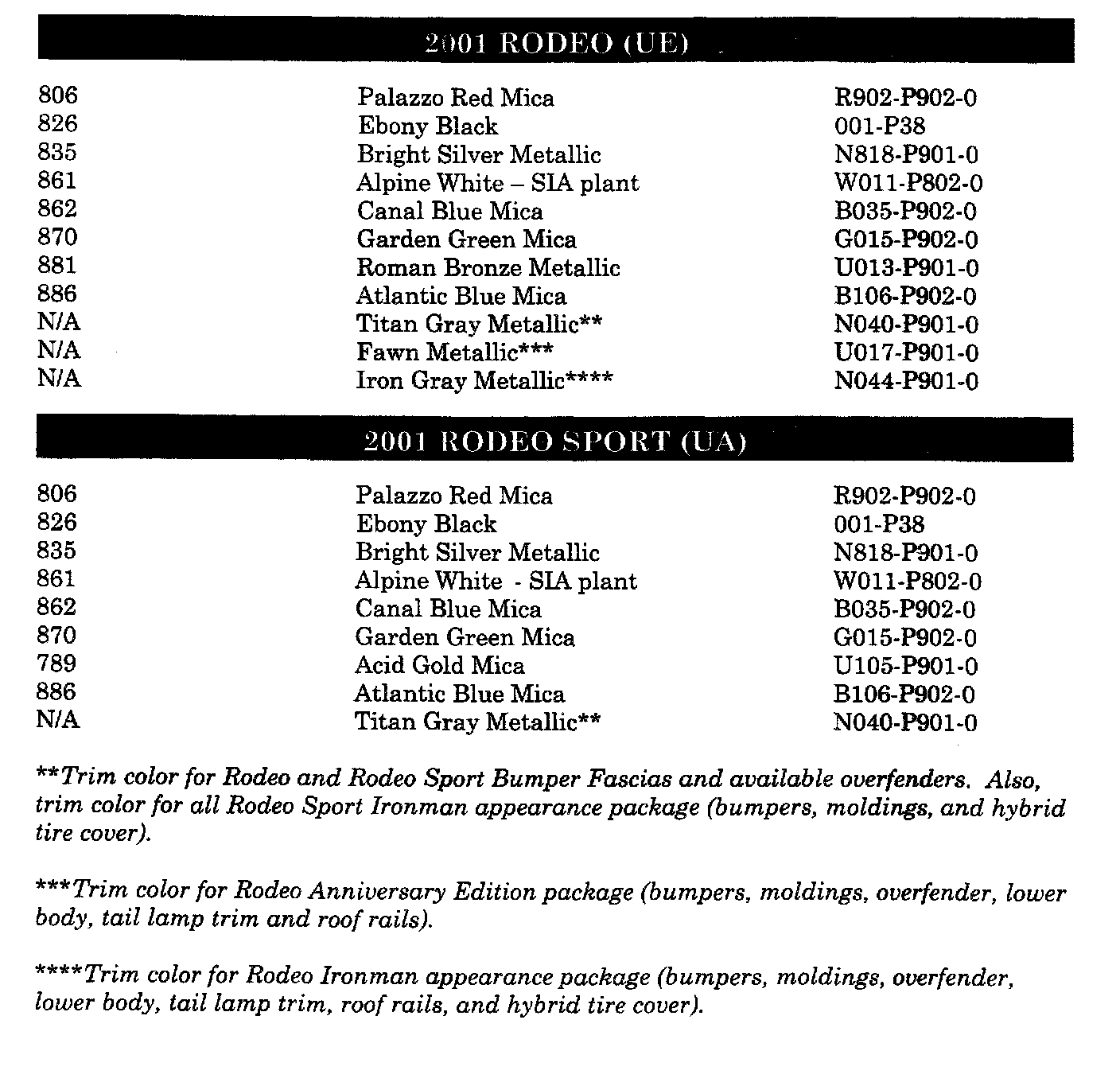

Chart 1 lists the Isuzu option code, Isuzu paint color name, and Isuzu paint code for each 2001 model, in option code ascending order.

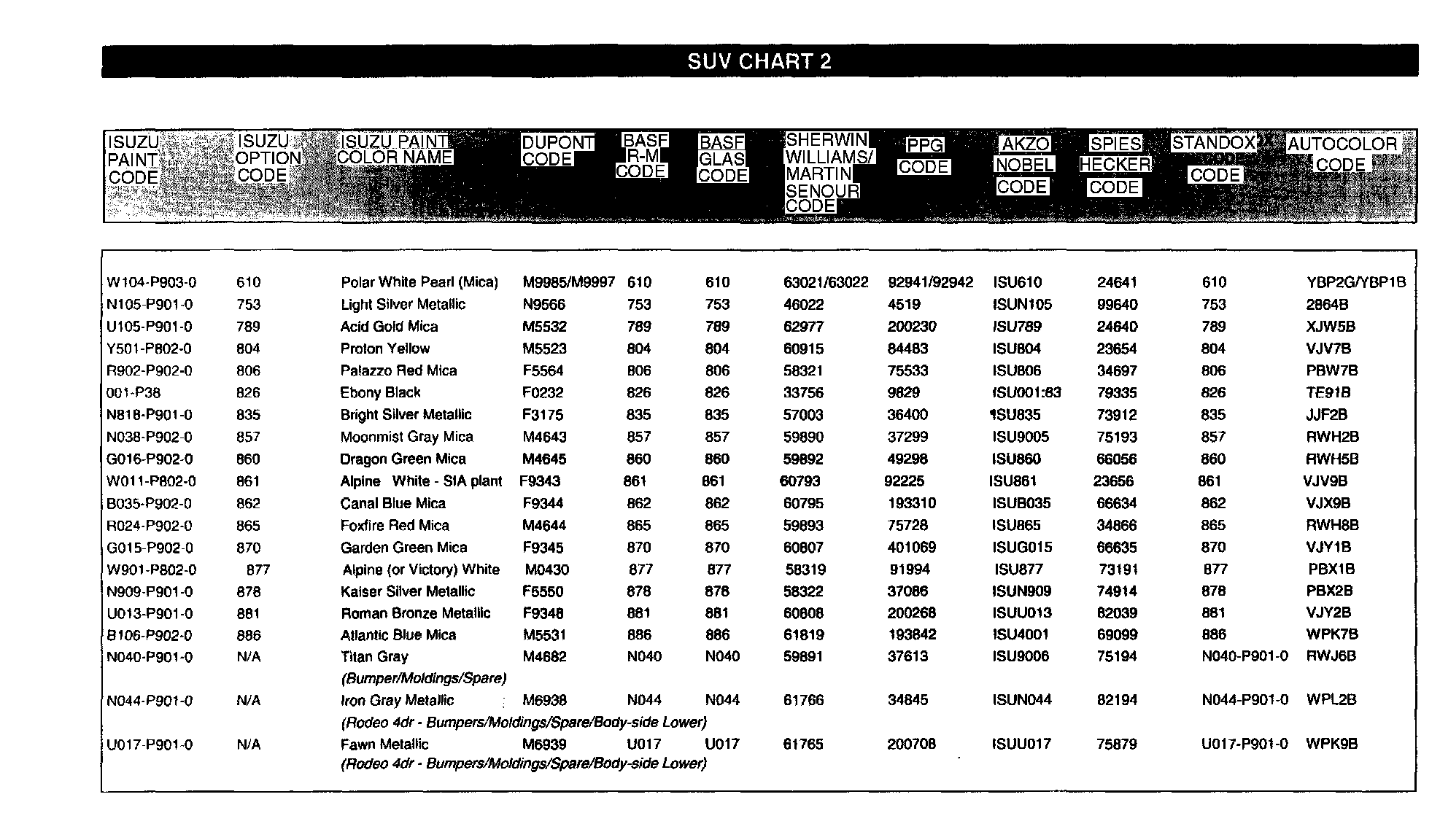

Chart 2 lists the Isuzu paint code, Isuzu option code, and Isuzu paint color name. followed by the corresponding aftermarket paint vendor codes.

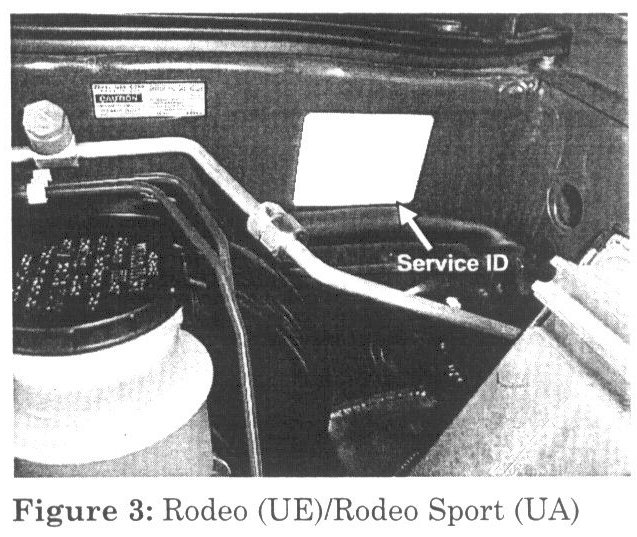

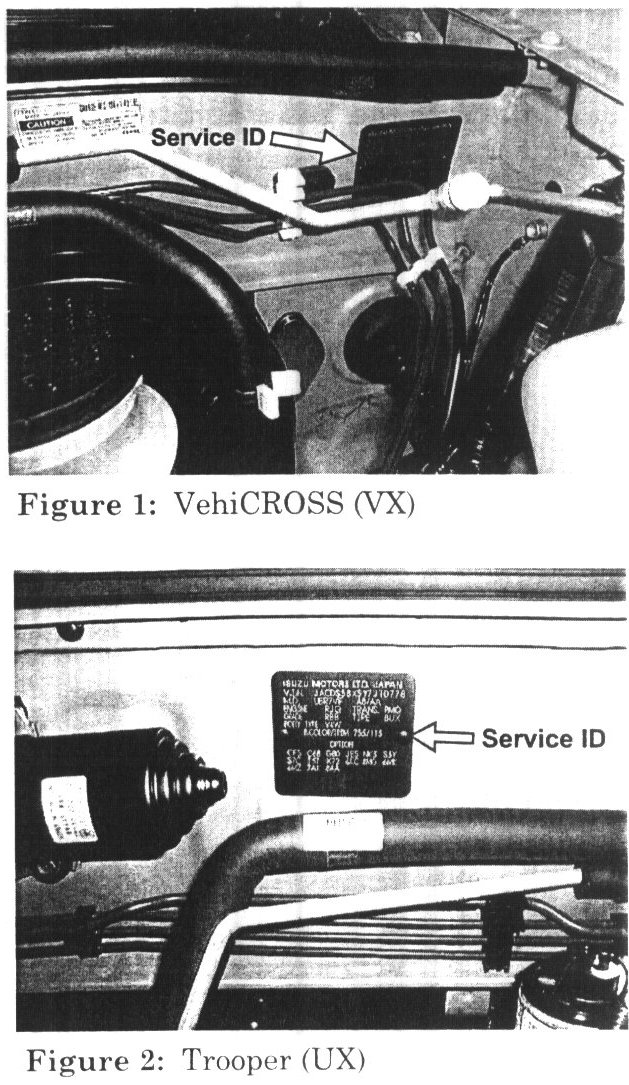

On the VehiCROSS, Trooper Rodeo, and Rodeo Sport models, the 3-digit Jsuzu option code is printed on the Service ID Information. mounted under the hood, on the bulkhead at the rear of the engine compartment. (Figures 1, 2, and 3)

All aftermarket paint cross-reference information, has been supplied by the paint manufacturers. In some cases, the after- market manufacturer's paint color name may differ from the Isuzu paint color name listed in this Service Bulletin.

IMPORTANT!
Due to differences in manufacturing plants, be sure to specify the manufacturing plant when ordering paint. The paint color name is the same, but the paint formula differs between assembly plants. Check the VIN plate to verify where the vehicle was manufactured.

Give this information to your paint supplier to ensure receiving the exact formula required.
