Camshaft Bearing

Install camshaft assembly and camshaft brackets, tighten twenty bolts on one side bank to the specified torque.
a. Apply engine oil to camshaft journal and bearing surface of camshaft bracket.

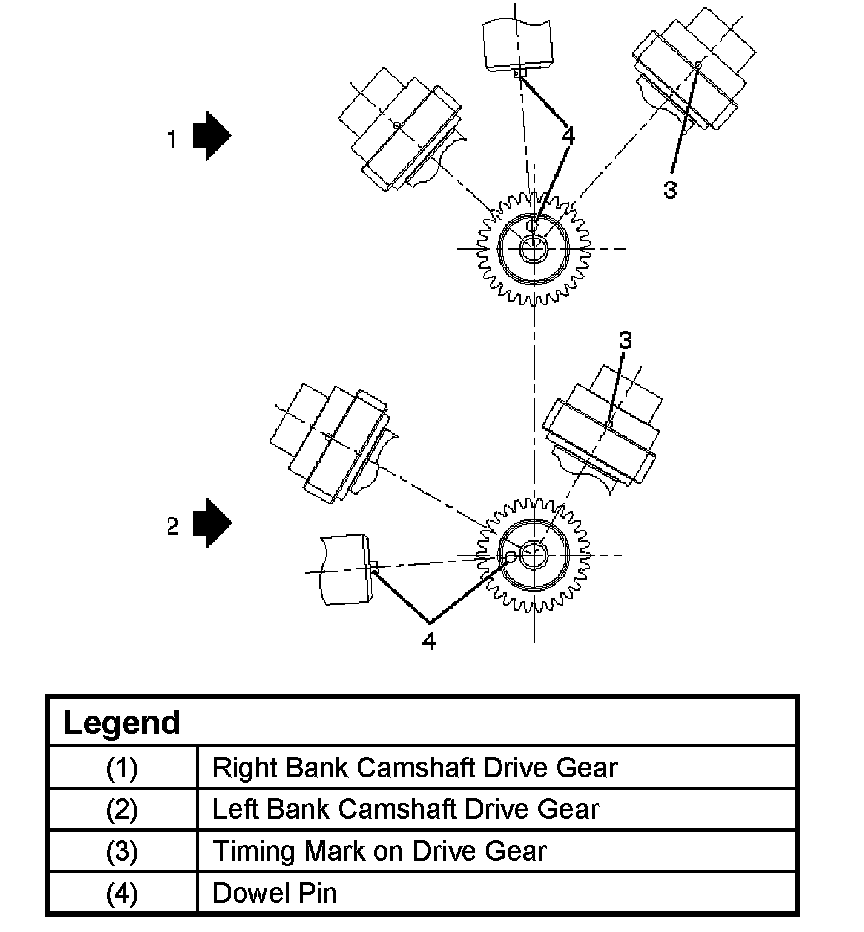

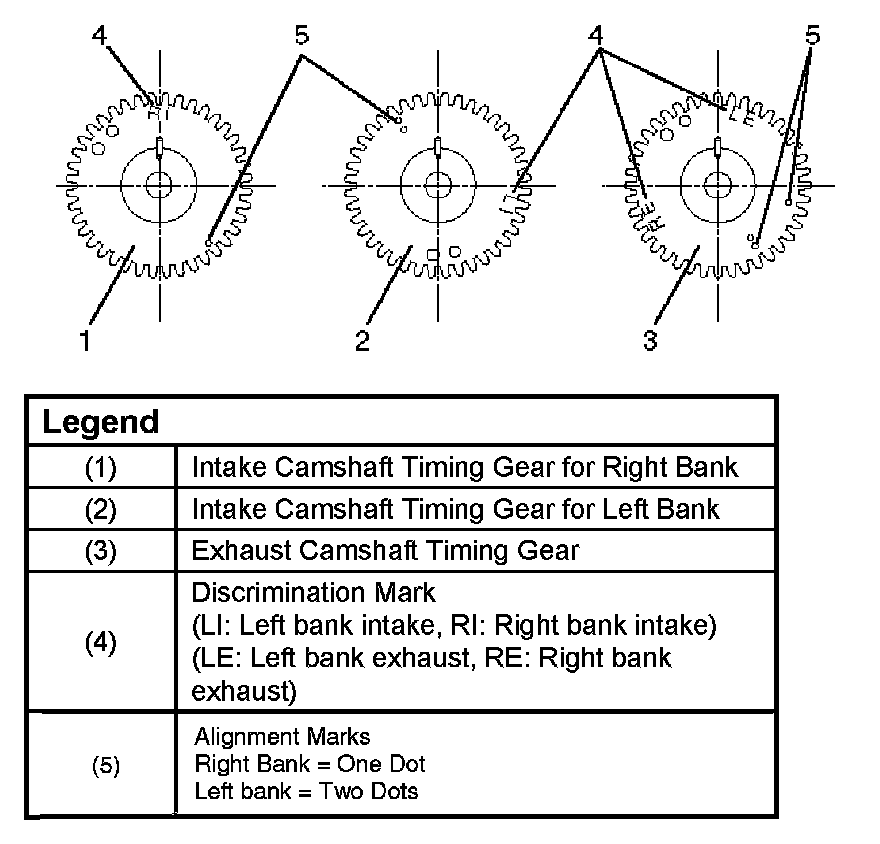

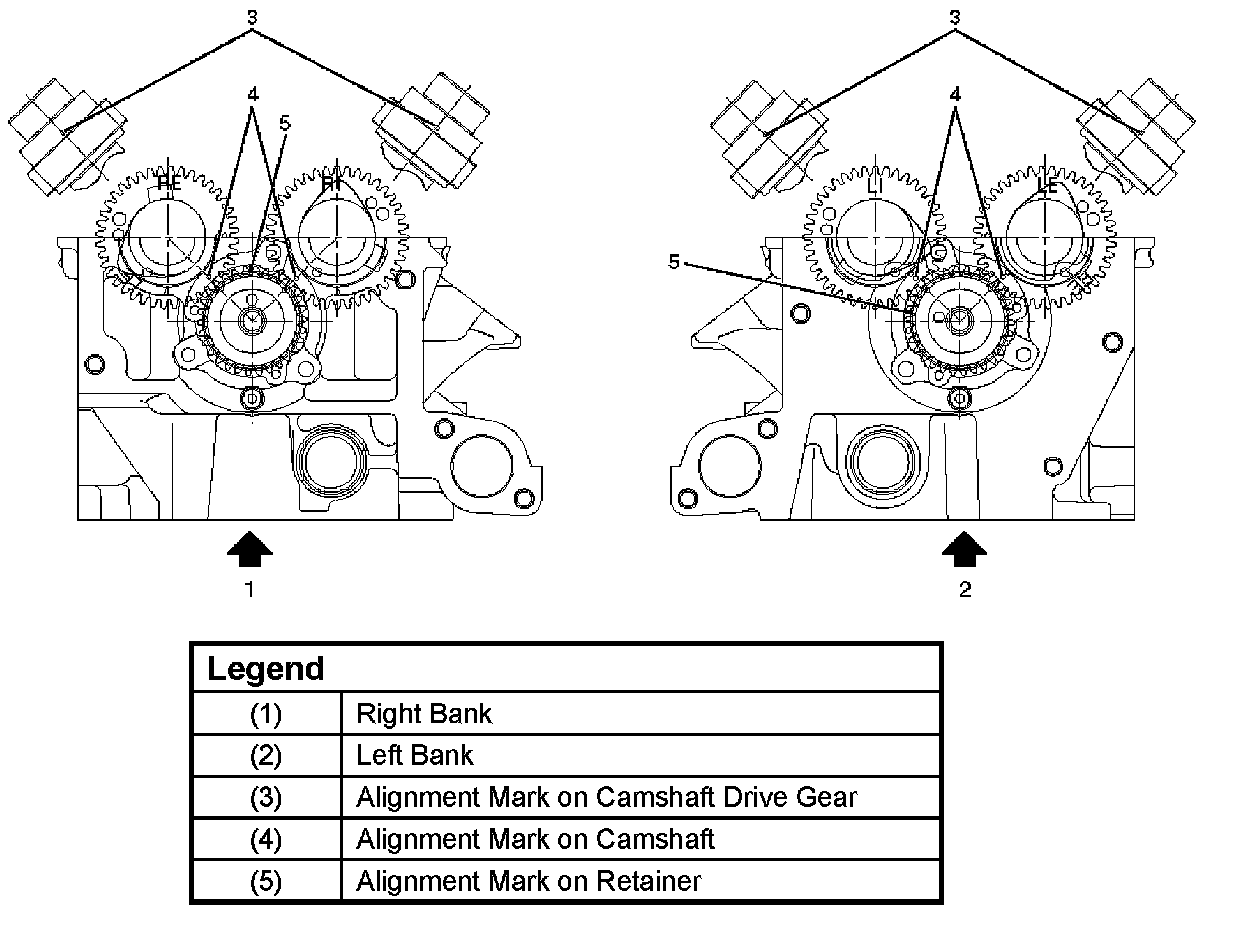

b. Align timing mark on intake camshaft (one dot for right bank, two dot for left bank) and exhaust camshaft (one dot for right bank, two dots for left bank) to timing mark on camshaft drive gear (one dot).





c. Tighten twenty bolts on numerical order on one side bank as shown in the illustration.
Torque: 10 Nm (89 inch lbs.)
