Console: Service and Repair
ConsolesConsoles and Associated Parts:
Removal

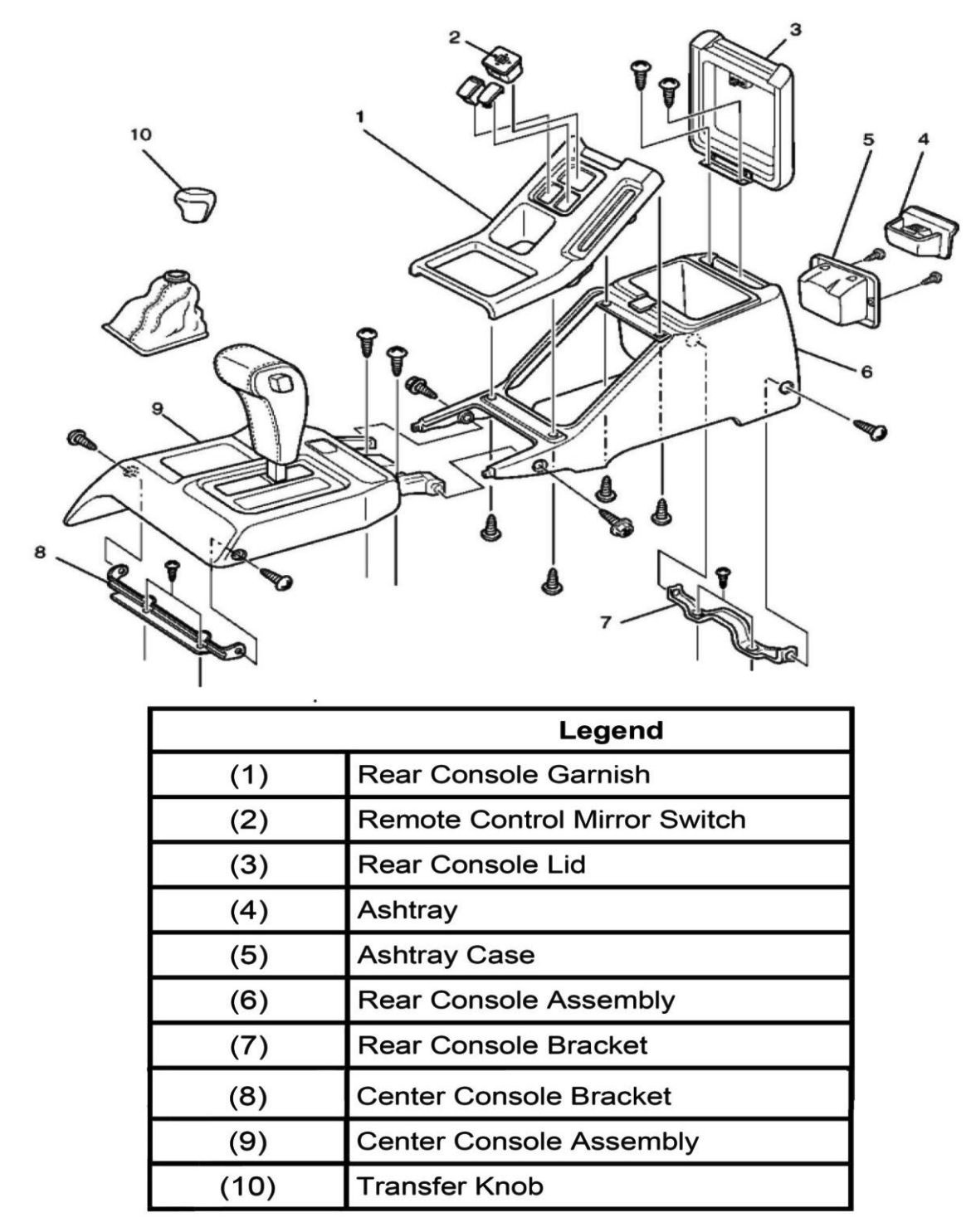

1. Disconnect the battery ground cable.
2. Remove rear console assembly.
- Disconnect the switch connectors and remove the four fixing screws.
- Remove the two screws to remove the rear console lid from the rear console assembly.
- Remove the ashtray from the rear console assembly.
- Remove the two screws to remove the ashtray case from the rear console assembly.
- Remove the four screws to remove the rear console garnish from the rear console assembly.
3. Remove the center console assembly.
- Remove the transfer control lever knob by turning it counterclockwise.
- Disconnect the mode selector switch connector and remove the four fixing screws.
4. Remove the center console bracket.
- Remove the two fixing screws.
5. Remove the rear console bracket.
- Remove the two fixing screws.
Installation
To install, follow the removal steps in the reverse order.
