Lateral Accelerometer: Service and Repair

Removal





1. Remove center console.

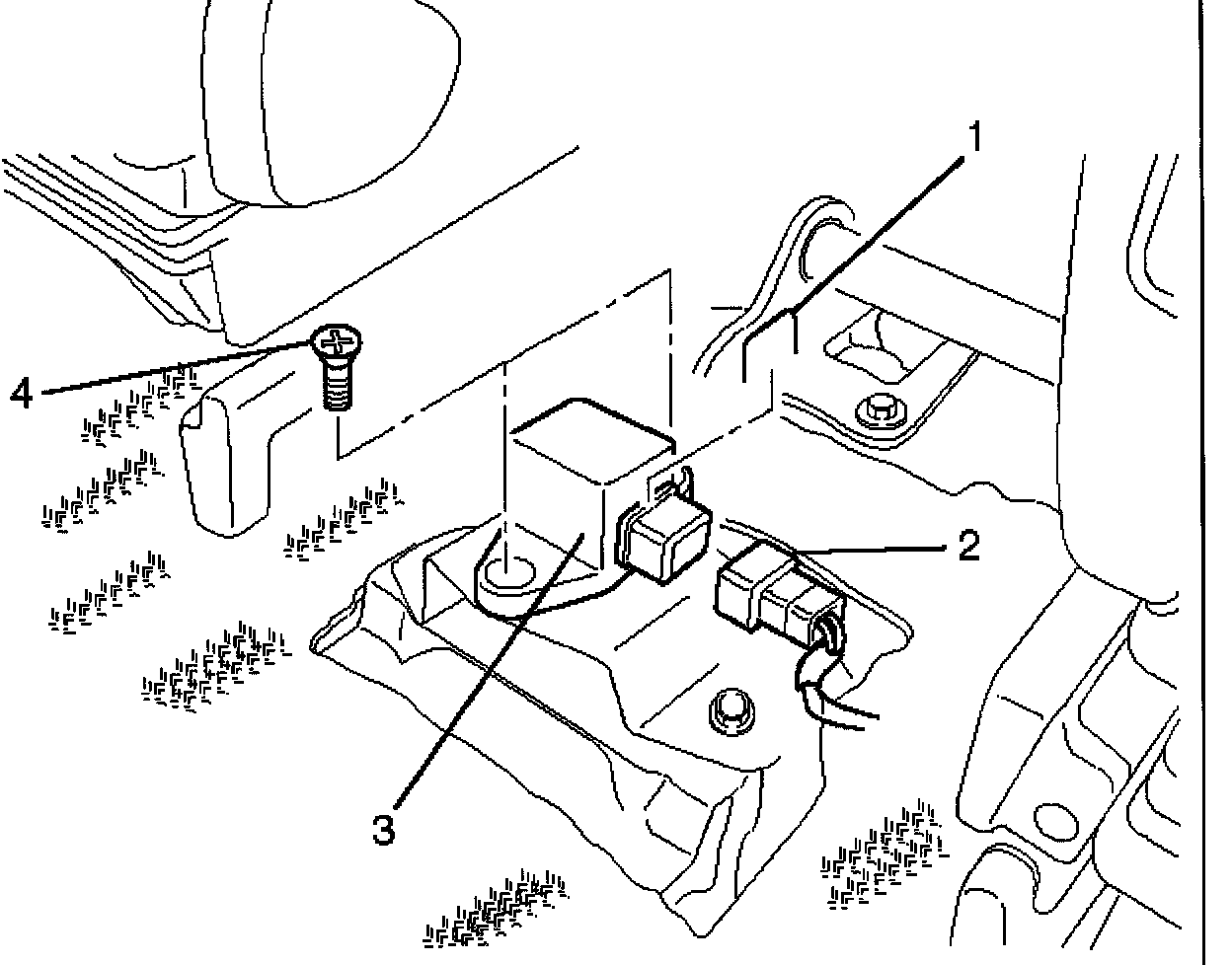

2. Remove clip (1) from G-sensor connector (2), then disconnect connector.
3. Remove G-sensor fixing screw (4).
4. Remove G-sensor (3).

Inspection and Repair
Refer to Diagnostic Trouble Code 21.

Installation
1. Install G-sensor assembly (3).
- Care should be taken so that the G-sensor is not installed in the wrong direction.
2. Install G-sensor assembly fixing screw (4).
- Tighten the fixing screw to the specified torque.
Torque: 6 Nm (52 inch lbs.)
3. Install G-sensor wiring connector (2) and clip (1).
4. Install center console.
