Procedures

REMOVAL

1. Disconnect the battery ground cable.
2. Remove the instrument panel cluster assembly. Refer to Instrument Panel Assembly in Body Structure.

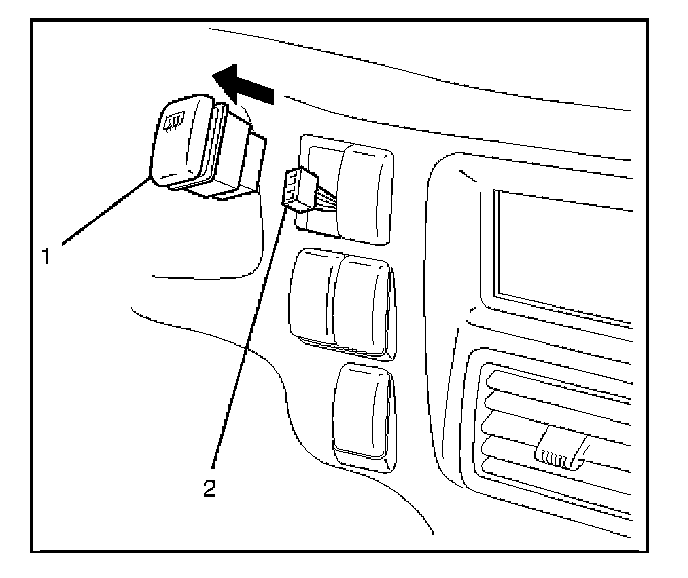

3. Remove the rear defogger switch (1).
- Disconnect the connector (2).
- Push the lock from the back side of the instrument panel cluster assembly.

INSTALLATION

To install, follow the removal steps in the reverse order, noting the following point.
1. Push in the switch with your fingers until it locks securely.
