Wiper Motor Linkage: Service and Repair

WINDSHIELD WIPER LINKAGE

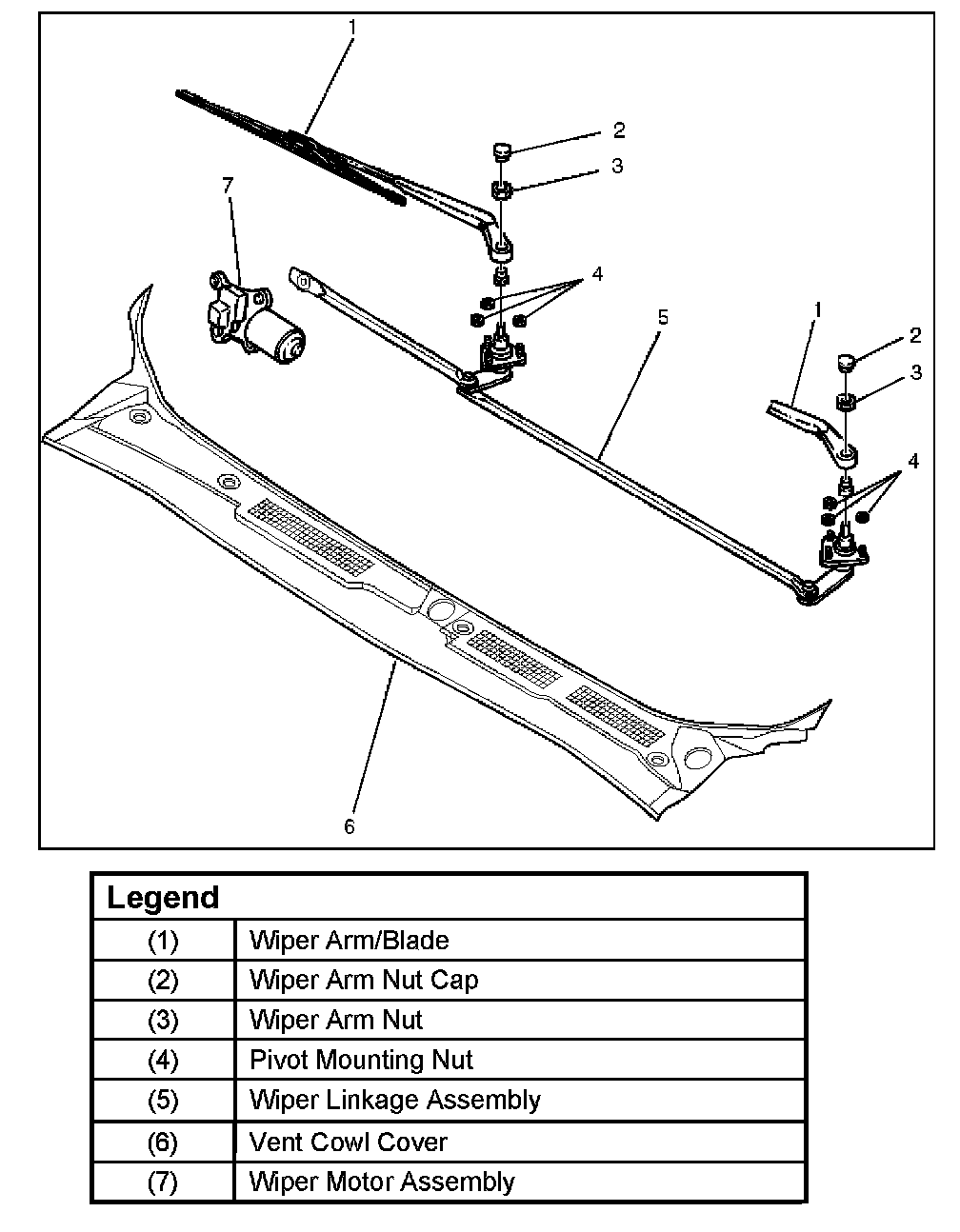

Windshield Wiper And Associated Parts:

REMOVAL

1. Disconnect the battery ground cable.
2. Remove the wiper motor assembly (7). Refer to the Windshield Wiper Motor.

3. Remove the wiper arm/blade (1).
- Remove the wiper arm nut cap (2) and nut (3).

4. Remove the vent cowl cover (6)
- Remove the 5 screws and 3 clips.

5. Remove the wiper linkage assembly (5).
- Remove the pivot mounting nuts (4), and then take out the wiper linkage assembly (5) from the opening of the cowl.

INSTALLATION

To install, follow the removal steps in the reverse order noting the following points.
1. Install wiper arm/blade.
- Before installing the wiper arm/blade to the shaft, confirm that the motor stop at the auto-stop position.
- Set the wiper arm/blade to the specified position.
- Refer to the Windshield Wiper Arm/Blade.
