Harness Connector Views

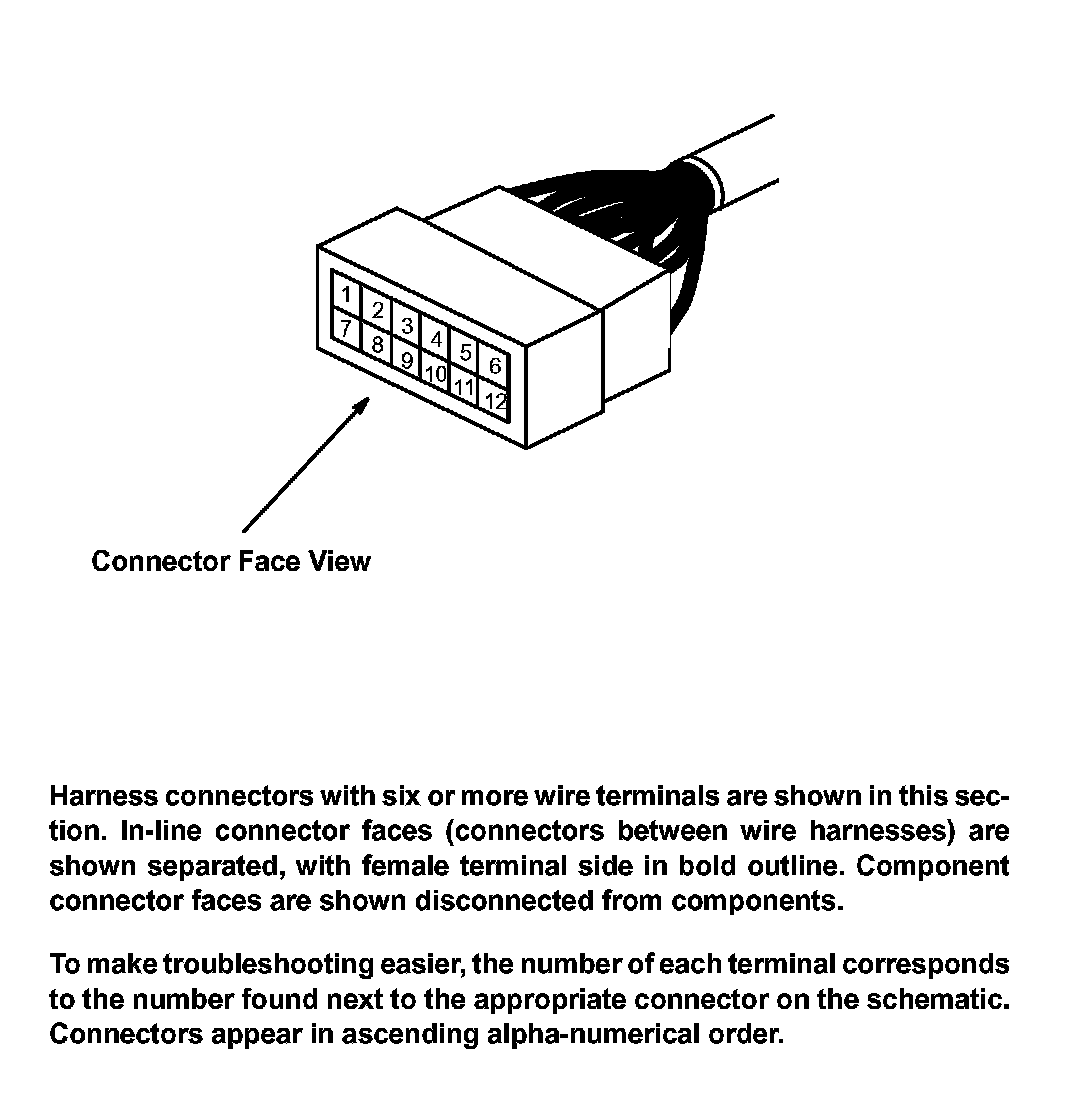

Harness Connector Views Image 202:

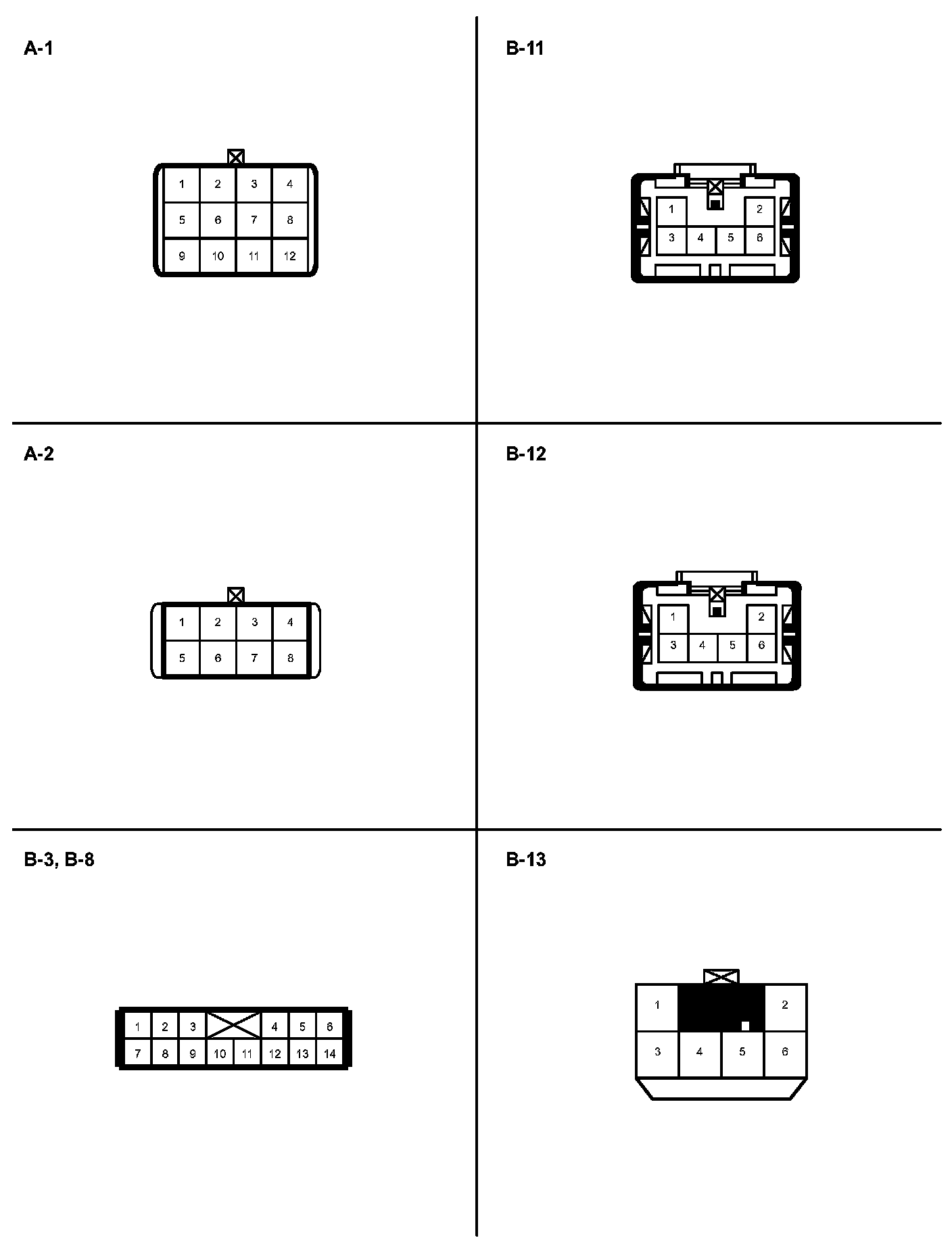

A-1 To B-13:

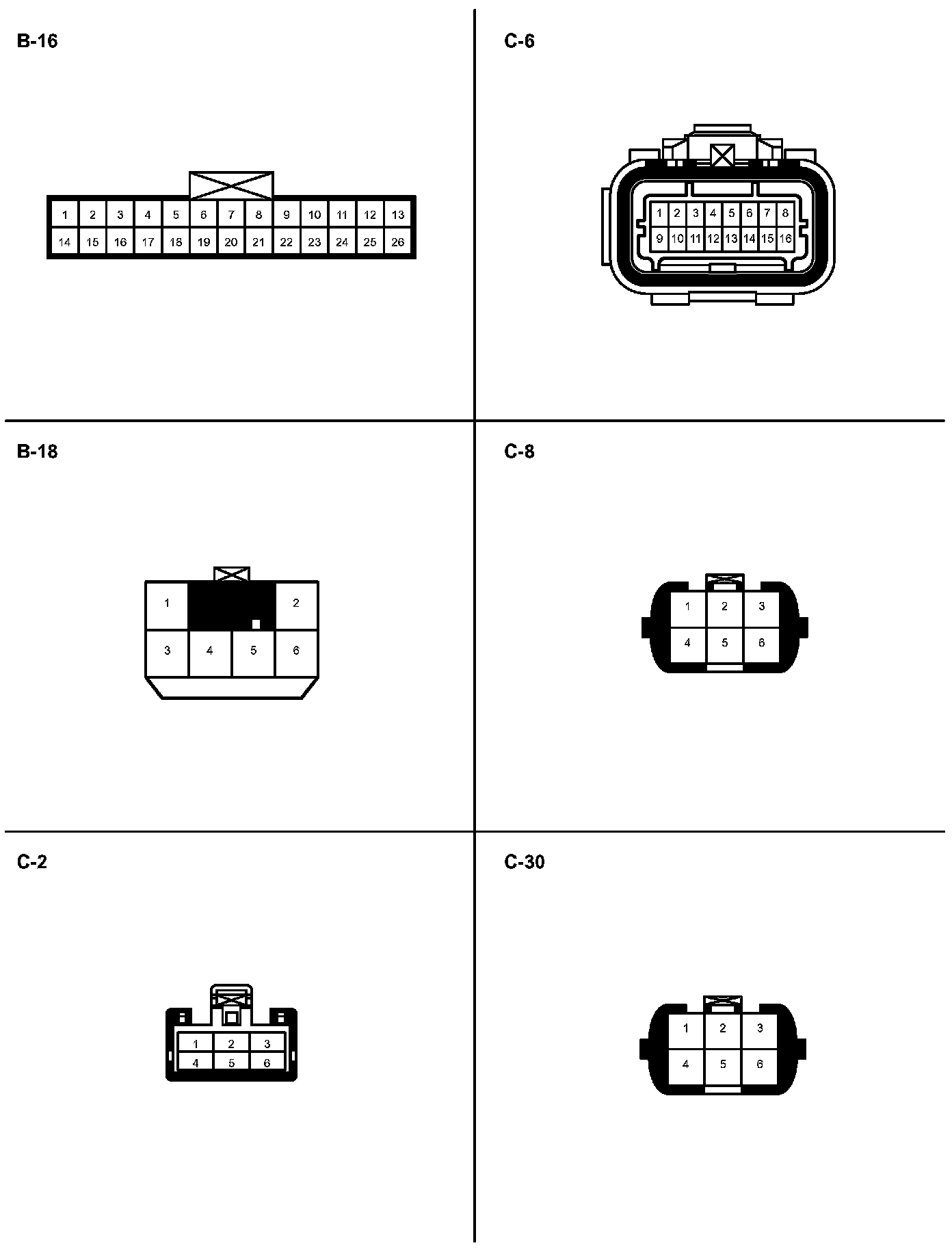

B-16 To C-30:

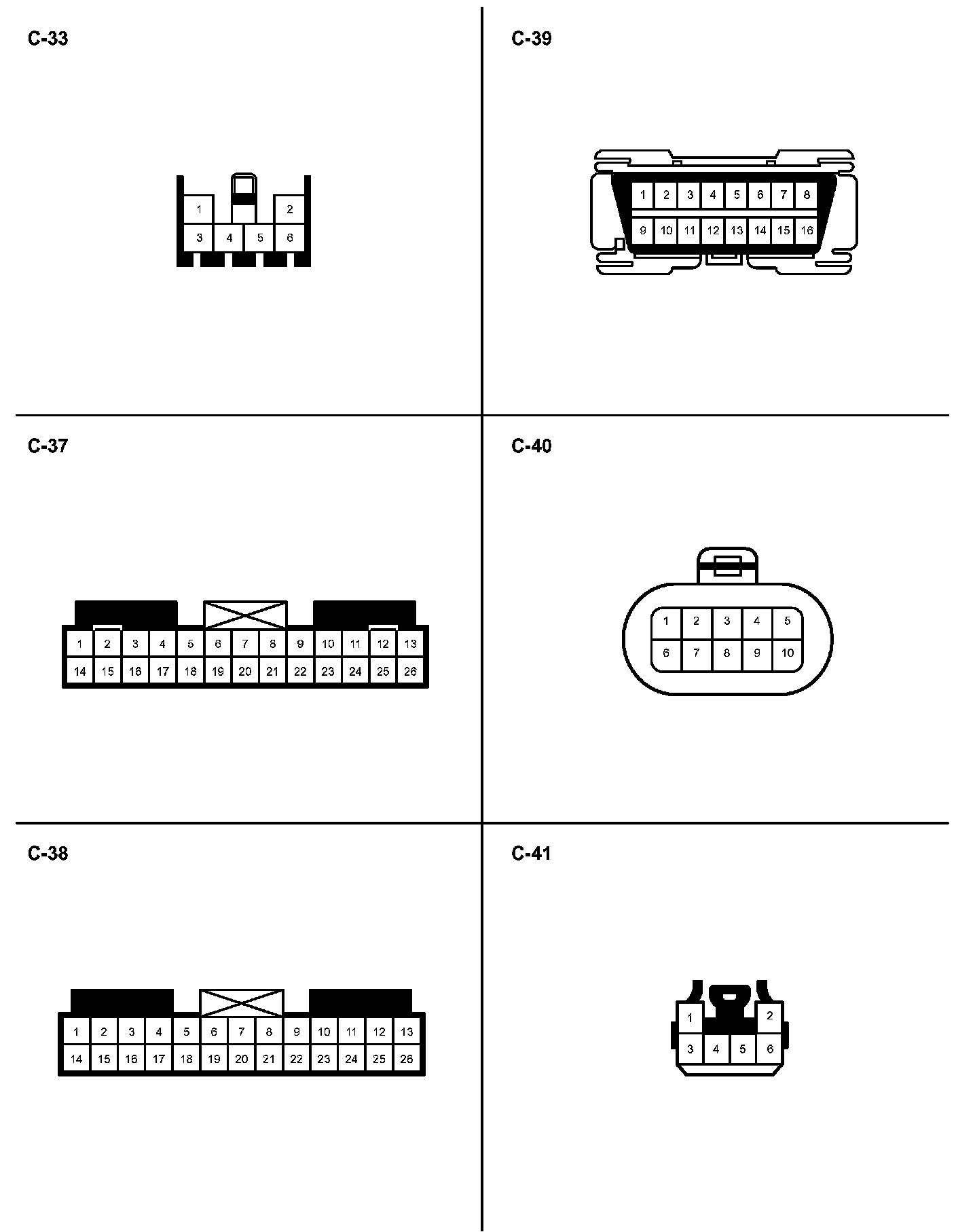

C-33 To C-41:

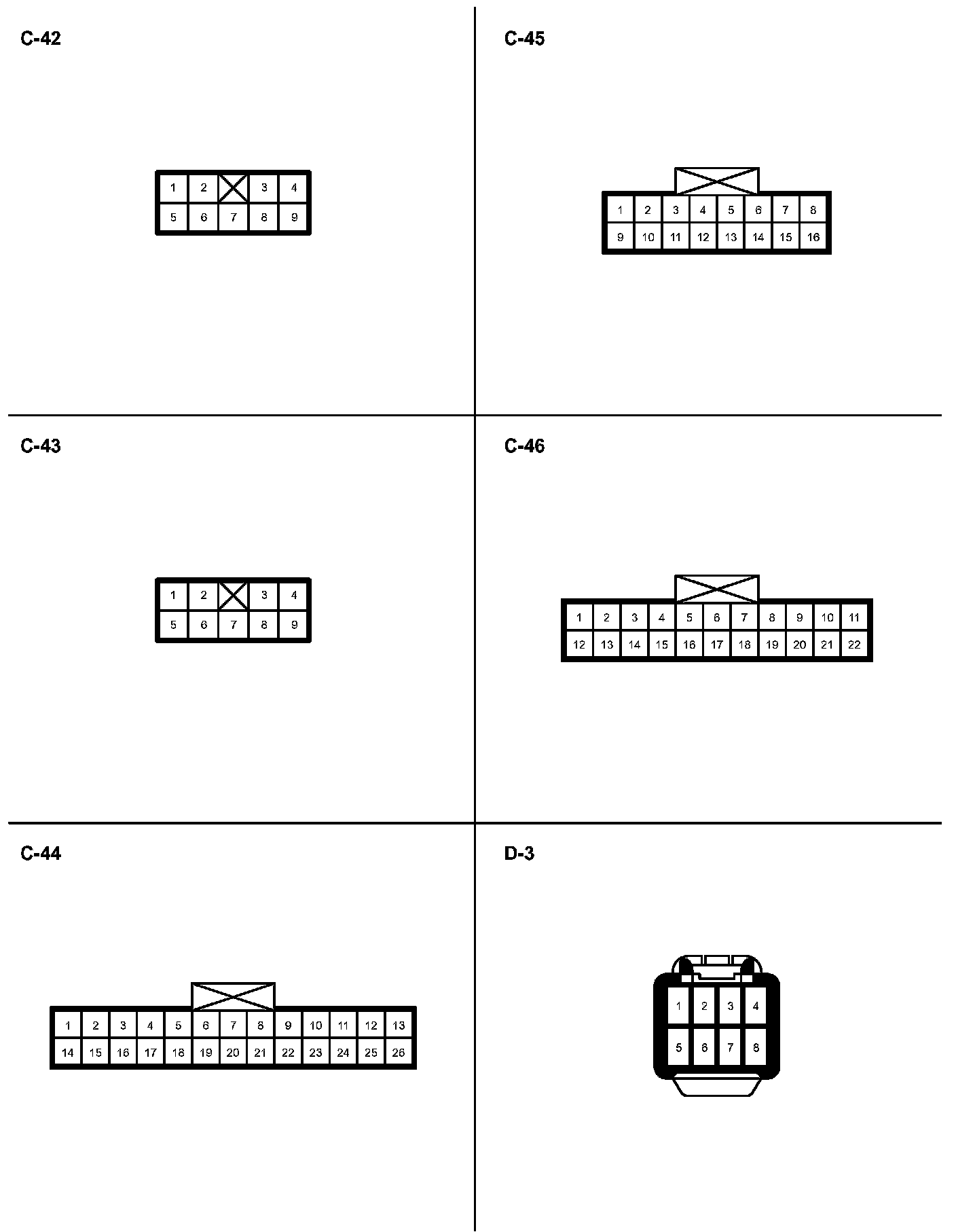

C-42 To D-3:

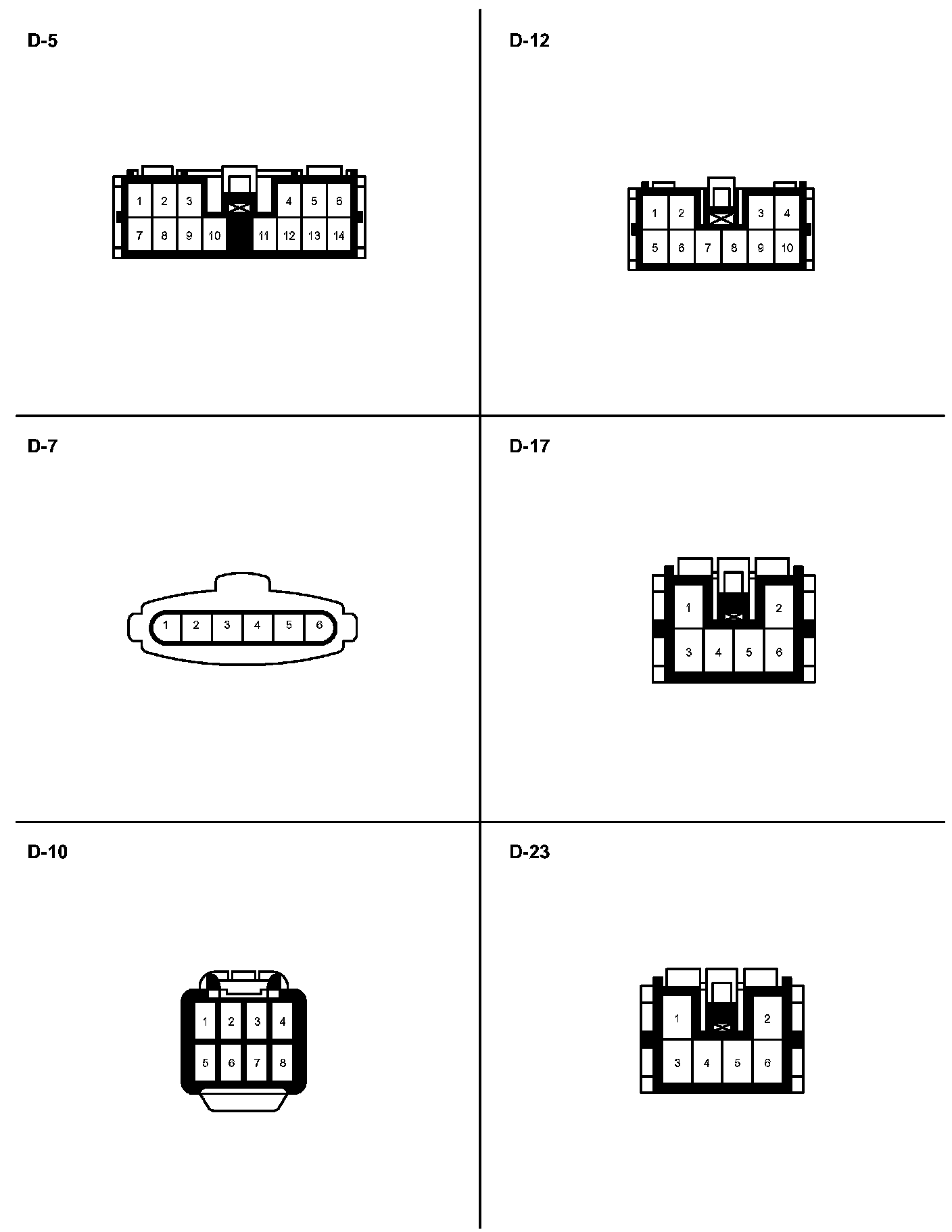

D-5 To D-23:

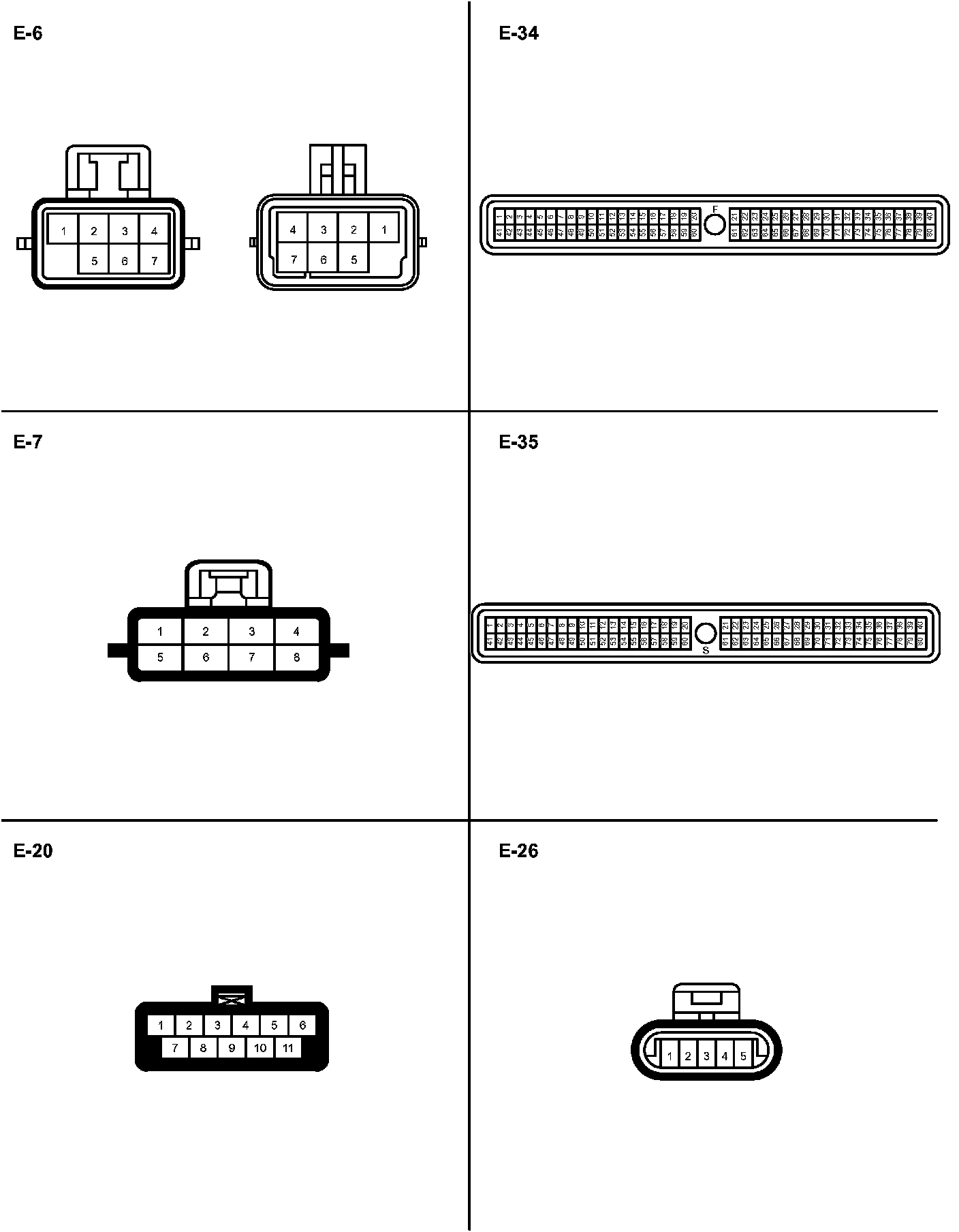

E-6 To E-26:

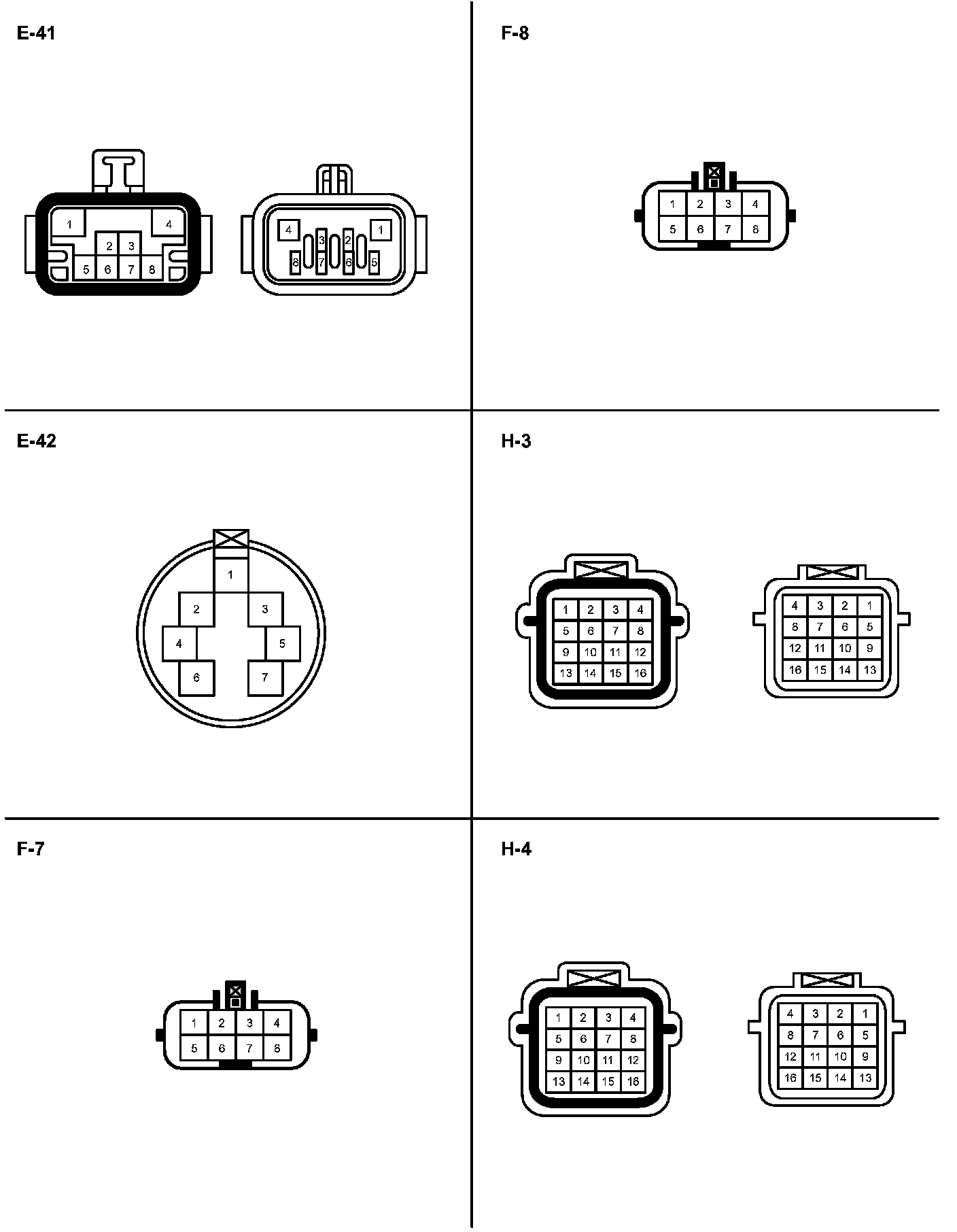

E-41 To H-4:

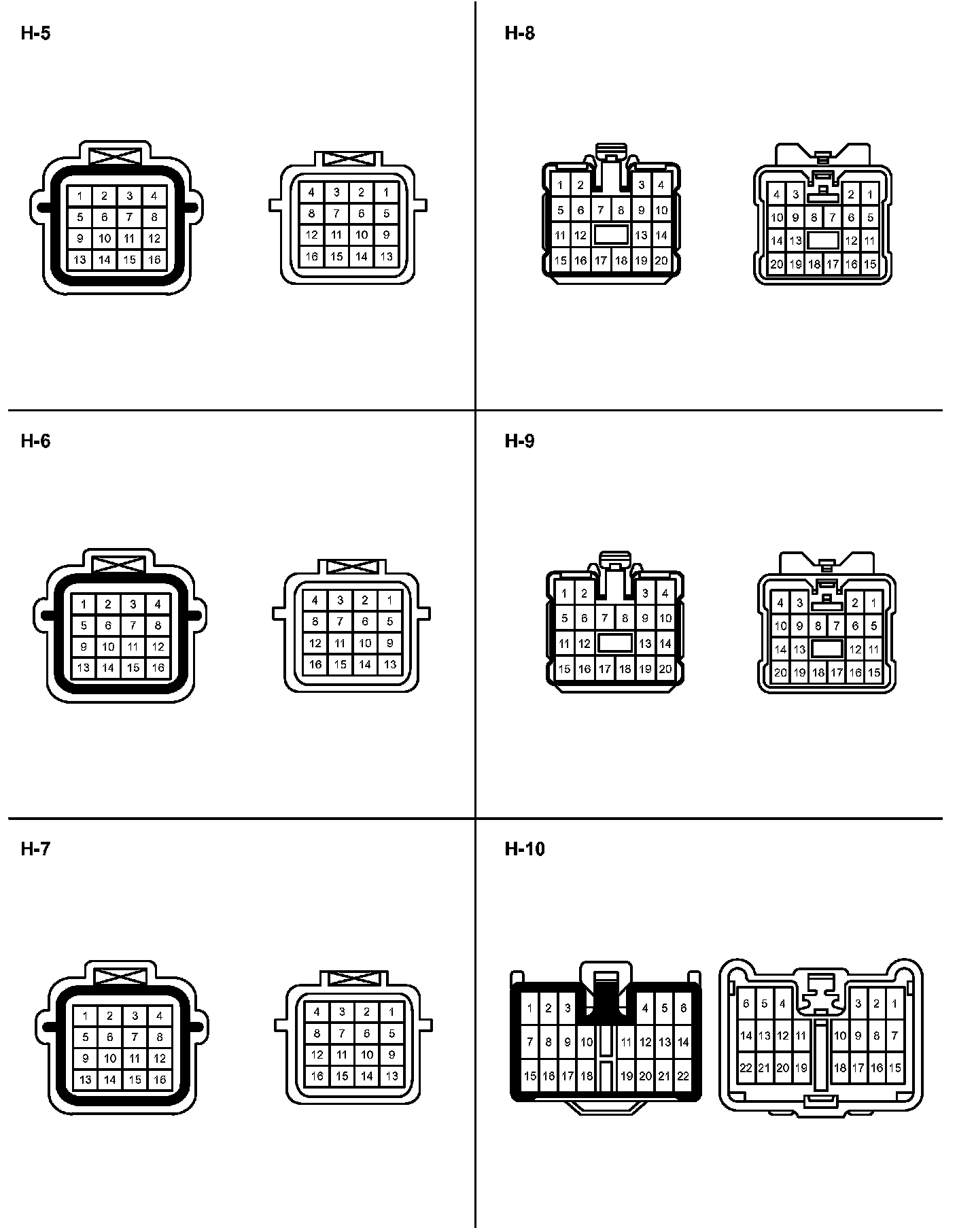

H-5 To H-10:



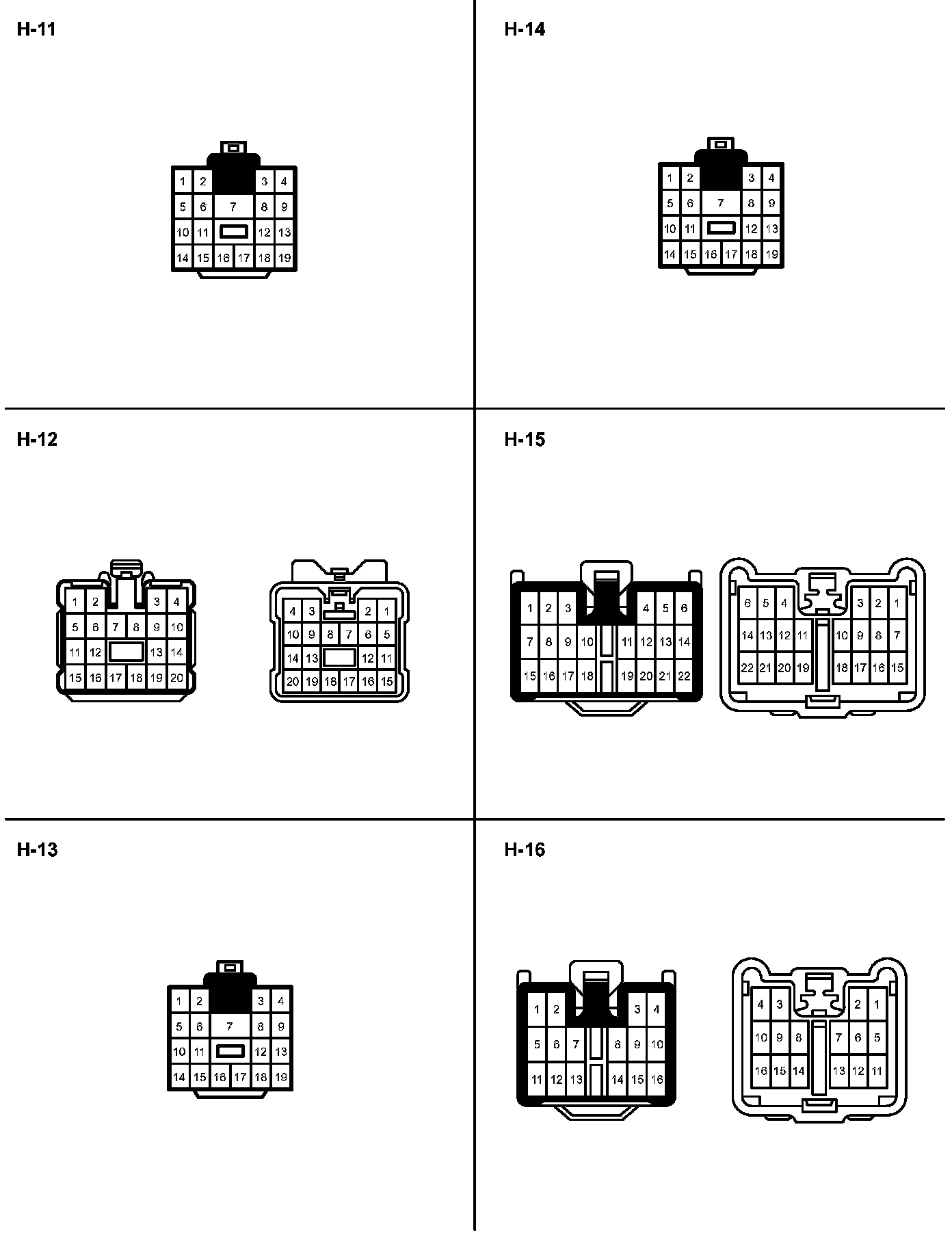

H-11 To H-16:

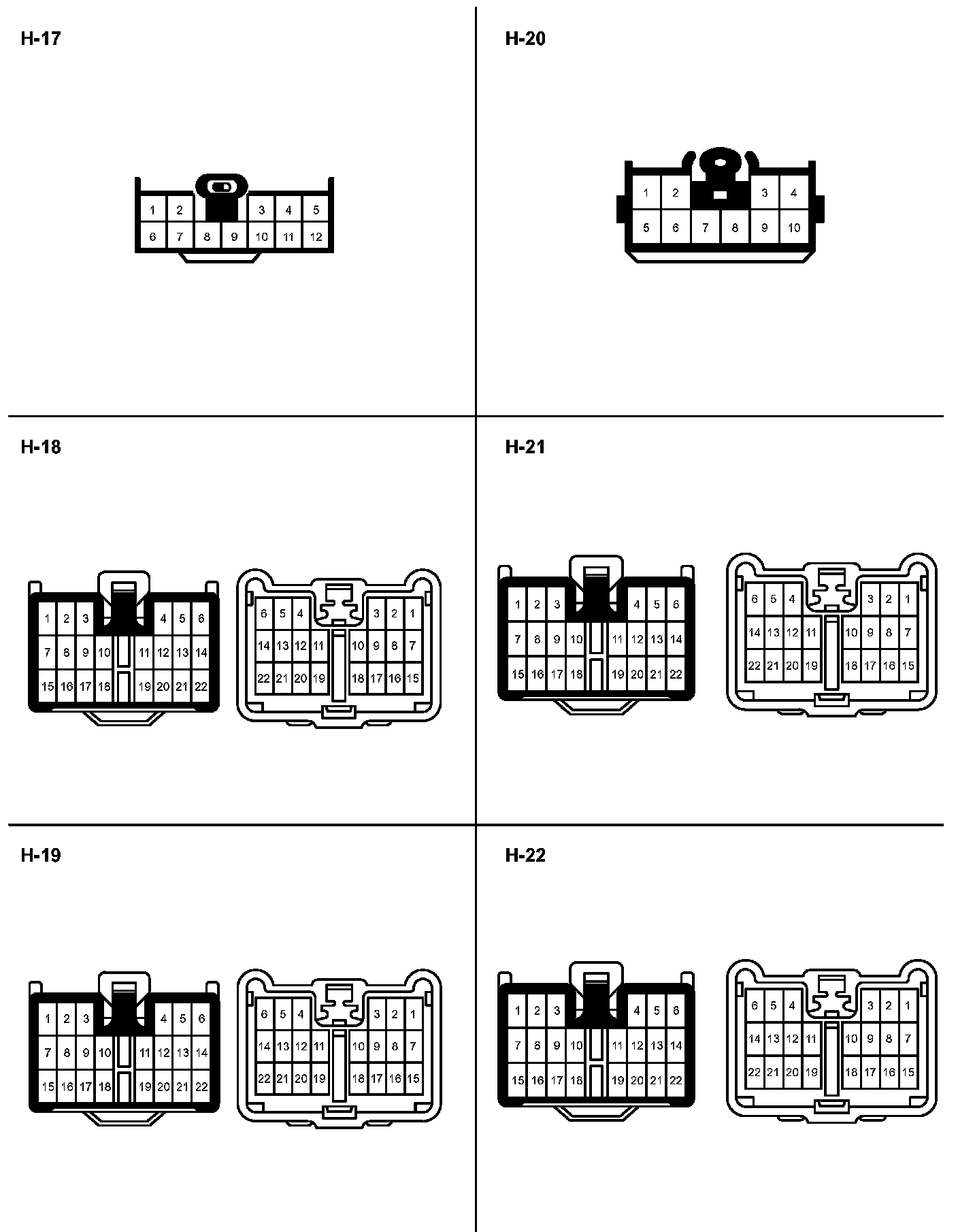

H-17 To H-22:

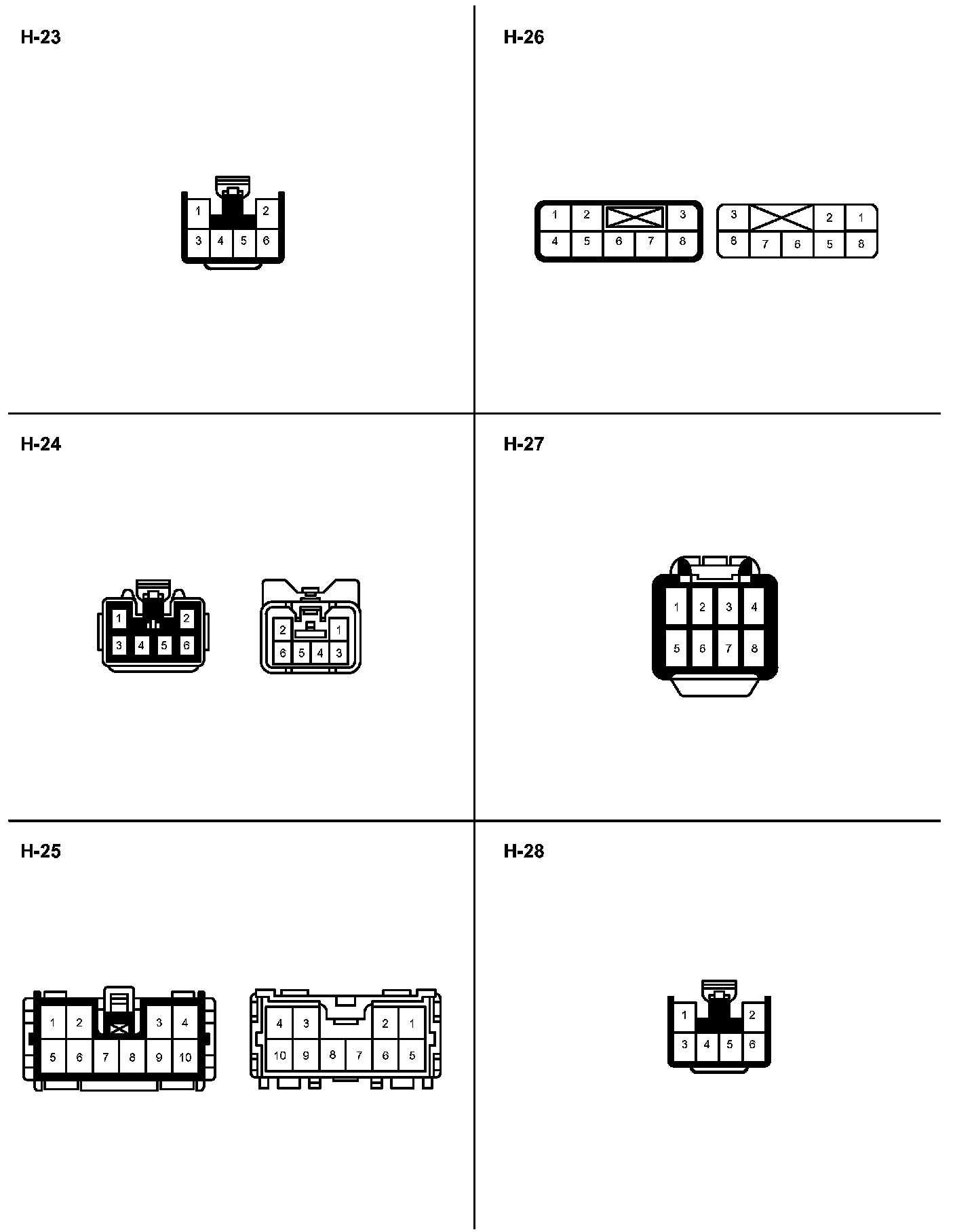

H-23 To H-28:

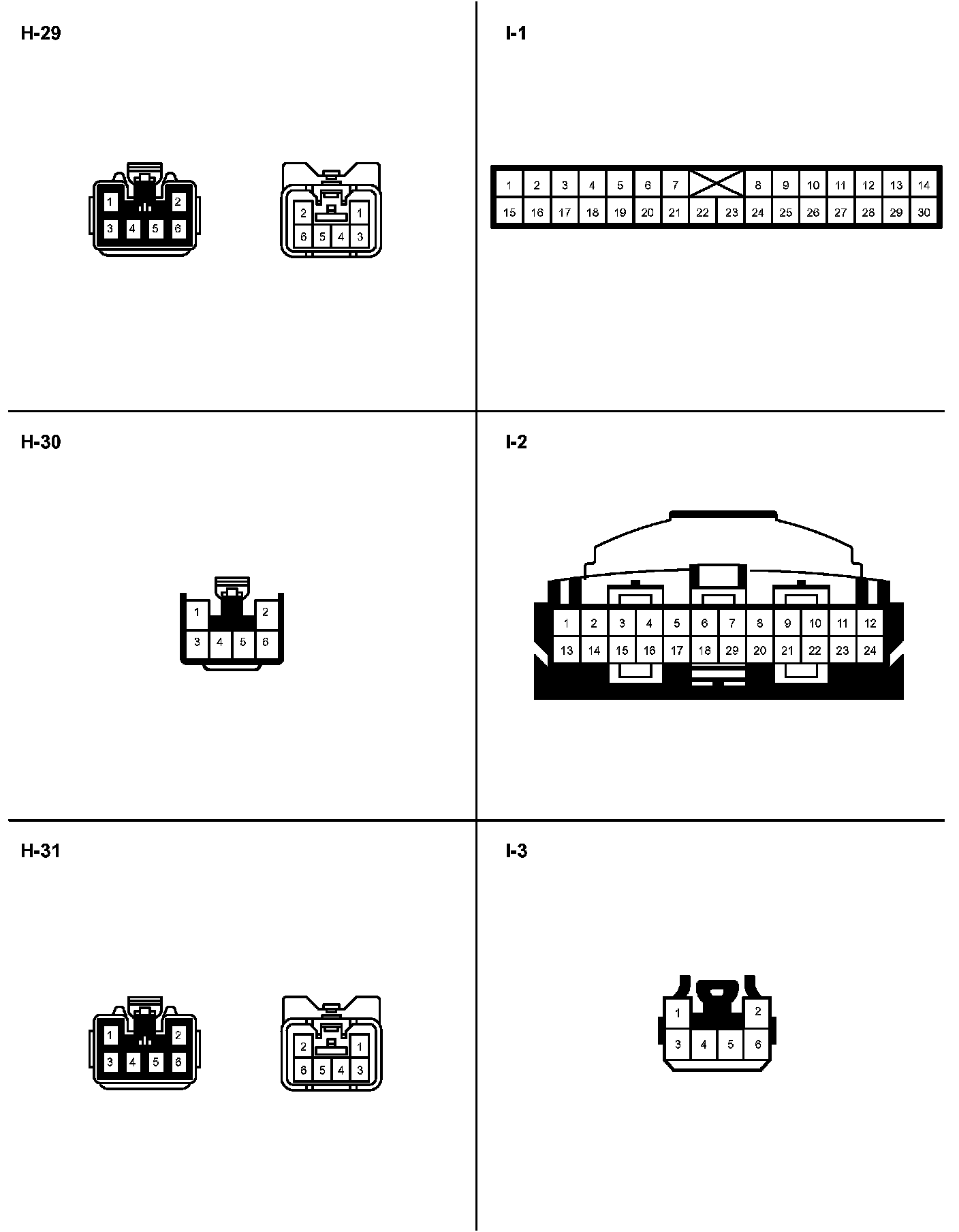

H-29 To I-3:

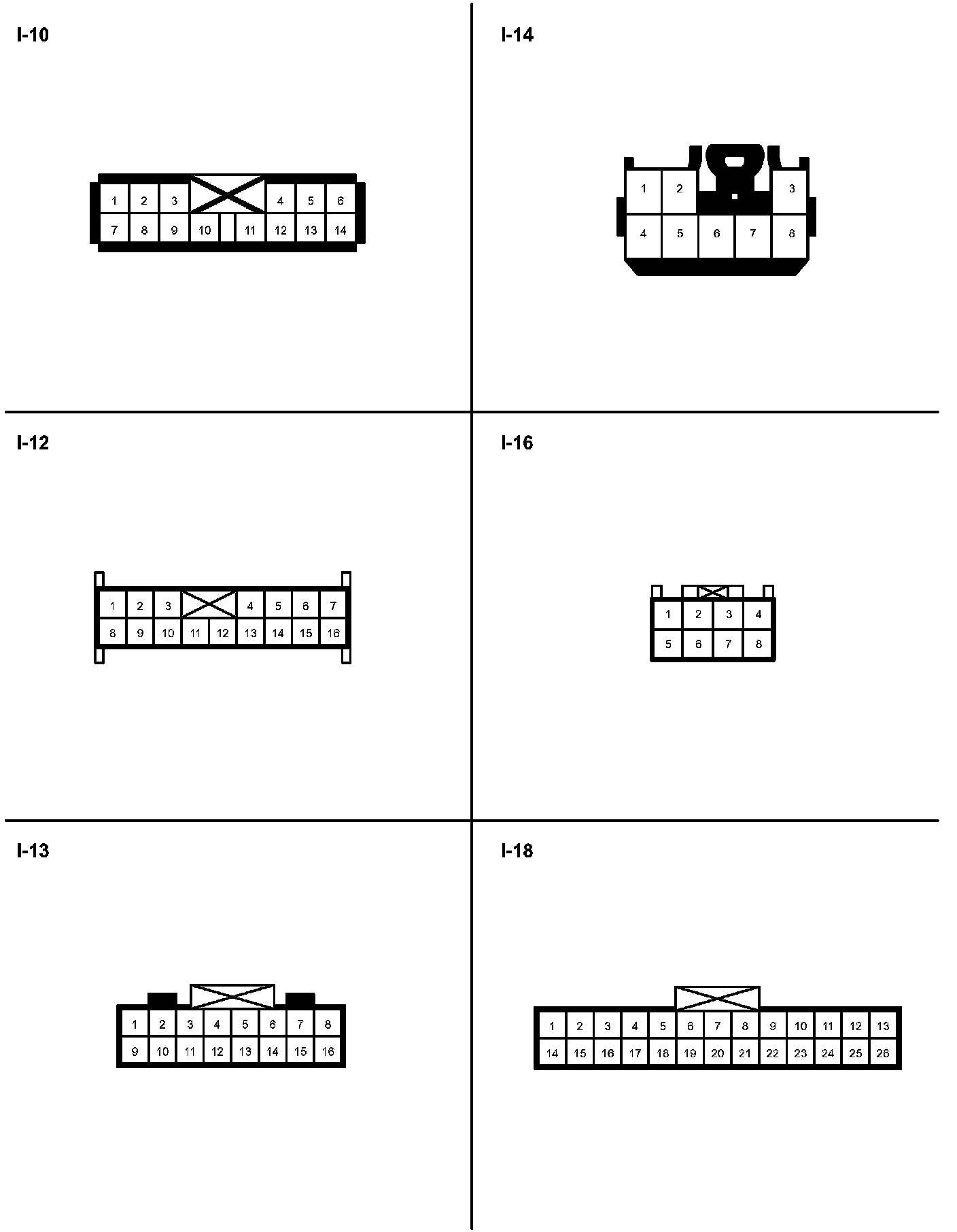

I-10 To I-18:

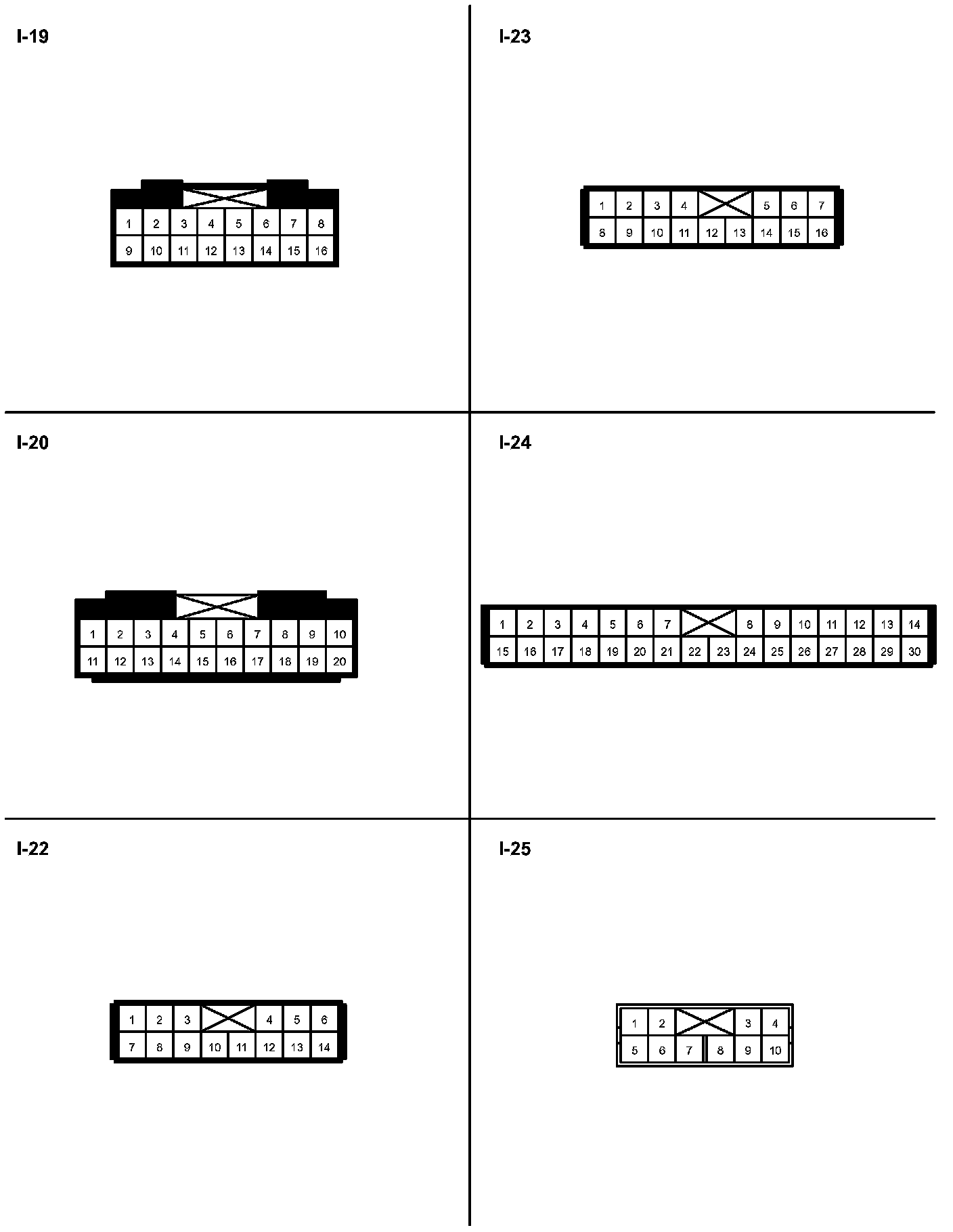

I-19 To I-25:

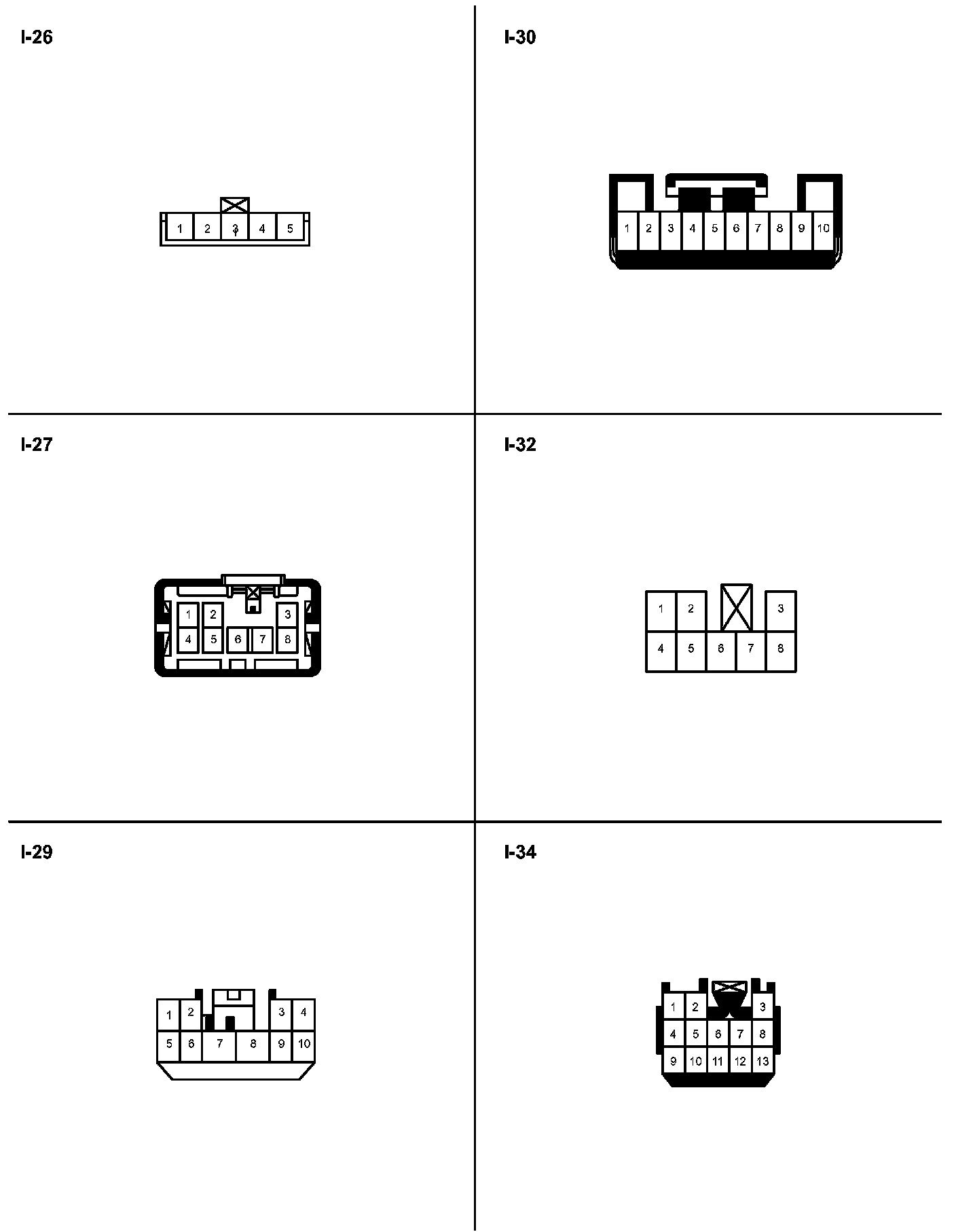

I-26 To I-34:

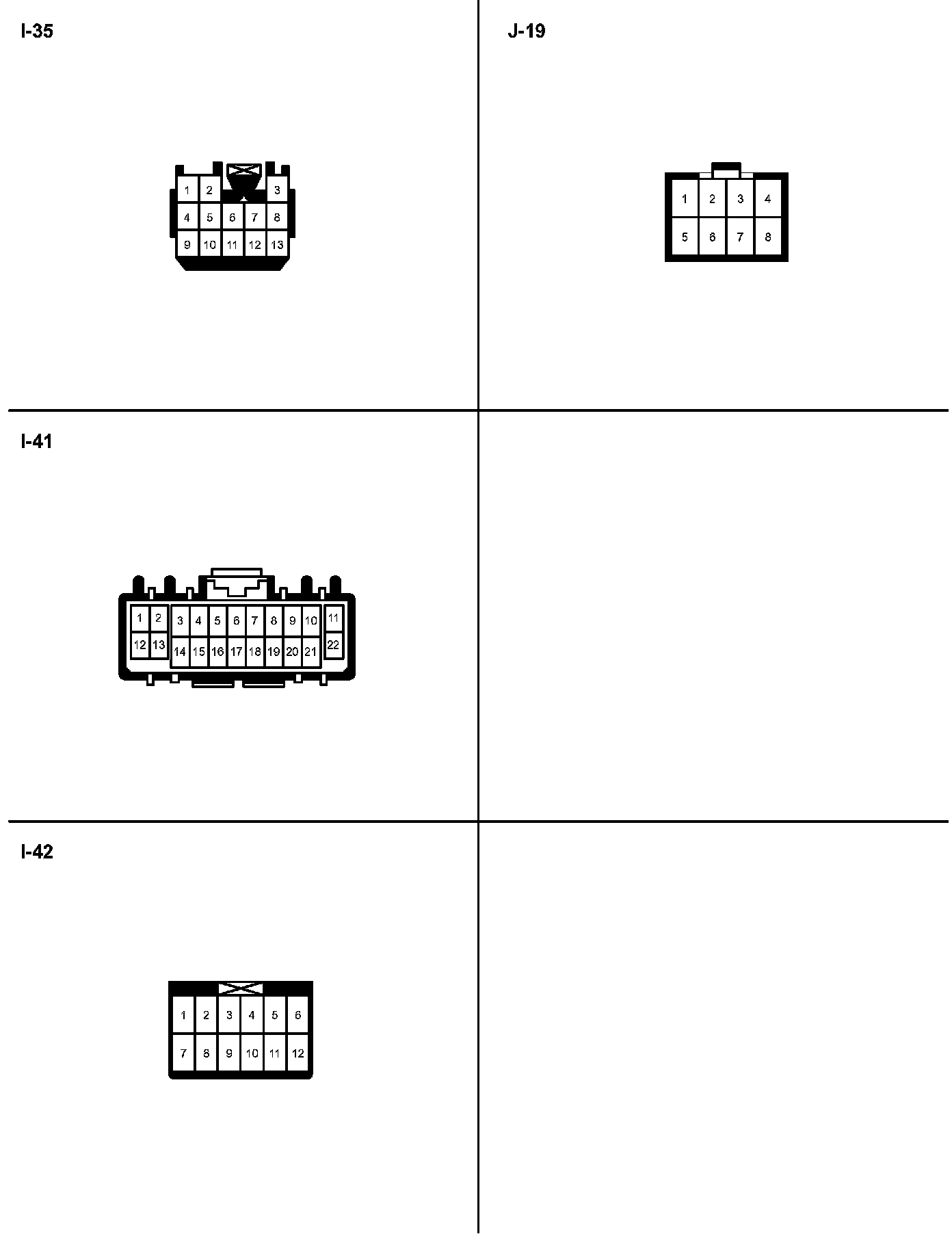

I-35 To J-19:
