Condenser Fan: Service and Repair

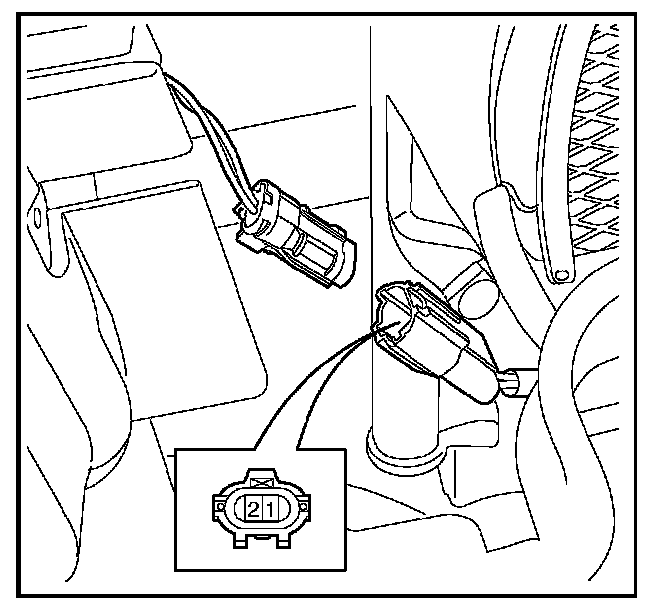

Condenser Fan1. Disconnect the condenser fan connector.
2. Connect the battery positive terminal to the condenser fan side connector terminal No. C-75-1 and negative to the No. C-75-2.
3. Check that the condenser fan is rotating correctly.
Caution: Compressor (PAG) oil to be used varies according to the compressor model. Be sure to apply oil specified for the model of compressor.

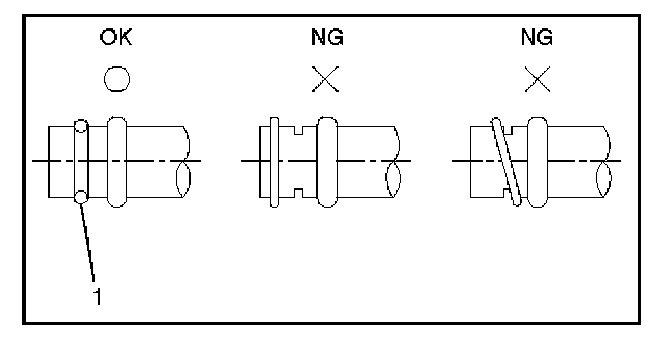

O-rings (2) must be closely aligned with the raised portion (1) of refrigerant line.

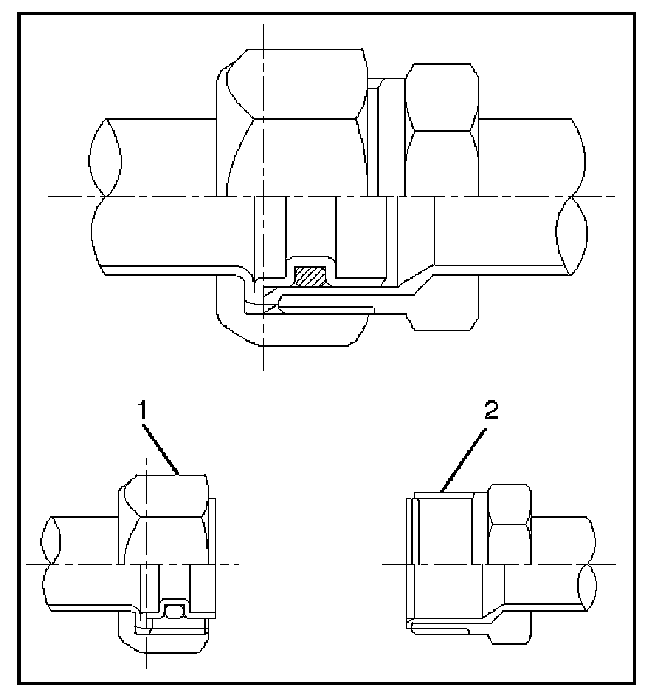

Insert the nut into the union.
First, tighten the nut by hand as much as possible, then tighten the nut to the specified torque.
