Brake Lamp: Service and Repair
Removal 1.
Disconnect the battery ground cable.
2.

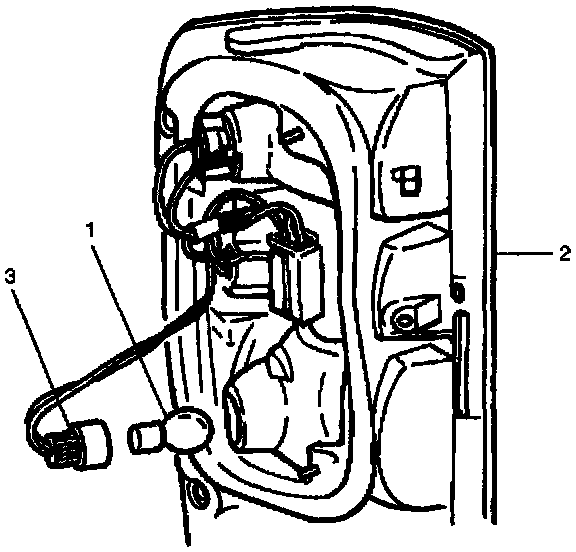

Remove three screws and release locks at two locations to remove the rear combination light assembly (2).
3.
Remove the socket (3) by turning it counterclockwise.
4.
Turn the bulb (1) counterclockwise while pushing it to remove it from the socket.
InstallationTo install, follow the removal steps in the reverse order.
