TC-2 Transmission Input Inspection Procedure (Use Tech 2)

Unit Inspection Procedure





This information describes the following inspection procedures referred to during SYMPTOM DIAGNOSIS and DIAGNOSIS BY ABS WARNING LIGHT ILLUMINATION PATTERN

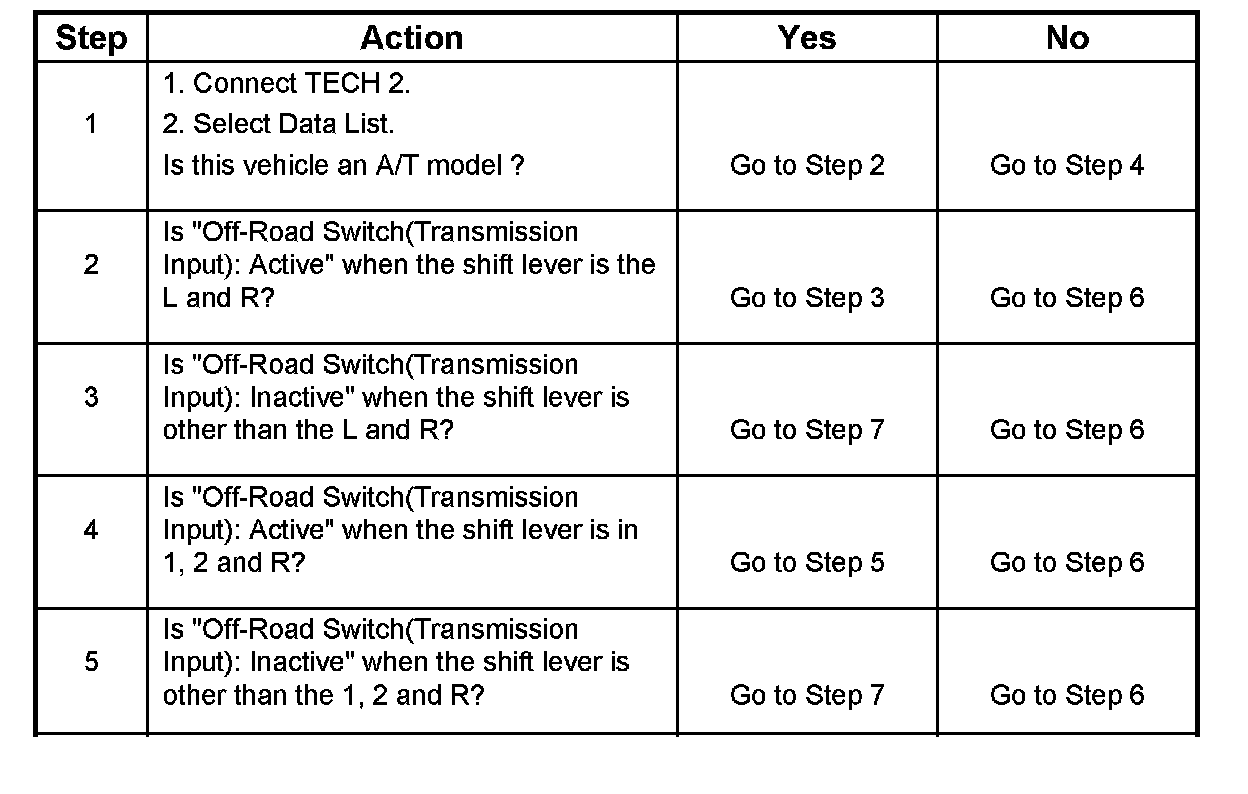

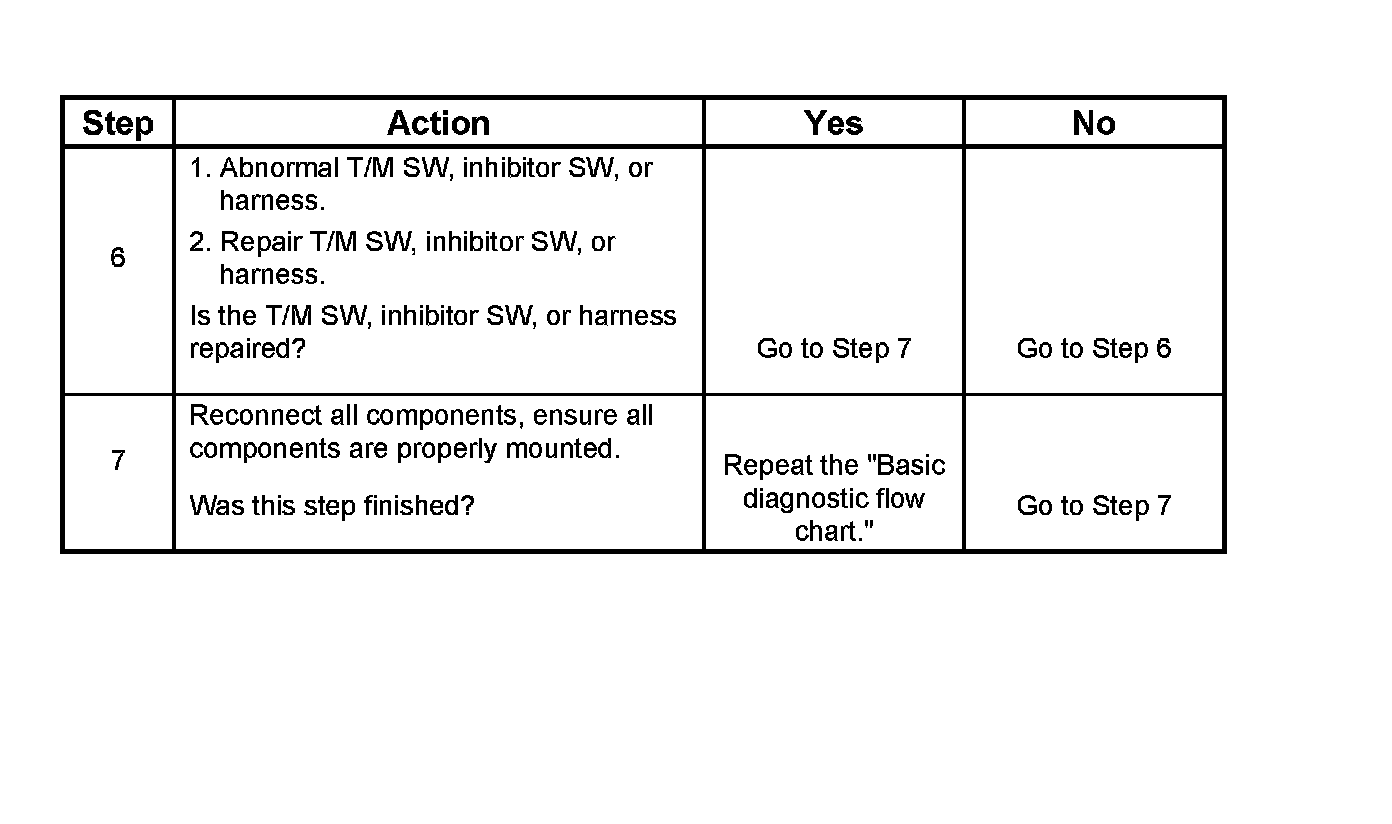

Chart TC-2 Transmission Input Inspection Procedure (Use TECH 2)
