C3

5. Left Front Of Engine:




121. Under Driver's Seat (Passenger Similar):




113. On Liftgate (Panel Removed):

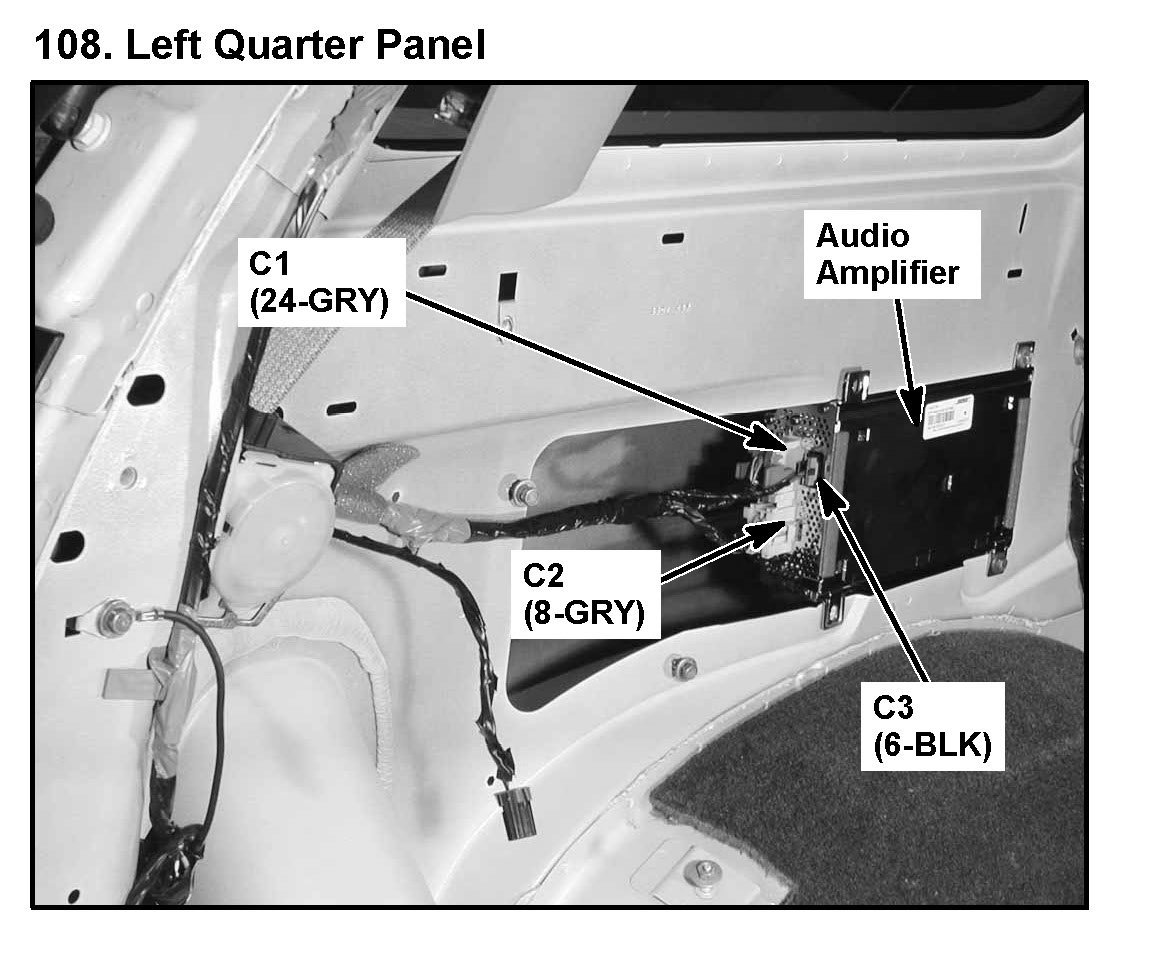

108. Left Quarter Panel:

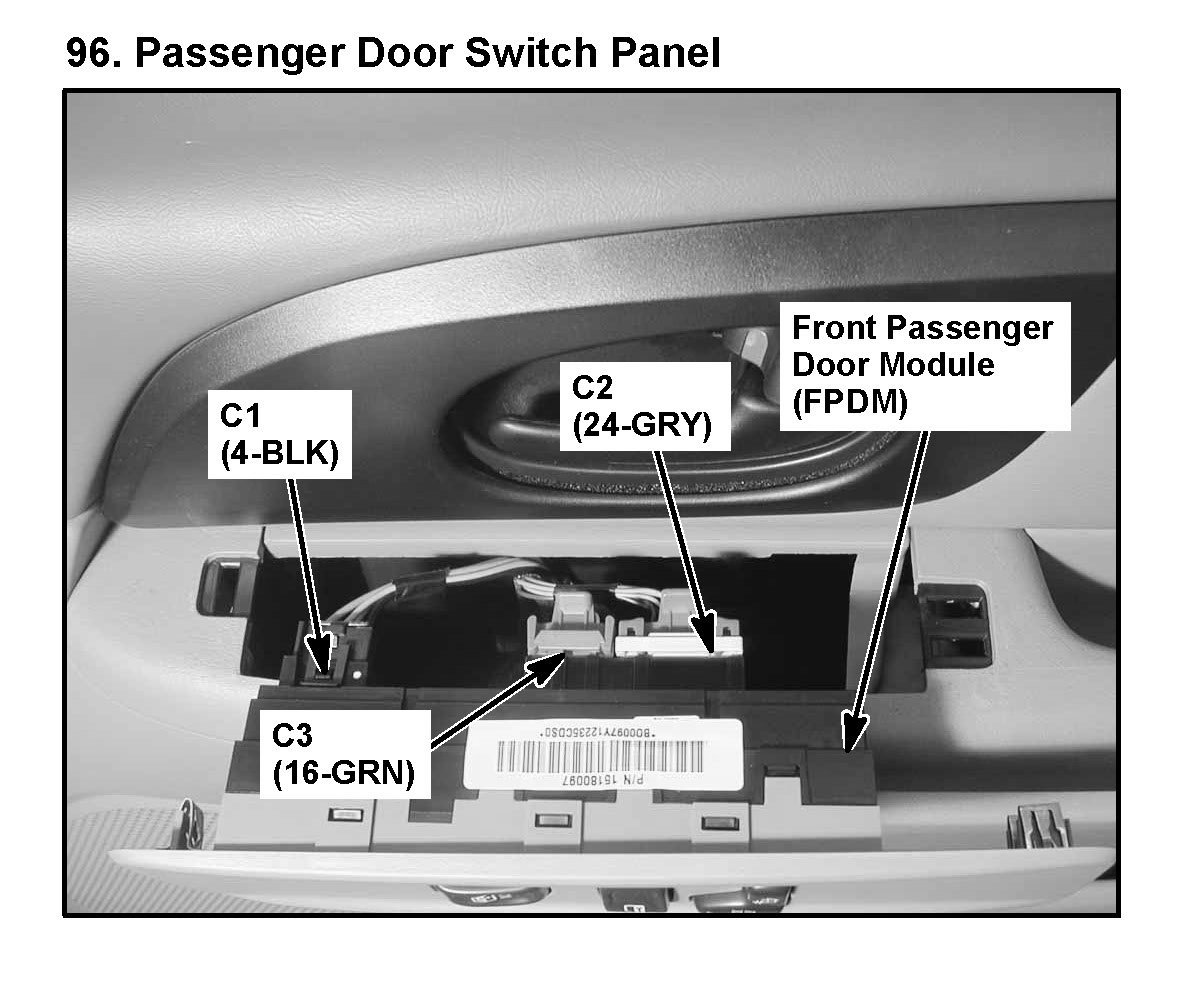

96. Passenger Door Switch Panel:




95. Driver Door Switch Panel:




71. Left Side Of Steering Column:




58. Behind Left Side Of I/P:




53. Rear Fuse Block (Cover Removed):
