Resonator: Service and Repair

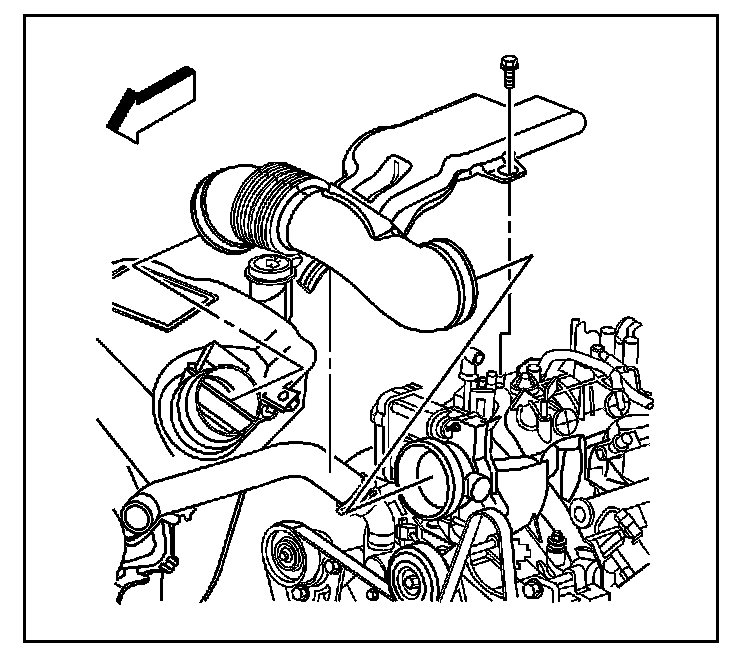

Air Cleaner Resonator Outlet Duct ReplacementRemoval Procedure
1. Loosen the clamps at the following:
- Mass airflow/intake air temperature (MAF/IAT) sensor.
- Throttle body
2. Remove the air cleaner outlet duct bolt.
3. Remove the air cleaner outlet duct.

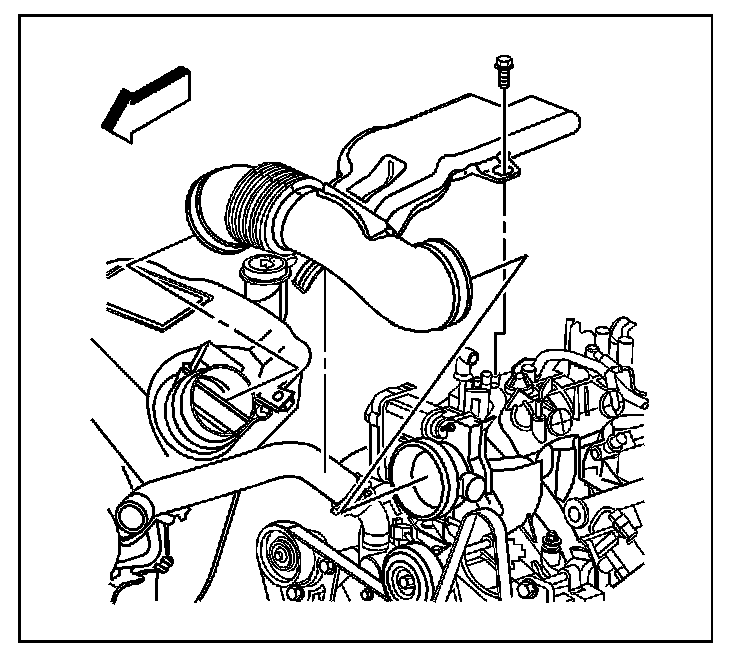

Installation Procedure
1. Install the air cleaner outlet duct.
2. Install the air cleaner outlet duct bolt.
Tighten the bolt to ...............................10 N.m (89 lb in).
3. Tighten the clamps at the following:
- MAF/IAT sensor.
- Throttle body
Tighten the clamps to .........................7 N.m (62 lb in).
