Fuel Line Coupler: Service Precautions

Fuel Tube / Quick - Connector Fittings

Precautions
- Do not light a match or create a flame.
- Keep flames away from your work area to prevent flammable materials from catching fire.
- Disconnect battery ground cable to prevent electrical shorts.
- Pre-treat piping system or associated parts from thermal damage or from spattering when welding or similar heat-generating work.




Cautions During Work

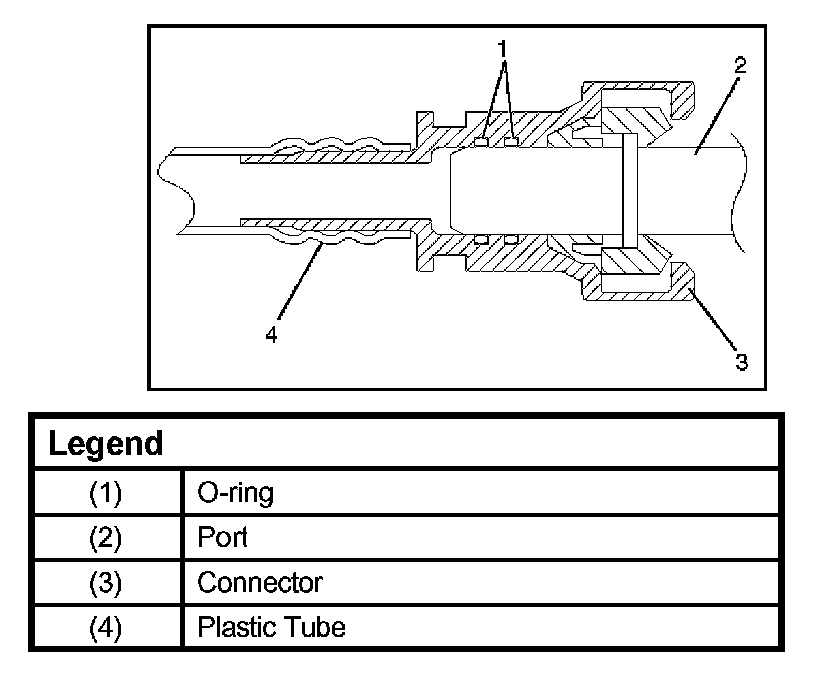

NOTE: An O-ring inside the quick connector provides the seal between the quick connector and the port. Be careful not to damage the mating surfaces and O-ring when attaching the connector. Do not allow foreign material to enter the connector or the port.

Do not expose the assembly to battery electrolyte or do not wipe the assembly with a cloth used to wipe off spilt battery electrolyte.
Piping that has been splattered with battery electrolyte or battery electrolyte soaked cloth that was wiped on the piping cannot be used.
