Input Internal Gear, Reaction Shaft Installation
Input Internal Gear, Reaction Shaft Installation 1.

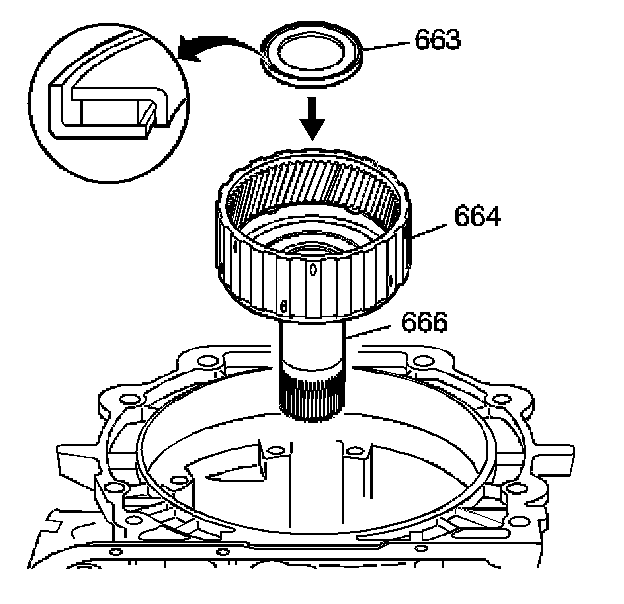

Install the input internal gear (664) and reaction carrier shaft (666) assembly into the
sun gear shell. Index the reaction carrier shaft spline into the reaction carrier.
2.
Install the input carrier to reaction shaft thrust bearing assembly (663).
