Actuator Replacement - Front Drive Axle

Actuator Replacement - Front Drive Axle

Removal Procedure
1. Raise the vehicle.





2. Disconnect the electrical connector from the actuator assembly.

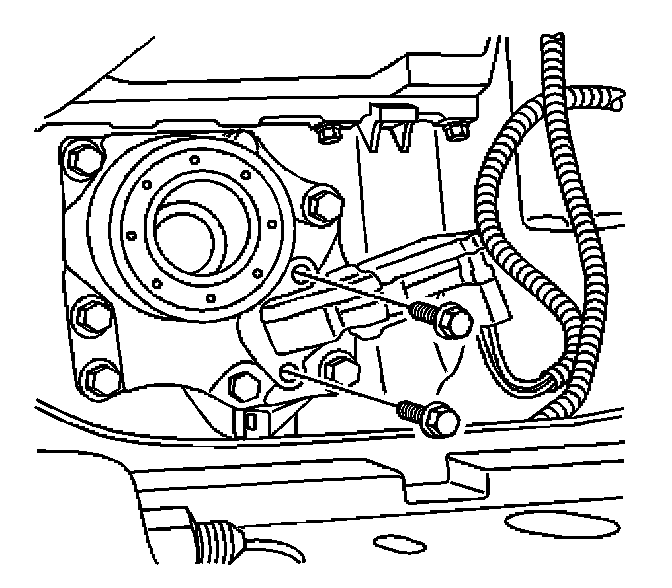

3. Remove the actuator assembly bolts.
4. Remove the actuator assembly.

Installation Procedure





1. Install the actuator assembly.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the actuator assembly bolts.
Tighten the bolts to 6 Nm (53 inch lbs.).
3. Connect the electrical connector to the actuator assembly.
4. Lower the vehicle.
