Power Mirror Defoggers

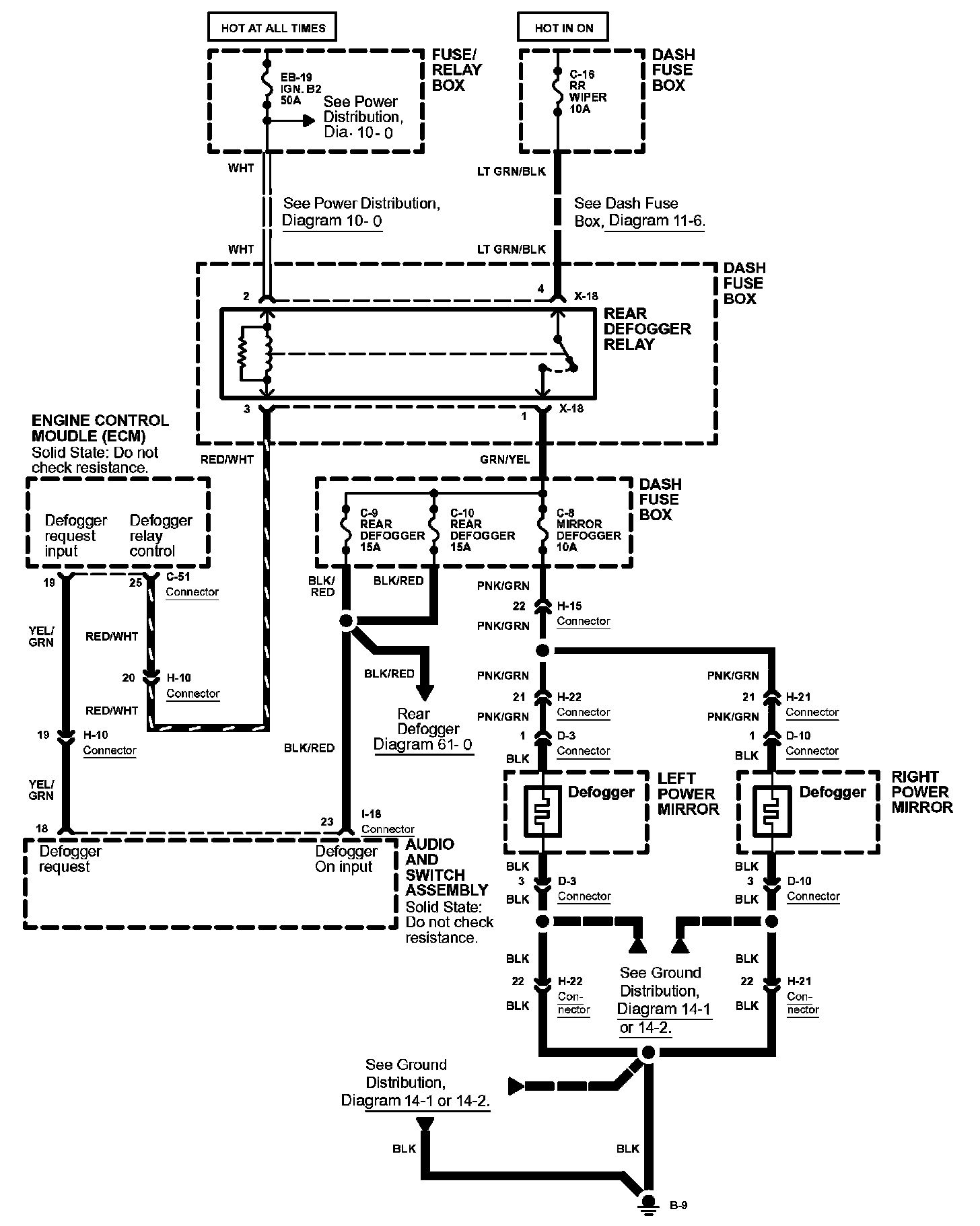

Diagram 148-0 (With Rear Defogger):
Diagrams: Other diagrams referred to by number within these diagrams can be found at Diagrams by Number. Diagrams By Number
Connector Views: Connector terminal views for the connectors shown within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
