Transfer Case

General Description

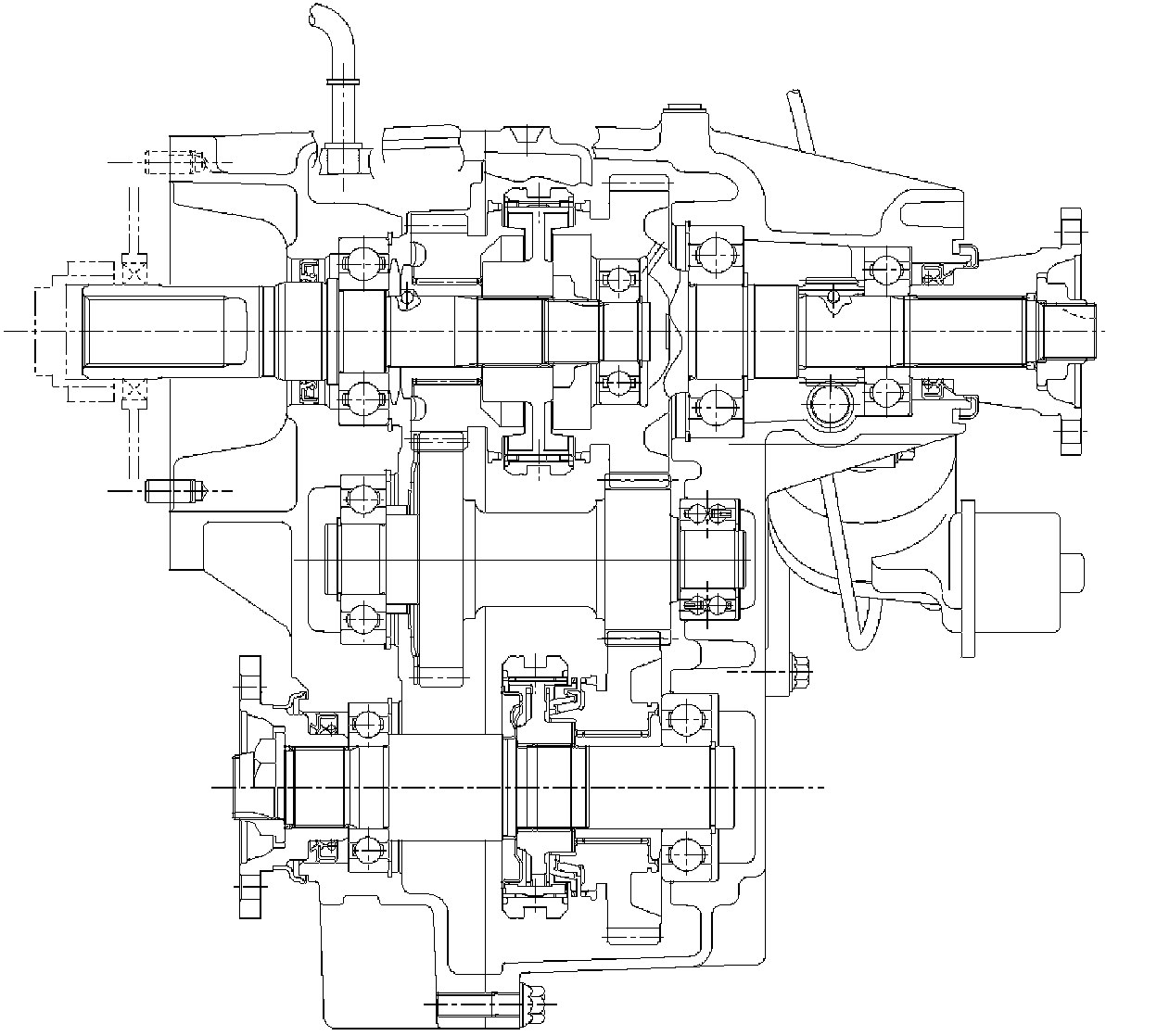

Transfer Case (for M/T)

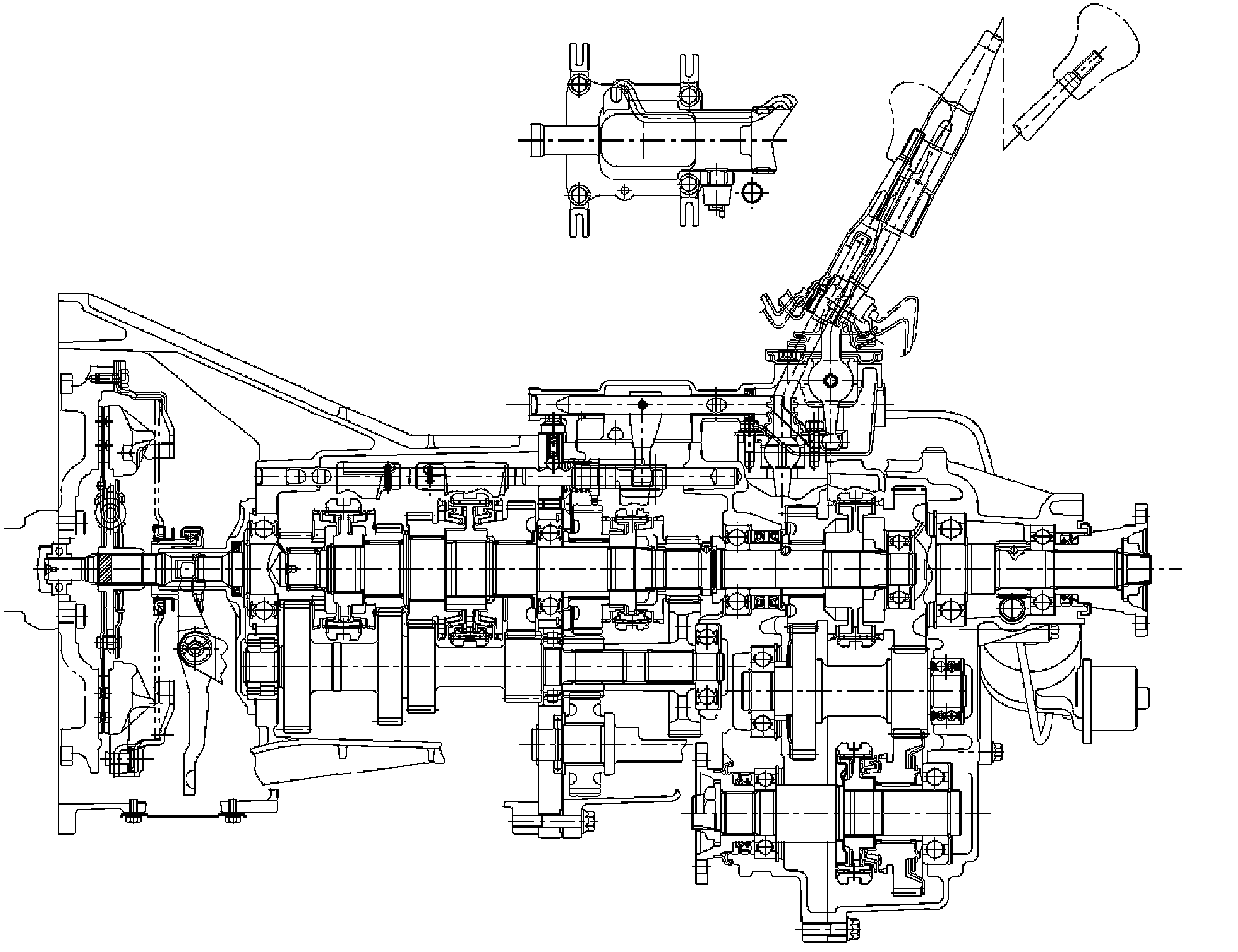

Transfer Case (for A/T)

The transfer case is used to provide a means of providing power flow to the front axle. The transfer case also provides a means of disconnecting the front axle, providing better fuel economy and quieter operation when the vehicle is driven on improved roads where fourwheel drive is not required. In addition, the transfer case provides an additional gear reduction when placed in low range, which is useful when difficult off-road conditions are encountered.
A floor mounted shift lever is used to select the high-low range. When four wheel drive switch has been turned on, the four wheel drive indicator light is designed to come on and the front axle has been engaged.
