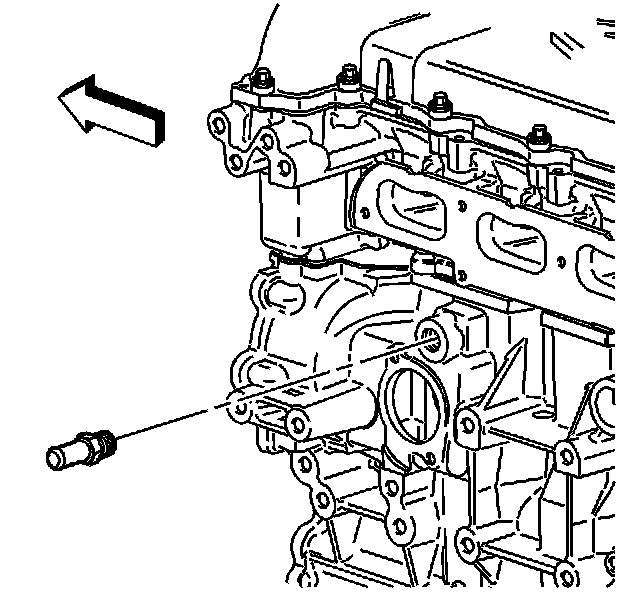

Heater Outlet Hose Fitting Installation
Heater Outlet Hose Fitting Installation 1.
Apply sealant GM P/N 12346004 (Canadian P/N 10953480) or equivalent to the heater outlet hose fitting threads.
Notice: Refer to Fastener Notice in Cautions and Notices.
2.
Install the heater outlet hose fitting.
Tighten the heater outlet hose fitting to 45 N.m (33 lb ft).
