Valve Rocker Arm and Valve Lash Adjuster Installation
Valve Rocker Arm and Valve Lash Adjuster Installation 1.
Lubricate and fill the valve lash adjusters with engine oil.
2.

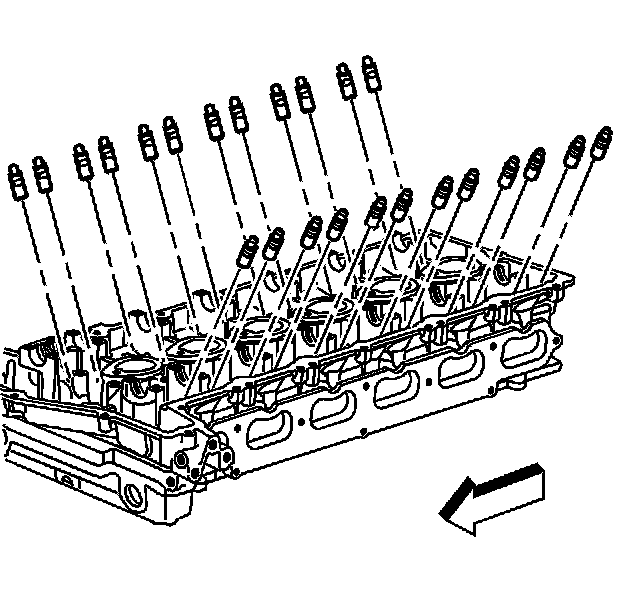

Install the valve lash adjusters in their original locations.
3.
Lubricate the valve rocker arm roller, needle bearings, valve pallet, and lash adjuster pocket.
4.

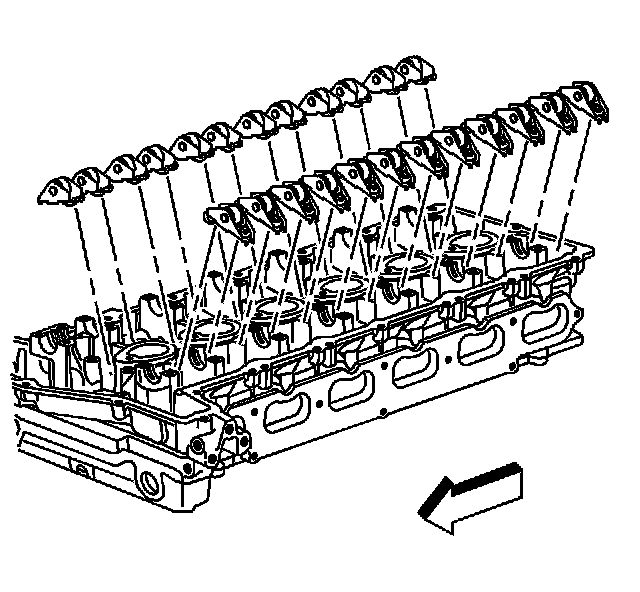

Install the valve rocker arms in their original locations.
