Crankshaft Balancer Removal

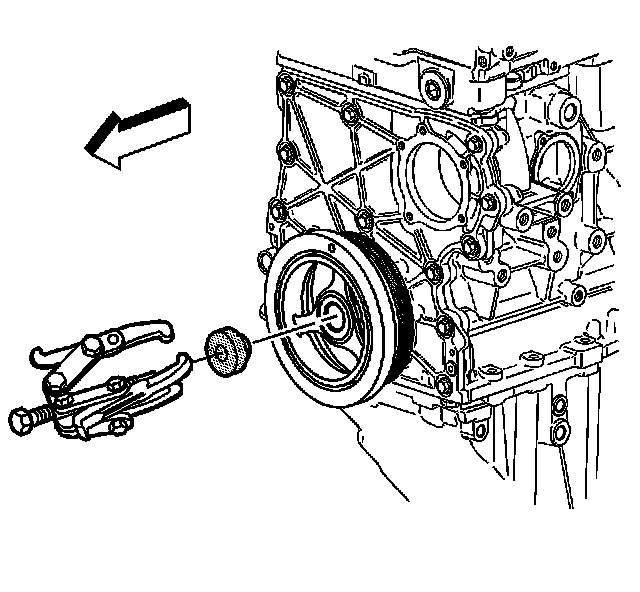

Crankshaft Balancer RemovalTools Required:J 41816-2
Crankshaft End Protector
1.
Remove the crankshaft balancer bolt.
2.
Install J 41816-2 into the end of the
crankshaft.
Important: Do not pull on outer edge of the crankshaft balancer. 3.
Use a three jaw puller to remove the crankshaft balancer.
4.
Remove J 41816-2.
