Timing Chain and Sprockets Removal
Timing Chain and Sprockets Removal 1.

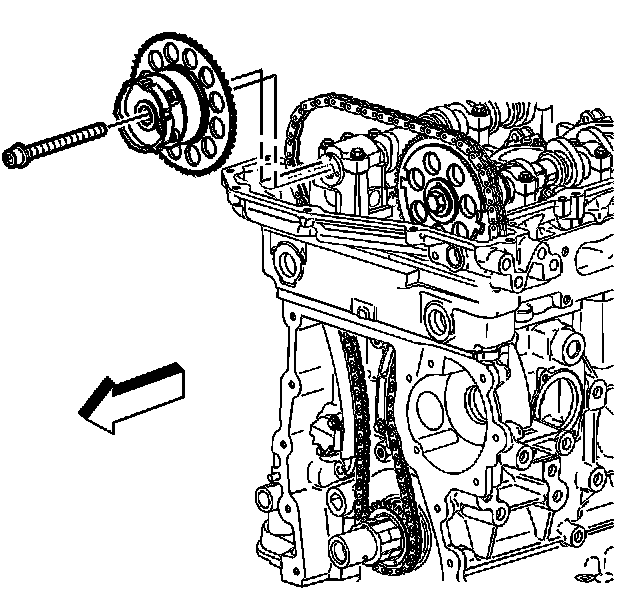

Remove the exhaust
camshaft position actuator bolt.
2.
Remove the exhaust
camshaft position actuator.
3.
Remove the intake camshaft sprocket bolt.
4.
Remove the intake camshaft sprocket.
5.
Remove the
timing chain.
6.
Remove the crankshaft sprocket.
