83. Secondary Fluid Pump Assembly Installation (M33 Model Only)



Secondary Fluid Pump Assembly Installation (M33 Model Only)





1. Important: Be sure check ball is in the proper place before the secondary fluid pump is bolted on to the valve body.

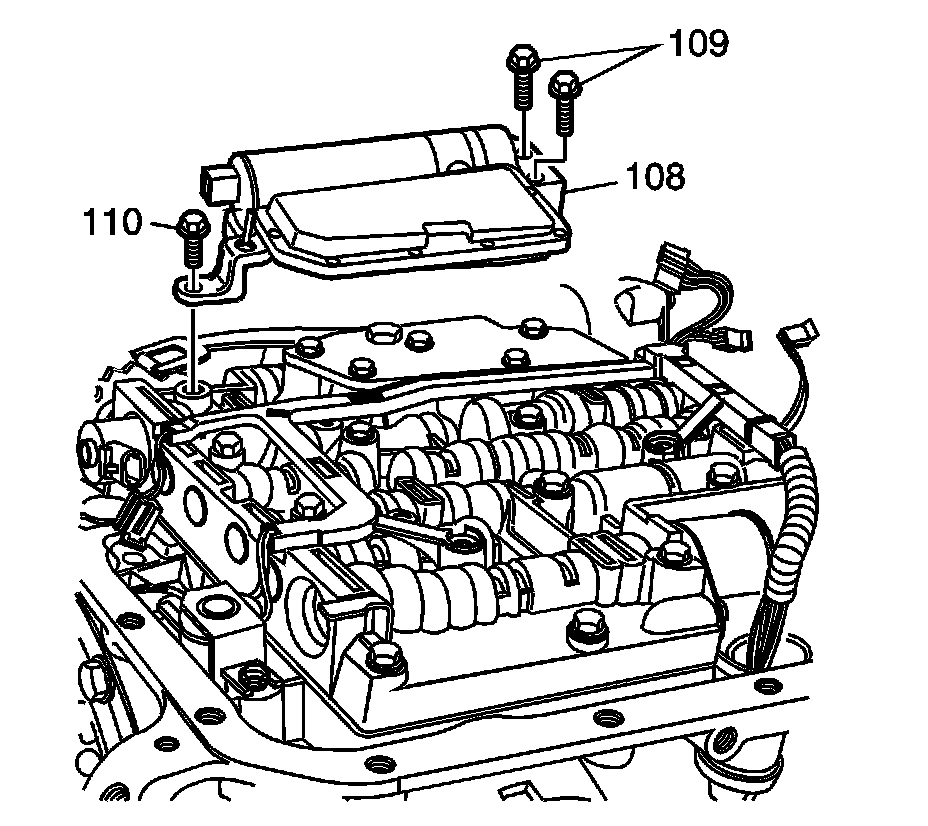

Install the secondary fluid pump (108) on the valve body.

2. Notice: Refer to Fastener Notice in Service Precautions.

Install the secondary fluid pump bolts (109 and 110).
^ Tighten the secondary fluid pump bolts to 11 - 14 Nm (8 - 10 ft. lbs.).

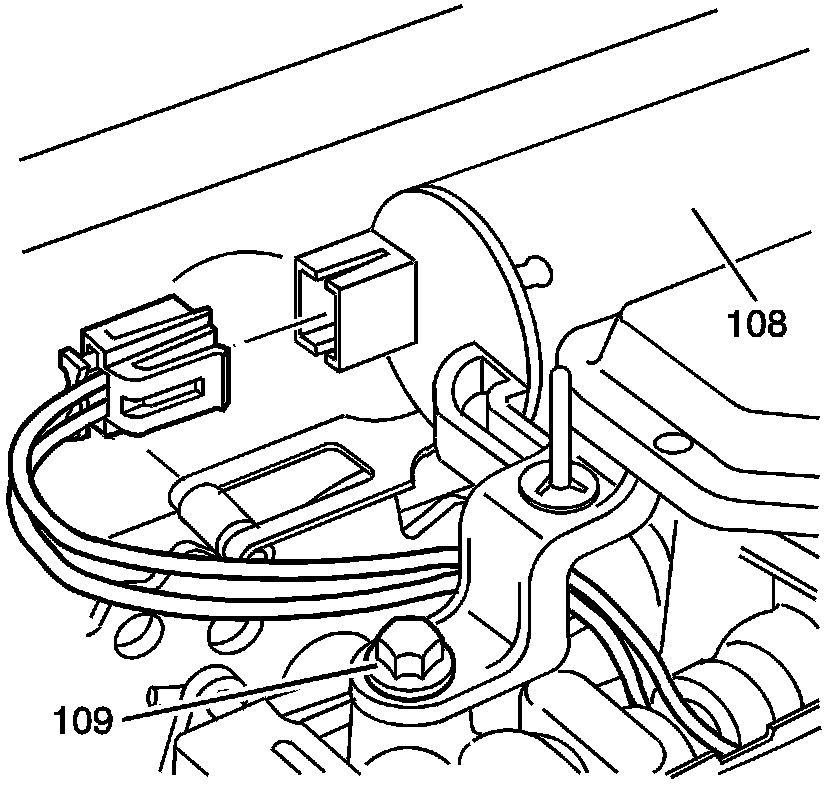

3. Important: Wiring harness connector for the secondary fluid pump must pass under the pump bracket as shown.

Connect the electrical connector to the secondary fluid oil pump (108).
