Brake Caliper Bracket Replacement

Brake Caliper Bracket Replacement

Removal Procedure

Caution: Refer to Brake Dust Caution in Service Precautions.

Notice: Refer to Brake Caliper Notice in Service Precautions.




1. Remove the front brake caliper.

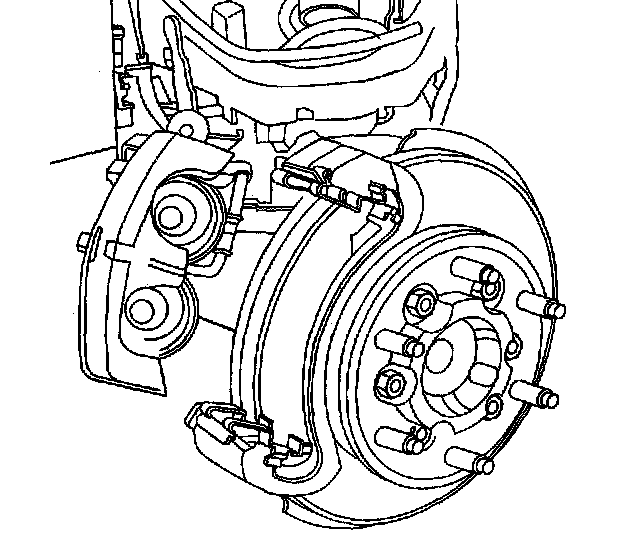

2. Remove the brake pads from the mounting bracket.

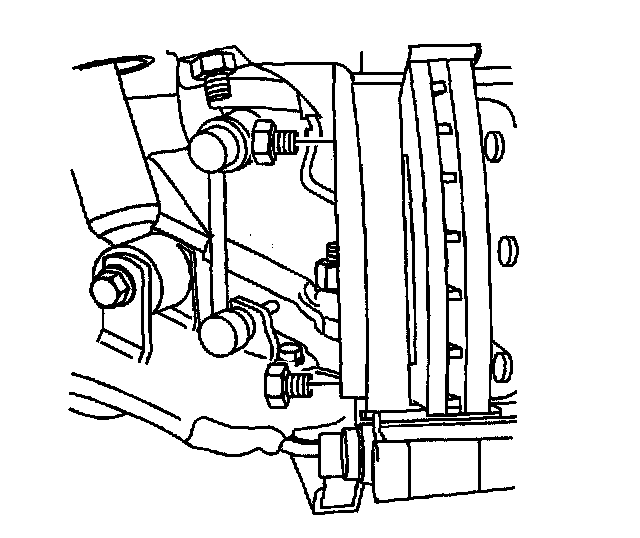

3. Remove the mounting bolts for the brake caliper mounting bracket.

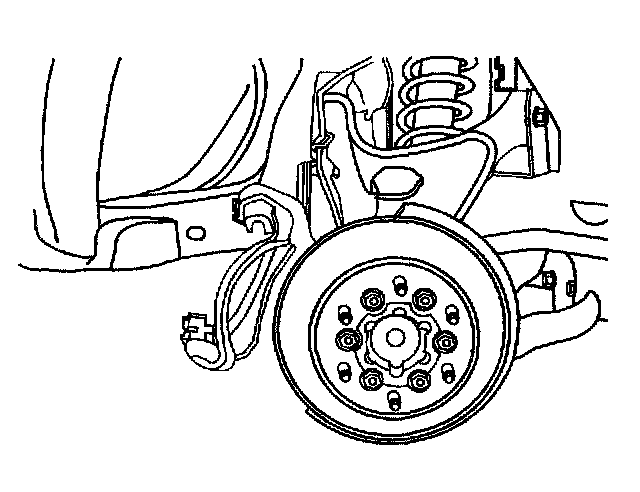

4. Remove the brake caliper mounting bracket.

Installation Procedure

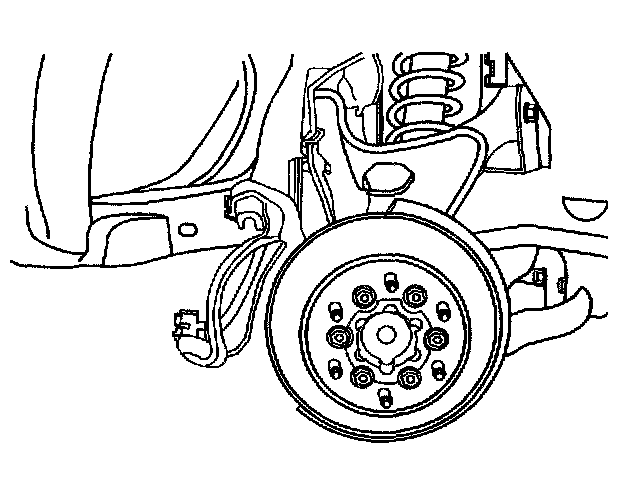

1. Position the mounting bracket on the steering knuckle.

Notice: Refer to Fastener Notice in Service Precautions.

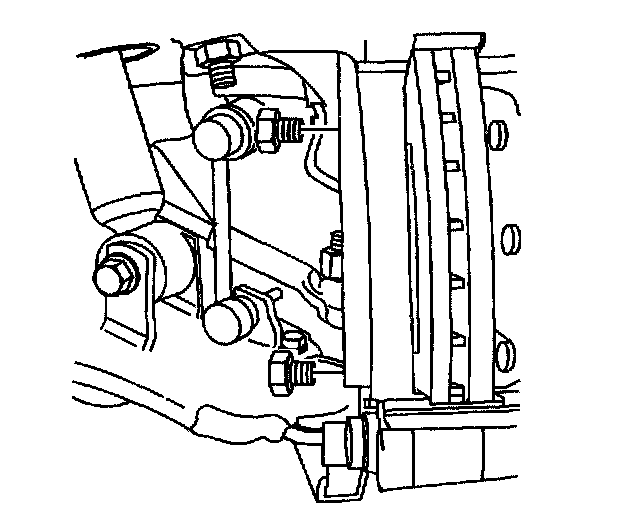

2. Install the mounting bolts bracket.
^ Tighten the mounting bolts to 175 Nm (129 ft. lbs.).
3. Install the brake pads in the mounting bracket.





4. Install the brake caliper.
