Operation CHARM
: Car repair manuals for everyone.
Home
>>
Isuzu
>>
2007
>>
i-370 4WD L5-3.7L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Heating, Ventilation, and Air Conditioning
>>
High or Low Temperature Control Effort
High or Low Temperature Control Effort
High or Low Temperature Control Effort
Step 1 - Step 11:

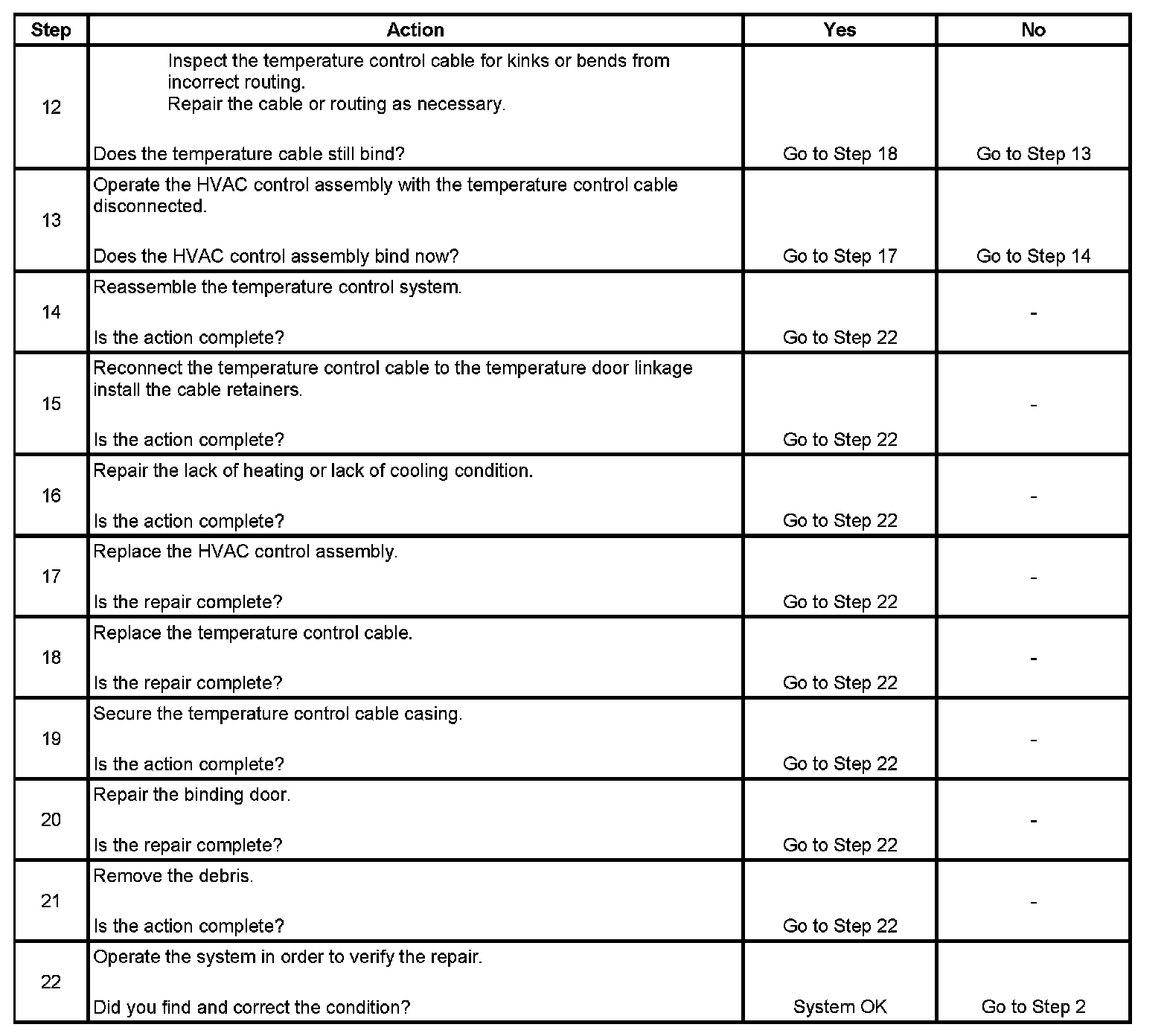

Step 12 - Step 22:
