Air Door: Locations

Air Mix Door and Mode Door

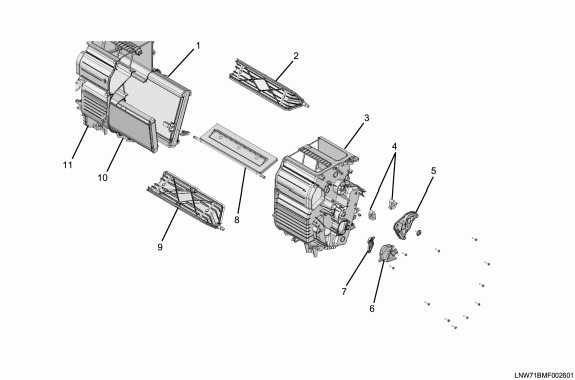

Components






Legend
(1) Evaporator Core (with A/C)
(2) Mode Door (FACE)
(3) Heater Unit Case (LH)
(4) Door Lever
(5) Mode Lever
(6) Fin Sensor Cover
(7) Mix Lever
(8) Air Mix Door
(9) Mode Door (FOOT/DEF)
(10) Heater Core
(11) Heater Unit Case (RH)
