Removal

Blower Motor

Removal

1. Remove the lower cover.
- Remove the resin clip of the lower cover, pull the panel forward and disconnect the clip on the reverse side.

2. Remove the side cover (passenger side).
- Remove the resin clip of the side cover (passenger side), pull the panel forward and disconnect the clip on the reverse side.

3. Remove the washer tank.
- Remove the nut and bolt from the washer tank and disconnect the connector.

4. Remove the blower motor ASM.
- Disconnect the blower motor connector.

Inspection

Blower Motor

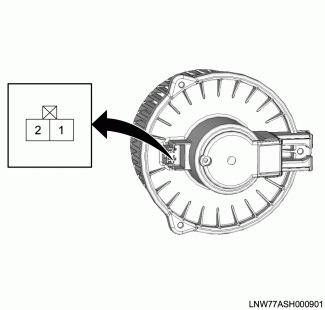

5. Remove the connector of the blower motor.
6. Connect the battery positive terminal to the No.2 terminal of the blower motor and negative to the No.1.
7. Check the ensure that the blower motor functions normally.
