Condenser HVAC
>>
Locations
Condenser HVAC: Locations

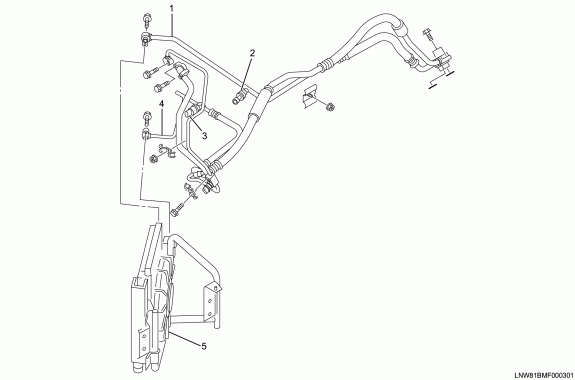

Condenser ASM
Components
Legend
(1)
High Pressure Pipe
(2)
Pressure Sensor
(3)
Pressure Switch
(4)
Low Pressure Pipe
(5)
Condenser ASM (Receiver/Tank Unit)
