Powertrain Management: Locations

Engine Controls Component Views

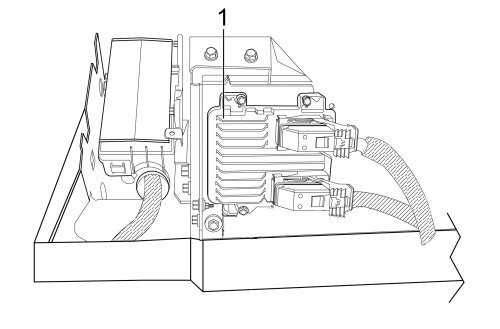

Engine Control Module (ECM)






Legend
(1) Engine Control Module (ECM)

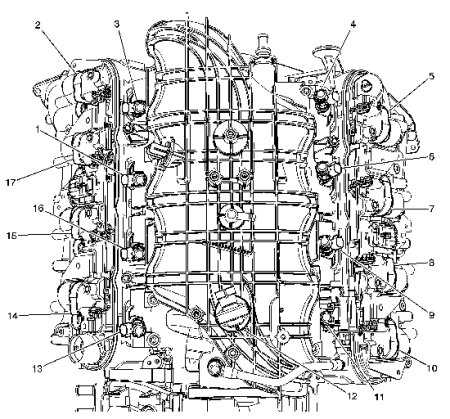

Top of the Engine






Legend
(1) Fuel Injector 6
(2) Ignition Coil 8
(3) Fuel Injector 8
(4) Fuel Injector 7
(5) Ignition Coil 7
(6) Fuel Injector 5
(7) Ignition Coil 5
(8) Ignition Coil 3
(9) Fuel Injector 3
(10) Ignition Coil 1
(11) Fuel Injector 1
(12) Manifold Absolute Pressure (MAP) Sensor
(13) Fuel Injector 2
(14) Ignition Coil 2
(15) Ignition Coil 4
(16) Fuel Injector 4
(17) Ignition Coil 6

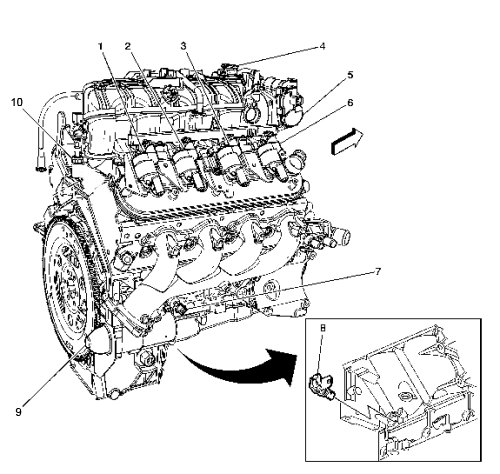

Right Side of Engine






Legend
(1) Ignition Coil 8
(2) Ignition Coil 6
(3) Ignition Coil 4
(4) Manifold Absolute Pressure (MAP) Sensor
(5) Throttle Body
(6) Ignition Coil 2
(7) Knock Sensor (KS) - 2
(8) Crankshaft Position (CKP) Sensor
(9) Starter
(10) Engine Oil Pressure Sensor

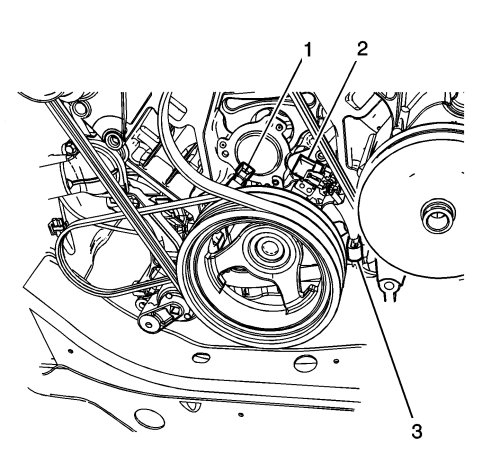

Lower Front of Engine






Legend
(1) Camshaft Actuator Magnet
(2) Camshaft Position (CMP) Sensor
(3) Harness Connector

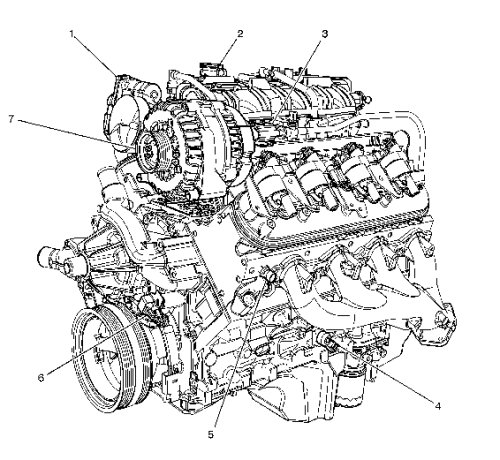

Front of Engine






Legend
(1) Throttle Body
(2) Manifold Absolute Pressure (MAP) Sensor
(3) Evaporative Emission (EVAP) Canister Purge Solenoid Valve
(4) Knock Sensor (KS) -1
(5) Engine Coolant Temperature (ECT) Sensor
(6) Camshaft Position (CMP) Sensor
(7) Generator

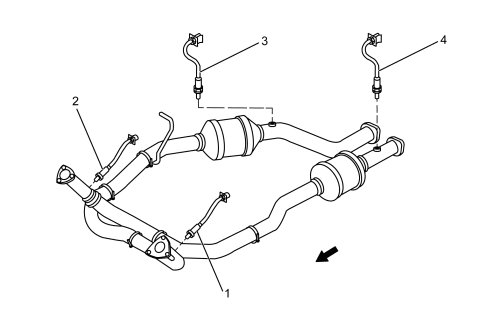

Heated Oxygen (HO2S) Sensors






Legend
(1) Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
(2) Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
(3) Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2
(4) Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2

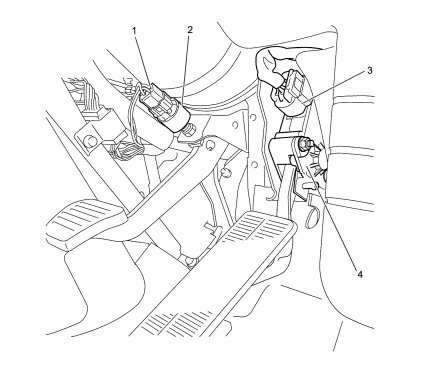

Accelerator and Brake Pedals






Legend
(1) Stop Lamp Switch Connector
(2) Stop Lamp Switch
(3) APP Sensor Connector
(4) APP Sensor

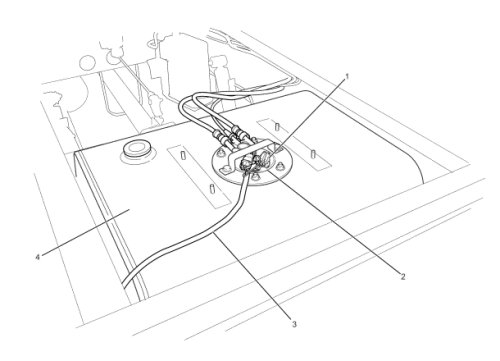

Fuel Tank






Legend
(1) FTP Sensor
(2) Fuel Pump and Sensor Assembly
(3) Chassis Harness
(4) Fuel Tank
