Anti-Lock Brakes

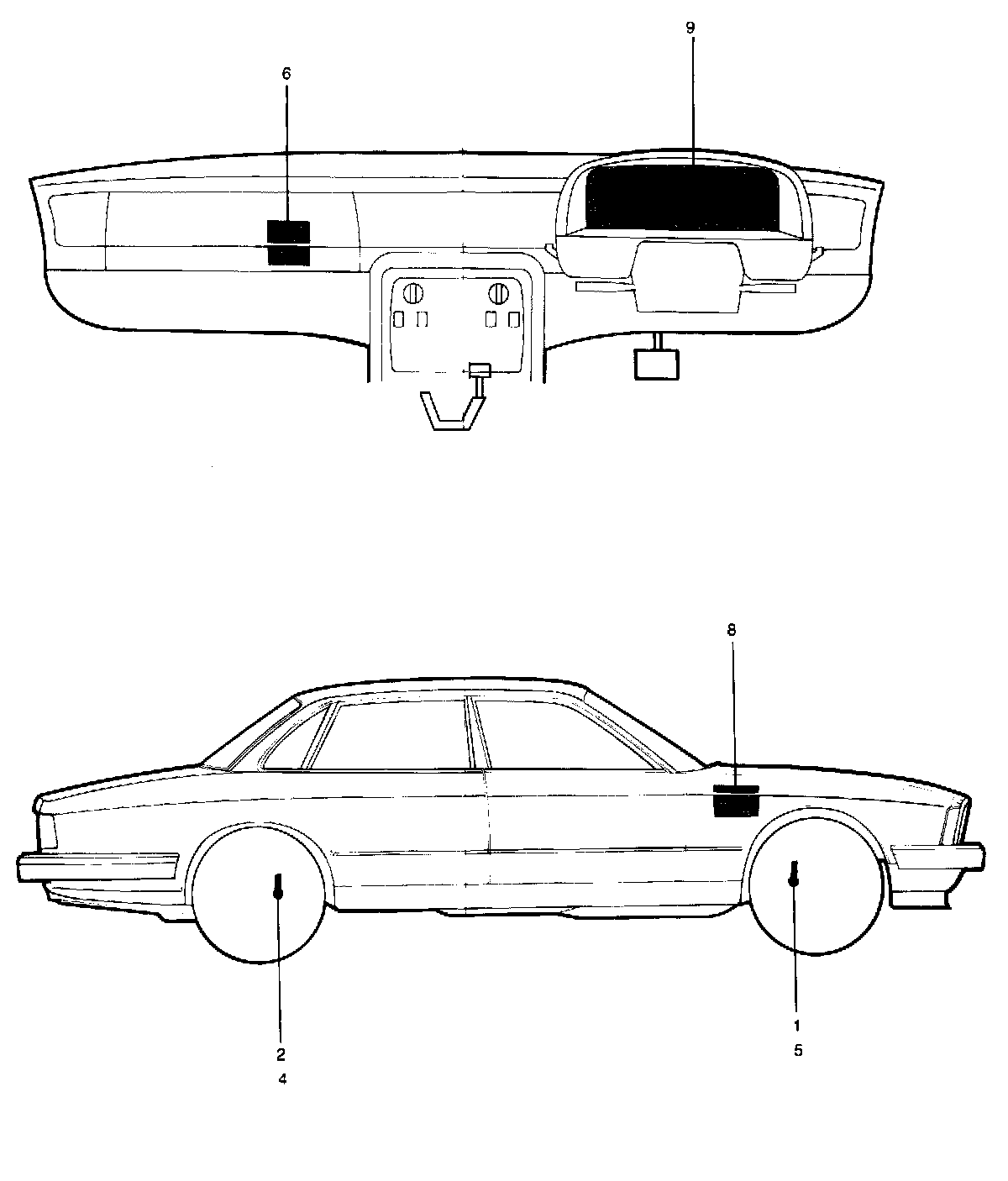

Anti-lock Brakes:
LEGEND 1 RH front wheel speed sensor.
2 RH rear wheel speed sensor.
4 LH rear wheel speed sensor.
5 LH front wheel speed sensor.
6 ECU.
8 Modulator.
8.1 Pump motor.
8.2 Pump relay.
8.3 Valve relay.
8.4 RH front solenoid.
8.5 Rear valve solenoid.
8.6 LH front solenoid.
9 Hazard warning signal to instruments.
