Caravan & Towing

Caravan & Towing:

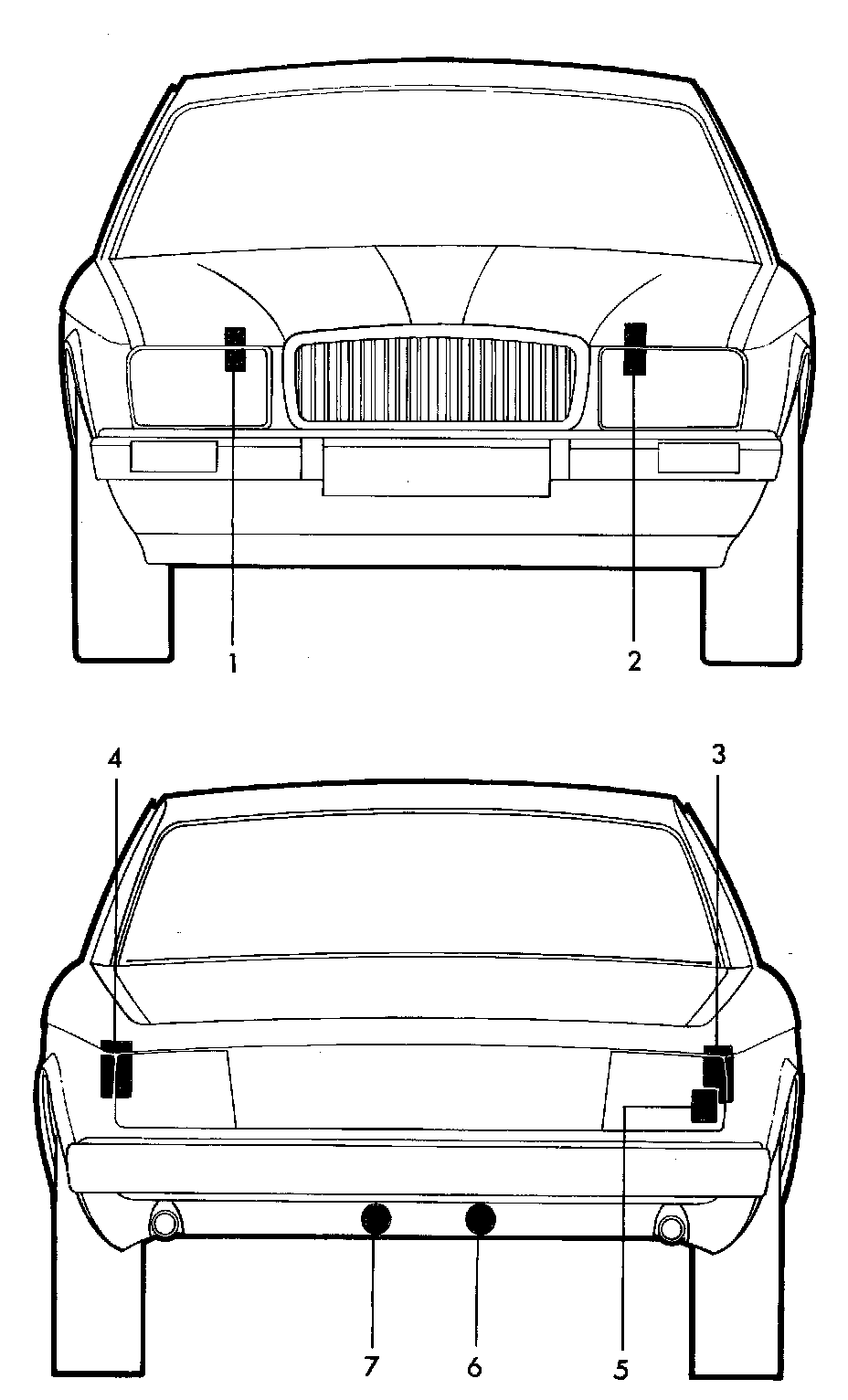

LEGEND
1 RH front bulb failure module.
2 LH front bulb failure module.
3 RH rear bulb failure module.
4 LH rear bulb failure module.
5 Caravan/trailer module.
6 Black N type socket.
6.1 LH directional indicator.
6.2 Rear fog.
6.3 Chassis earth.
6.4 RH directional indicator.
6.5 RH tail number plate lamps.
6.6 Stop lamp.
6.7 LH tail number plate lamps.
6.8 Socket switch.
7 Grey S type socket.
7.1 Reverse lamp.
7.2 Spare.
7.3 Chassis earth.
7.4 Split charge.
7.5 Spare.
7.6 Aux 2.
7.7 Aux 1.
