Direction Indicators & Hazard Warning

Direction Indicators & Hazard Warning:




Direction Indicators & Hazard Warning:

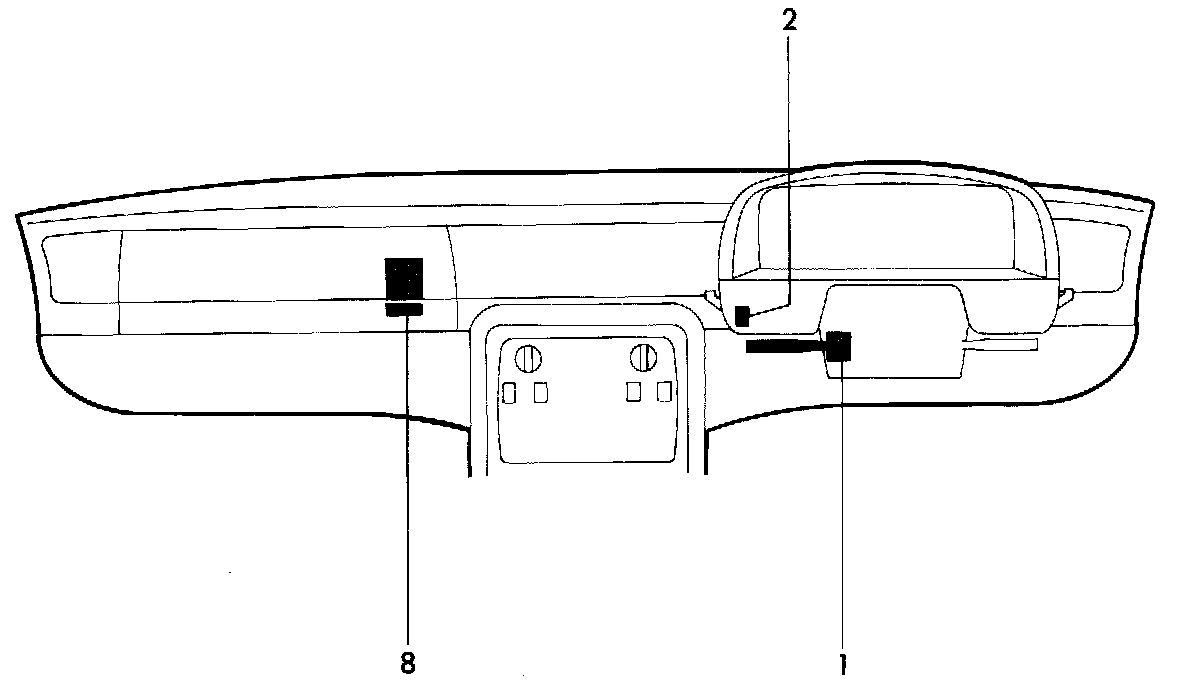

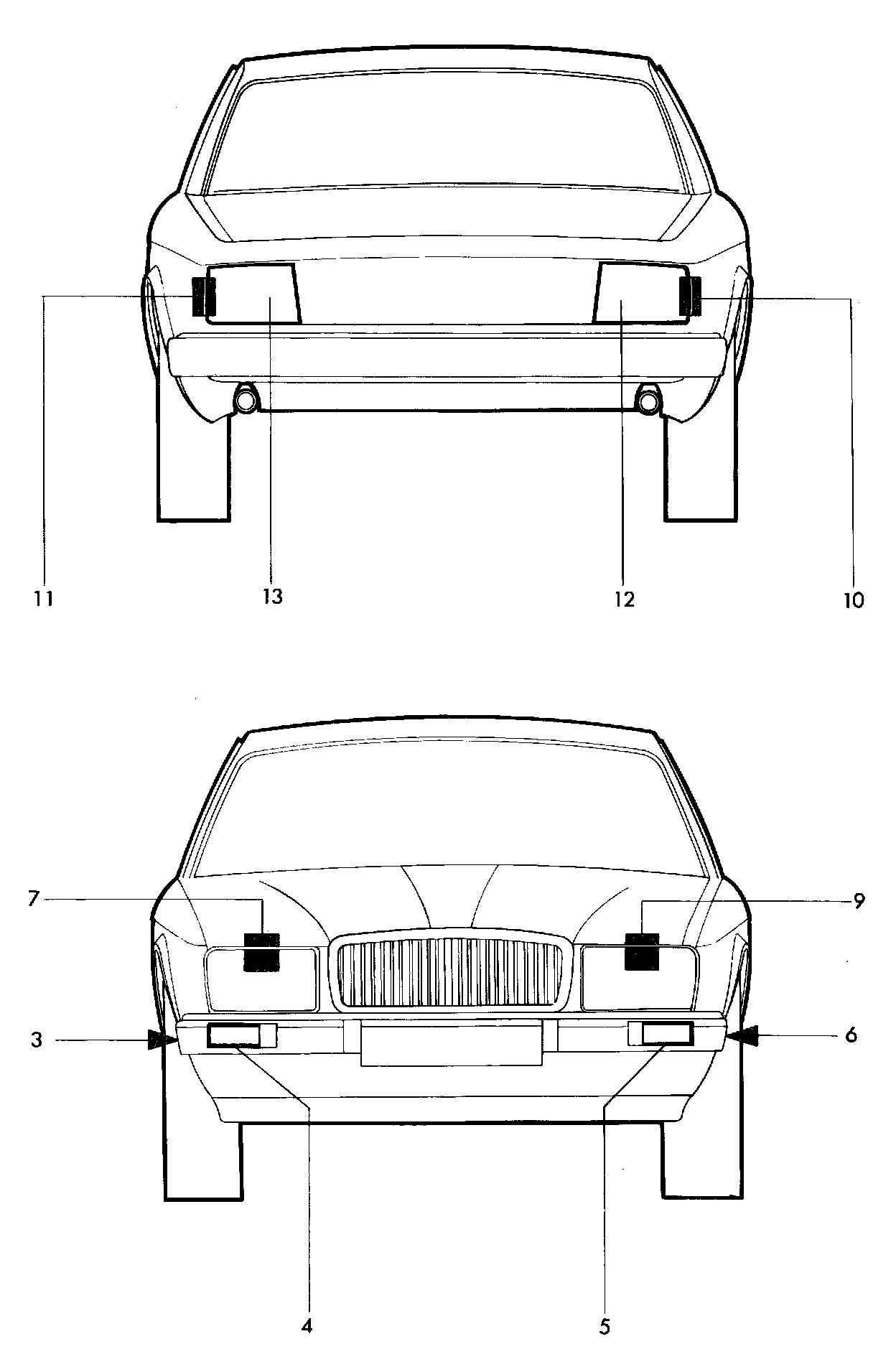

LEGEND
1 Indicator switch assembly.
1.1 Direction indicator switch.
1.2 Cancellation module.
2 Hazard warning switch assembly.
2.1 Hazard switch.
2.2 Hazard switch status LED.
3 RH repeater lamp.
4 RH front direction indicator lamp.
5 LH front direction indicator lamp.
6 LH repeater lamp.
7 RH front bulb fail module.
7.1 Bulb fail logic.
8 CPU.
8.1 DI/hazard logic & solid state switch.
9 LH front bulb fail module.
9.1 Bulb fail logic.
10 RH rear bulb fail module.
10.1 Bulb fail logic.
11 LH rear bulb fail module.
11.1 Bulb fail logic.
12 RH rear direction indicator lamp.
13 LH rear direction indicator lamp.
