Doorlock / Screen / Power Wash Heaters

Doorlock / Screen / Power Wash Heaters:

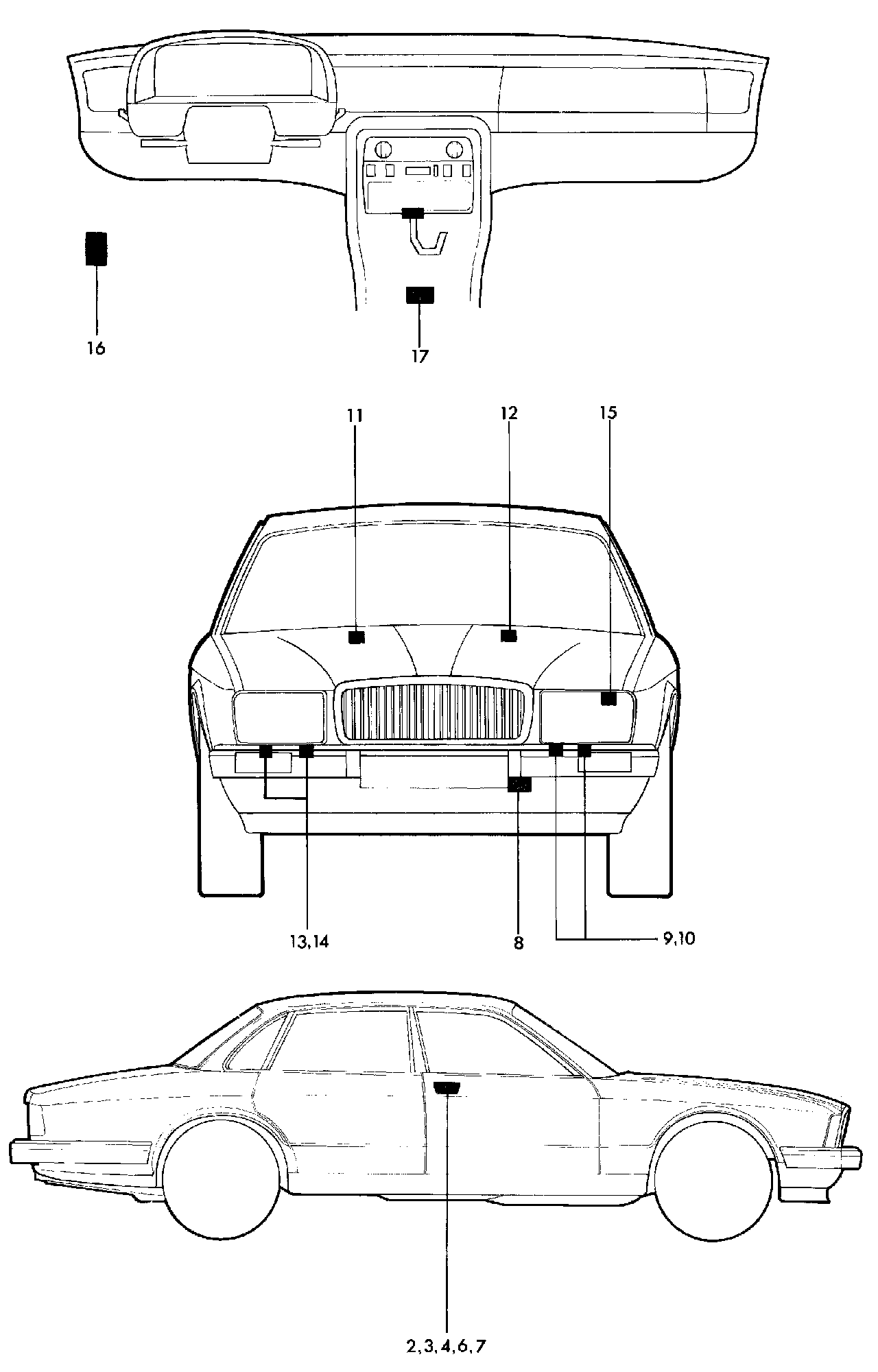

LEGEND
2 Drivers heated door lock switch.
3 Passenger heated door lock switch.
4 Drivers heated door lock thermostat.
6 Driver heated door lock heater.
7 Passenger heated door lock heater.
8 Jet heater sensor.
9 LH power wash heater.
10 LH power wash heater.
11 RH screen wash heater.
12 LH screen wash heater.
13 RH power wash heater.
14 RH power wash heater.
15 Breather pipe heater relay.
16 Fuse 10 LH fuse box.
17 Fuse 3 centre fuse box.
