Hazard Fault Display - Instrument Pack

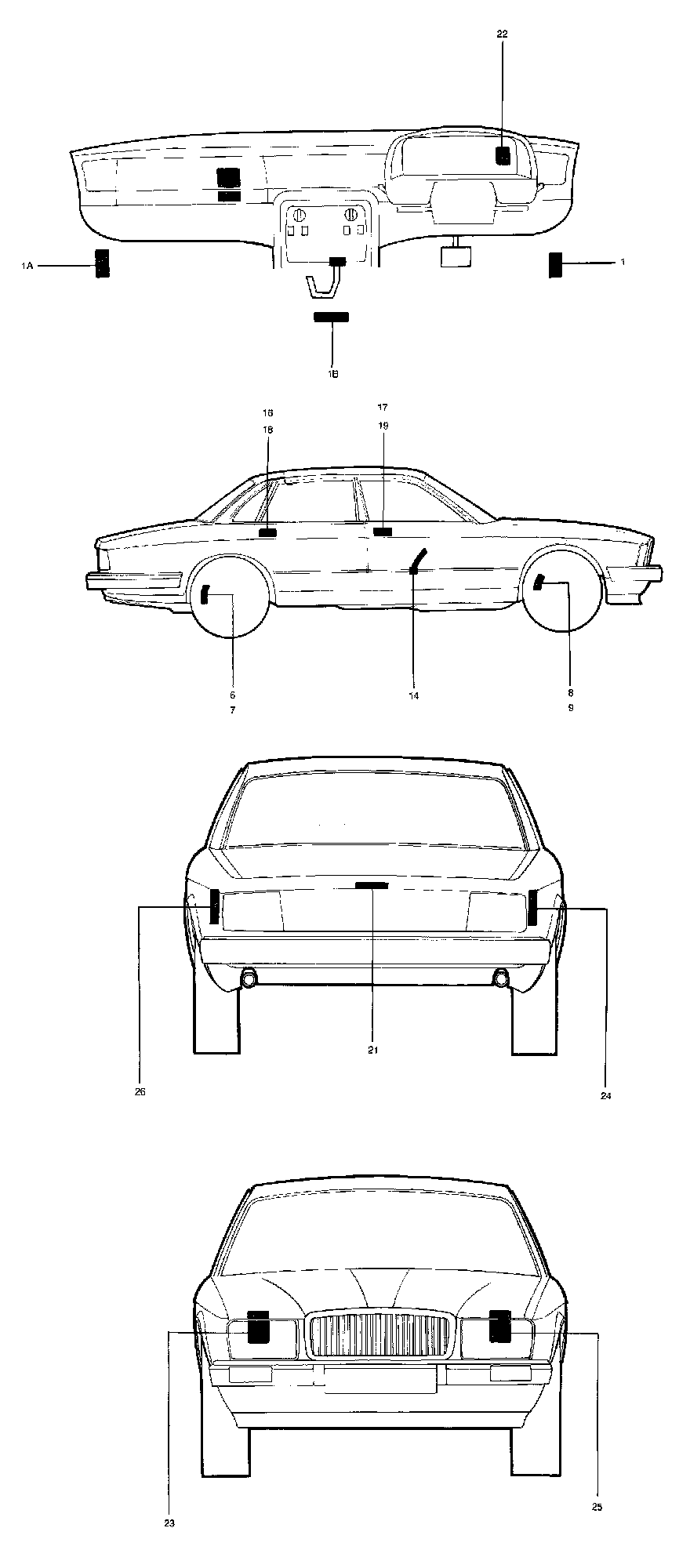

Hazard Fault Display - Instrument Pack (Late 1988 On):




LEGEND
1 RH fuse box.
1A LH fuse box.
1B Centre fuse box.
6 RH rear brake pad.
7 LH rear brake pad.
8 RH front brake pad.
9 LH front brake pad.
14 RH rear door switch.
16 LH rear door switch.
17 Passengers side door switch.
18 Power brake fluid sensor.
19 Boot open switch.
21 VCM.
22 RH front bulb fail module.
23 RH rear bulb fail module.
24 LH front bulb fail module.
25 LH rear bulb fail module.
26 Ignition relay.
