Instrument Lights

Instrument Lights (1988):

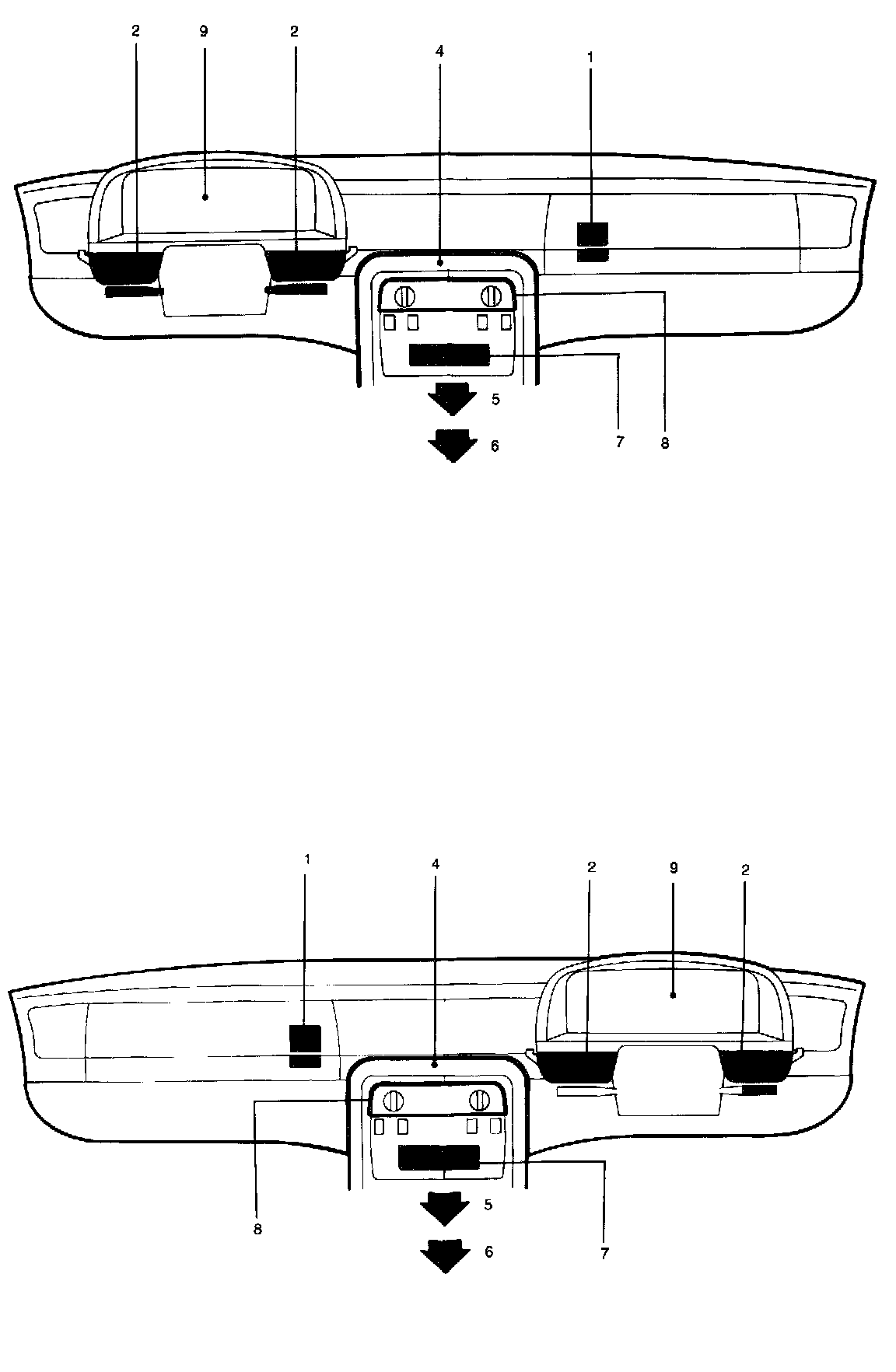

LEGEND
1 CPU.
1.1 Timer.
2 Fascia switch pack.
2.1 Trip computer keyboard illumination switch.
2.2 Master light panel illumination bulb.
2.3 Front foglamp switch illumination LED.
2.4 Rear foglamp switch illumination LED.
2.5 Hazard warning switch illumination LED.
2.6 Speed control panel illumination bulb.
2.7 Trip computer keyboard illumination bulb.
2.8 Lighting logic.
4 Centre console.
4.1 Heated rear window locate LED
4.2 Map light switch locate LED.
4.3 Interior light switch locate LED.
4.4 Central locking switch locate LED.
5 Front cigar lighter illumination.
6 Rear cigar lighter illumination.
7 Radio/cassette.
8 Air con/heater control panel.
9 Instrument pack.
9.1 Speedo/tacho illumination bulb.
9.2 Dimmer override.
9.3 Vacuum fluorescent tube.
