Instrument Normal Displays

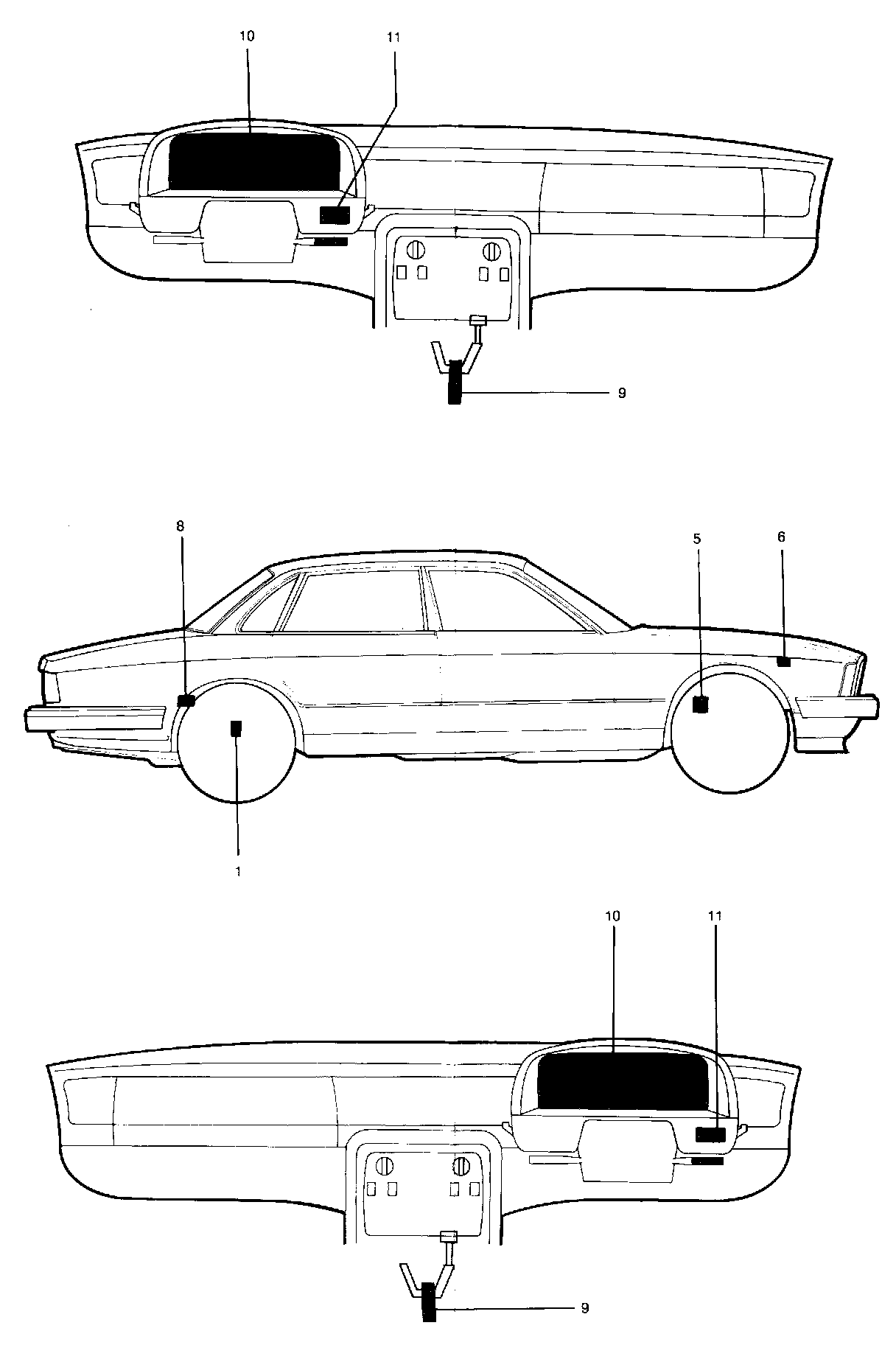

Instrument Normal Displays (1988):

LEGEND
5 Oil pressure transmitter.
6 Coolant temperature transmitter.
8 Fuel level transmitter.
9 Linear gearbox selector.
9.1 "2" indicator switch.
9.2 "3" indicator switch.
9.3 "D" indicator switch.
9.4 "N" indicator switch.
9.5 "R" indicator switch.
9.6 "P" indicator switch.
10 Instrument pack.
10.1 Speedometer.
10.2 Battery condition indicator.
10.3 Tachometer.
10.4 Right turn indicator.
10.5 Oil pressure indicator.
10.6 Left turn indicator.
10.7 Coolant temperature indicator.
10.8 Caravan/trailer indicator.
10.9 Headlamp main beam indicator.
10.10 Fuel level indicator.
10.11 Gear "2" indicator.
10.12 Gear "3" indicator.
10.13 Gear "D" indicator.
10.14 Gear "N" indicator.
10.15 Gear "R" indicator.
10.16 Gear "P" indicator.
10.17 Processor.
10.18 VCM.
11 Trip computer keyboard.
11.1 Time switch.
11.2 100 switch.
11.3 Clear switch.
11.4 Fuel switch.
11.5 10 switch.
11.6 VCM
11.7 Distance switch.
11.8 1 switch.
11.9 M/C
11.10 MPH/KPM.
