Passive Restraint System

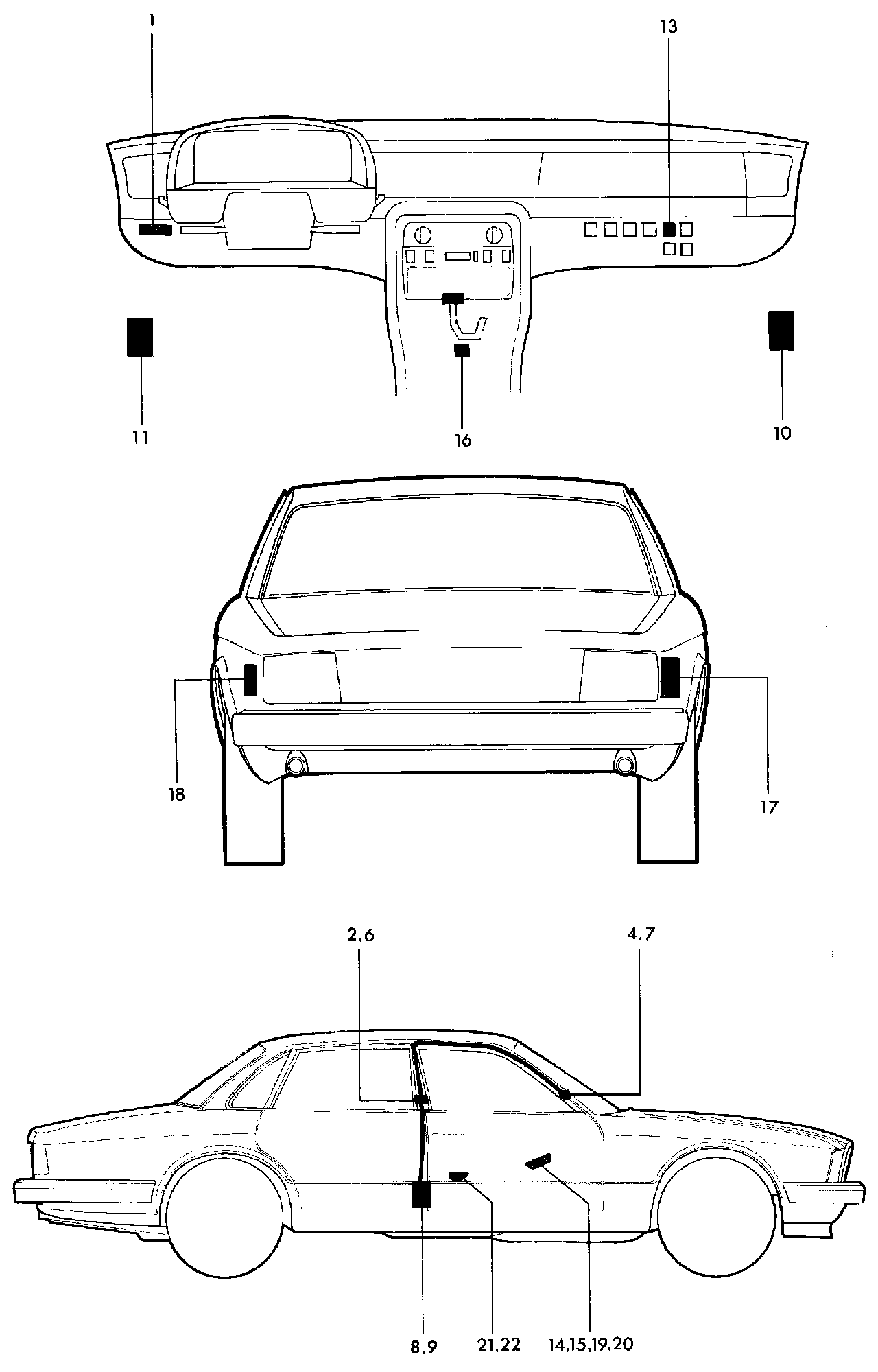

Passive Restraint System:

LEGEND
1 Passive restraint module.
2 LH rear dock switch.
4 LH front dock switch.
6 RH rear dock switch.
7 RH front dock switch.
8 RH motor.
9 LH motor.
10 RH fusebox fuse 9.
11 LH fusebox fuse 9.
13 Seat adjust relay.
14 Passenger door panel.
15 Front passenger door switch.
16 Auto gear select switch.
17 RH rear bulb fail module.
18 LH rear bulb fail module.
19 Drivers door panel.
20 Drivers door switch.
21 Passenger door light.
22 Drivers door light.
