Passive Restraint Warning Lights

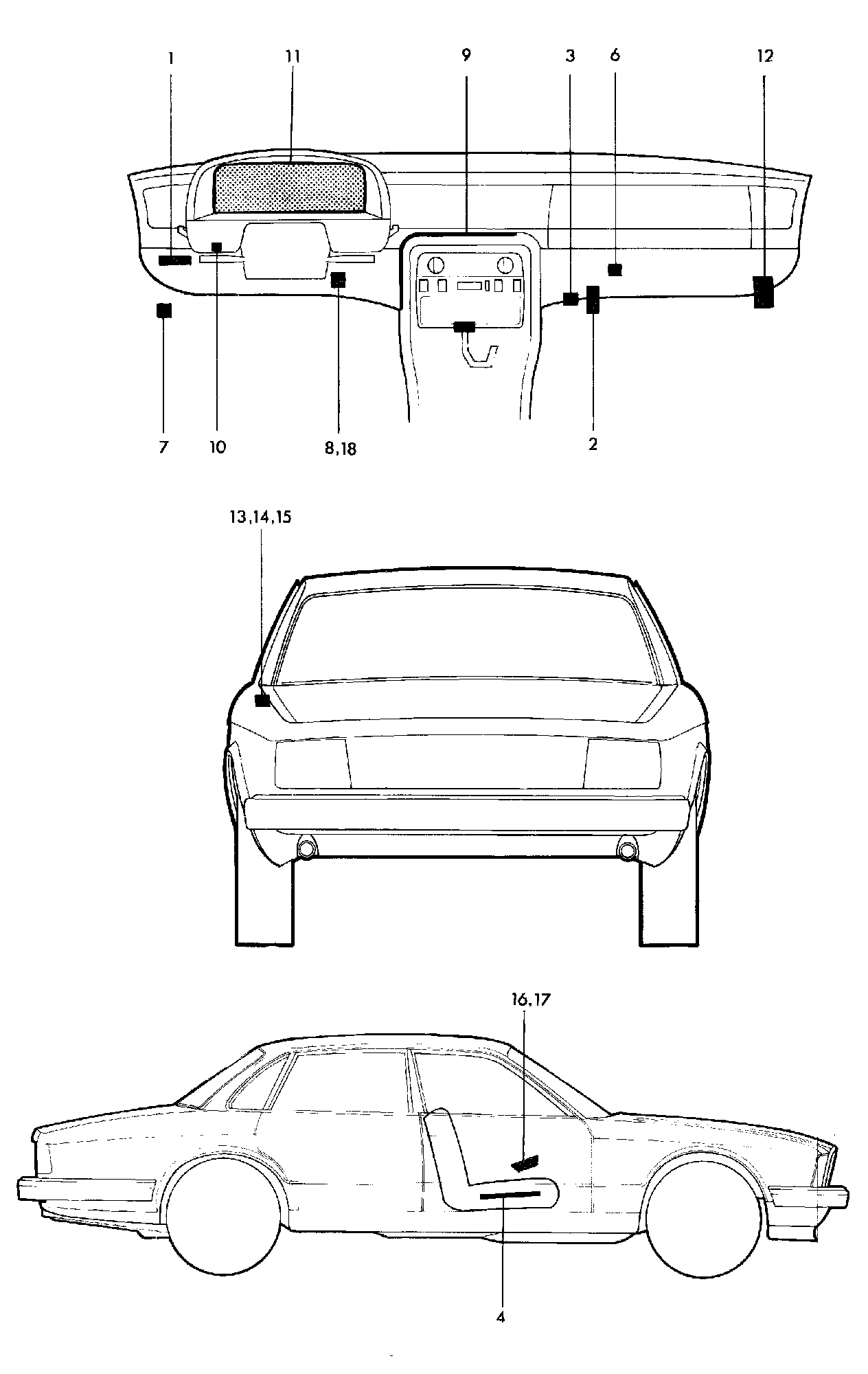

Passive Restraint Warning Lights:

LEGEND
1 Passive restraint module.
2 CPU.
3 Audible warning module.
4 Drivers seat pad switch.
6 Ignition on relay.
7 Inertia switch.
8 Ignition switch.
9 Centre console.
10 Seat belt warning light.
11 Instrument pack.
12 Door lock unit.
13 Fuel filter relay.
14 Fuel flap interface.
15 Manual lock/unlock switch.
16 Passenger door switch.
17 Drivers door switch.
18 Key insert switch.
