Power Hydraulics
Power Hydraulics:

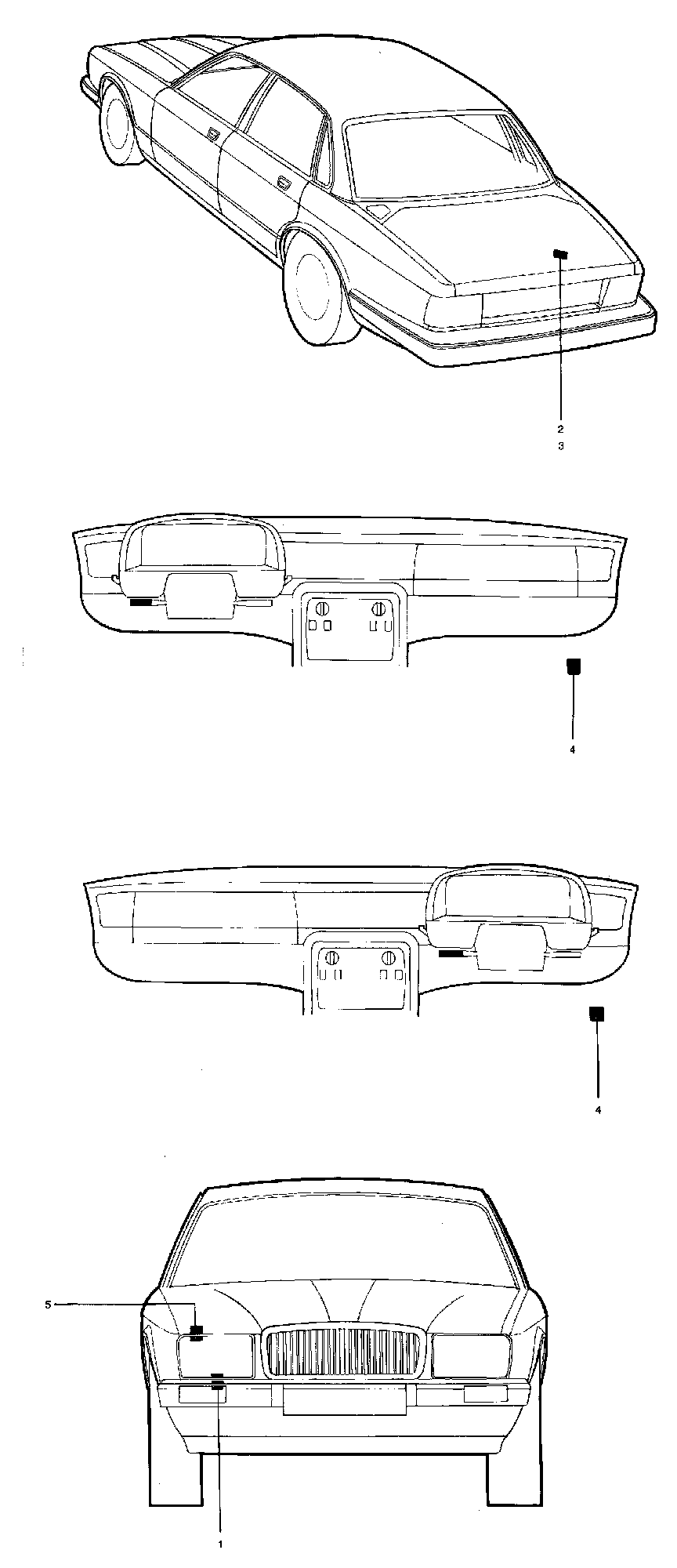

LEGEND 1 Charge switch assembly.
1.1 Low pressure warning switch.
1.2 Low charge switch.
2 Ride height lever.
3 Ride height sensor.
4 Suspension relay.
5 Valve block.
5.1 Down solenoid.
5.2 Up solenoid.
5.3 Load solenoid.
