Powered Door / Boot / Fuel Filter Locks

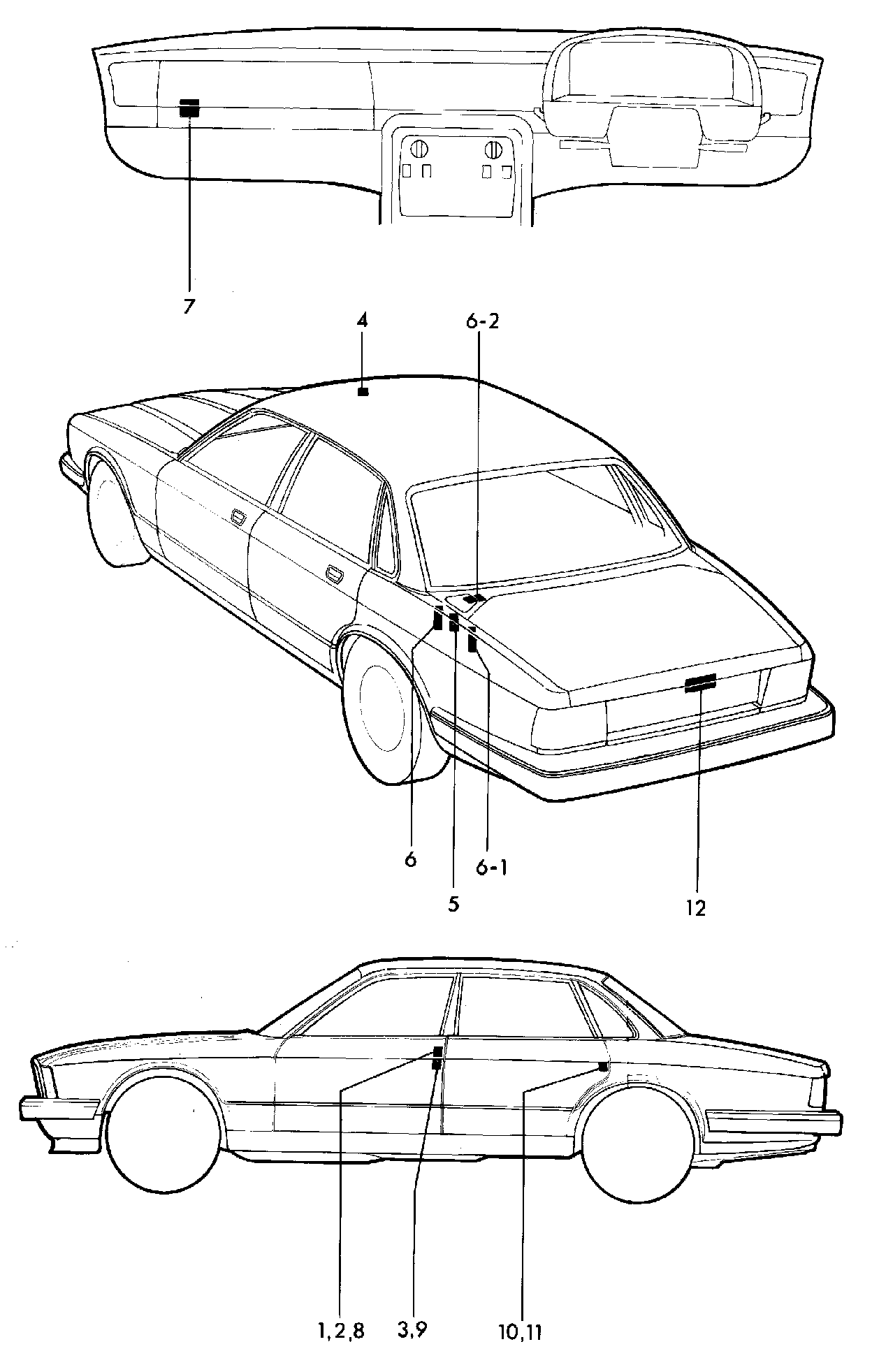

Powered Door / Boot / Fuel Filter Locks - Infra-red (1989):




LEGEND
1 Drivers door lock/unlock switch.
2 Manual lock/unlock switch (NOT USED).
3 Passenger door lock/unlock switch.
4 Infra-red receiver.
5 Filler cap relay.
6 Filler cap control.
6.1 Filler cap interface circuit.
6.2 Filler cap solenoid.
7 Door lock/unlock control unit.
8 Drivers door lock motor.
9 Passenger door lock motor.
10 LH rear door lock motor.
11 RH rear door lock motor.
12 Boot lock/unlock motor.
