Radio Cassette

Radio Cassette:

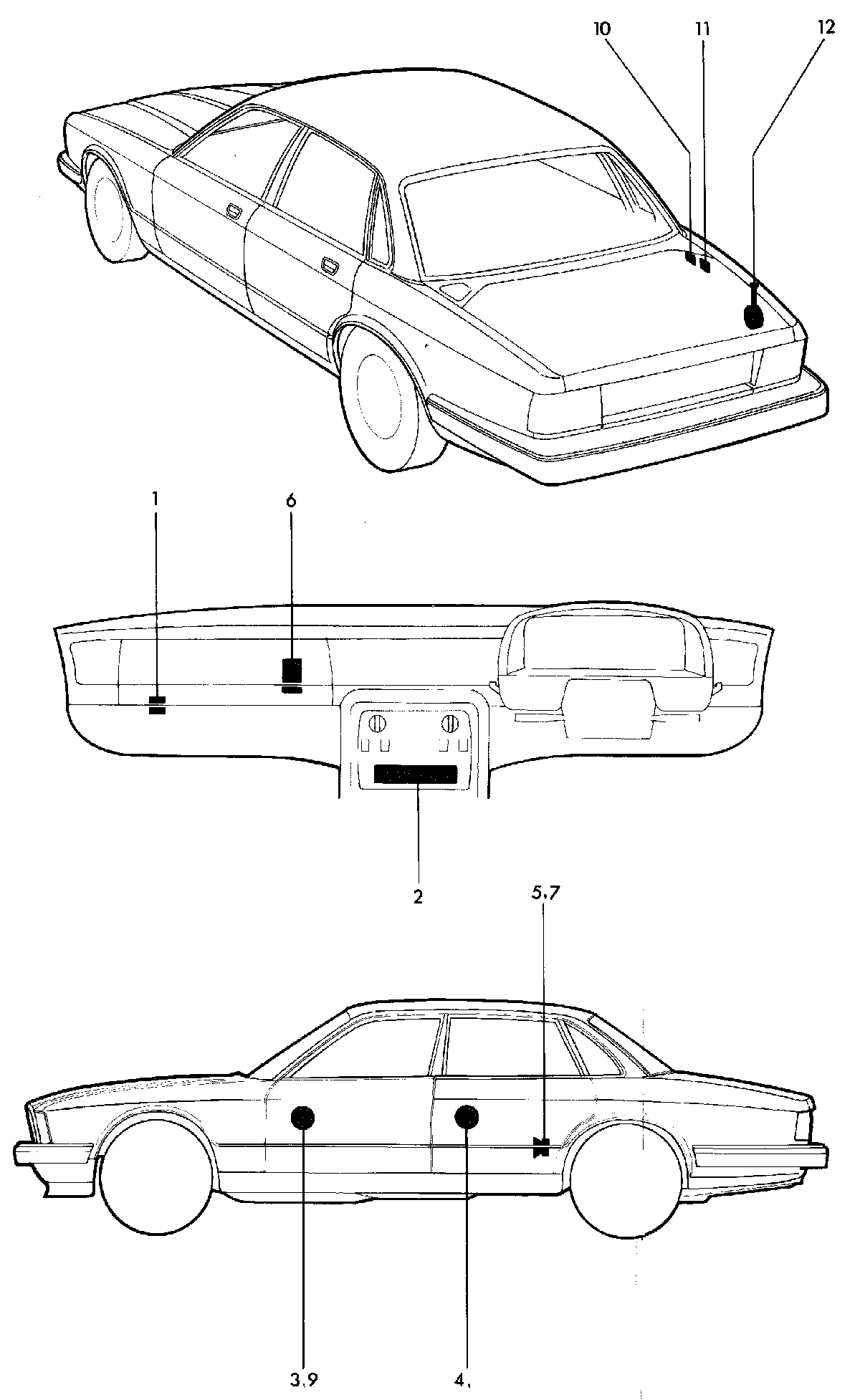

LEGEND
1 Radio relay.
2 Radio cassette.
3 RH front door speaker.
4 RH rear door speaker.
5 Rear speaker.
6 CPU.
6.1 Aerial up timer.
6.2 Aerial down timer.
7 LH rear speaker.
9 LH front door speaker.
10 Aerial up relay.
11 Aerial down relay.
12 Aerial.
