Wipers / Screen Washers / Headlamp Power wash

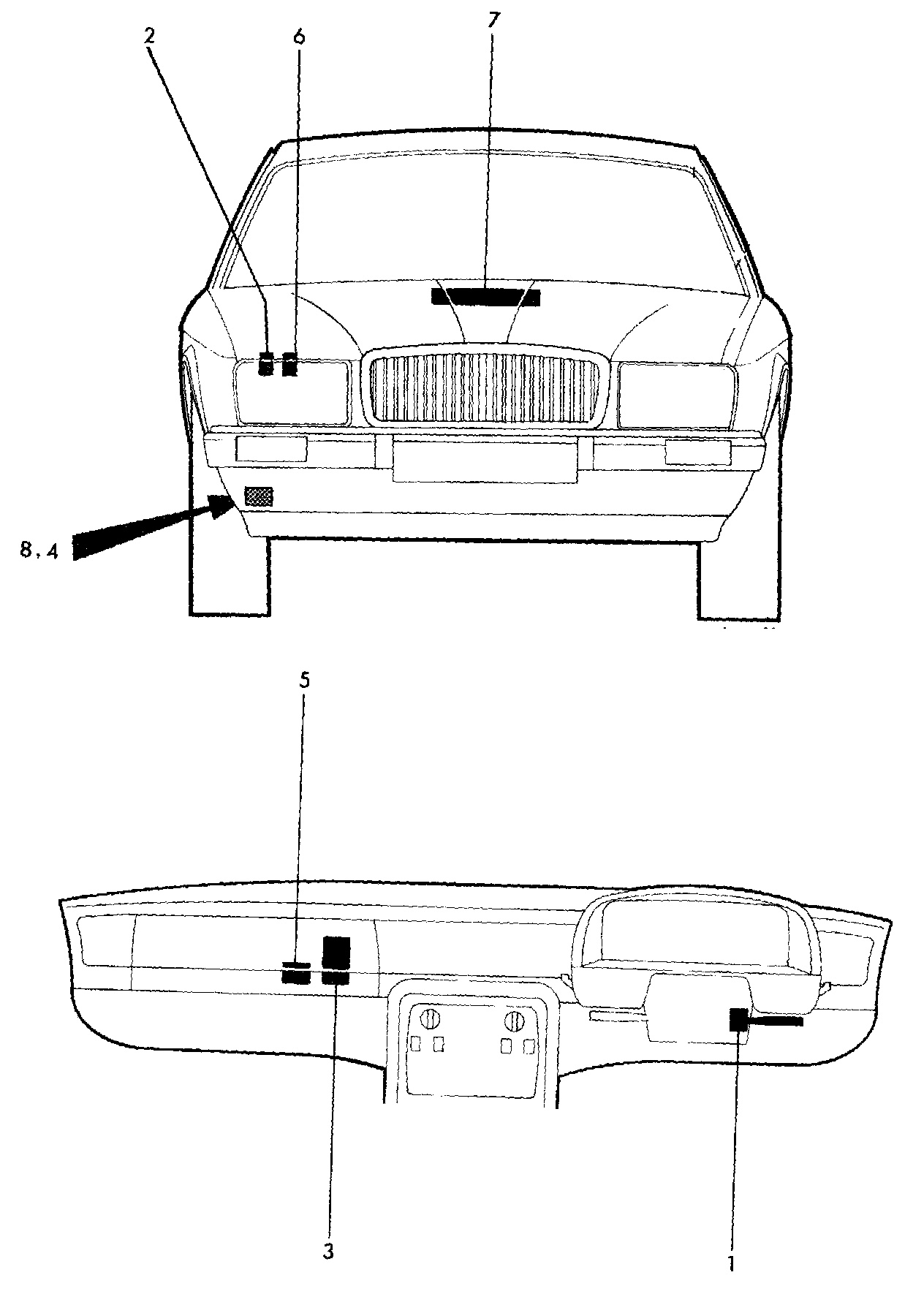

Wipers / Screen Washers / Headlamp Powerwash (Late 1988):

LEGEND
1 Wiper switch.
1.1 Fast wipe.
1.2 Slow/flick wipe.
1.3 Delay wipe.
1.4 Washer switch.
2 Screen wash relay.
3 CPU.
4 Screen washer pump.
5 Wiper logic module.
6 Power wash relay.
7 Wiper motor.
8 Power wash pump.
